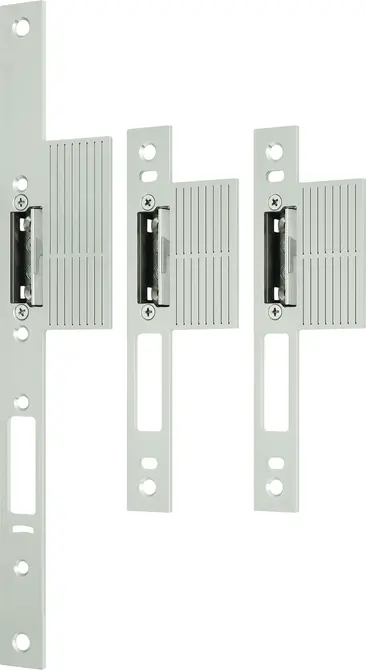

Face plate for passive leaf lock 24413-M-STL

Note

  • Set
Technical data
Area of applicationMetal
SurfaceBrush-finished matt
Dimension320x24/60x3
DIN directioncan be used left or right
Forend shapesquare, flange
MaterialInox
Downloads for Product

General

Product sheet Face plate for passive leaf lock 24413-M-STL (PDF)

Certificates and attests

Certificate of constancy of performance EN 1125 FlipLock (PDF, 397 KB)

Medias

Product image (JPG, 243 KB)
Product image (EPS, 10.50 MB)

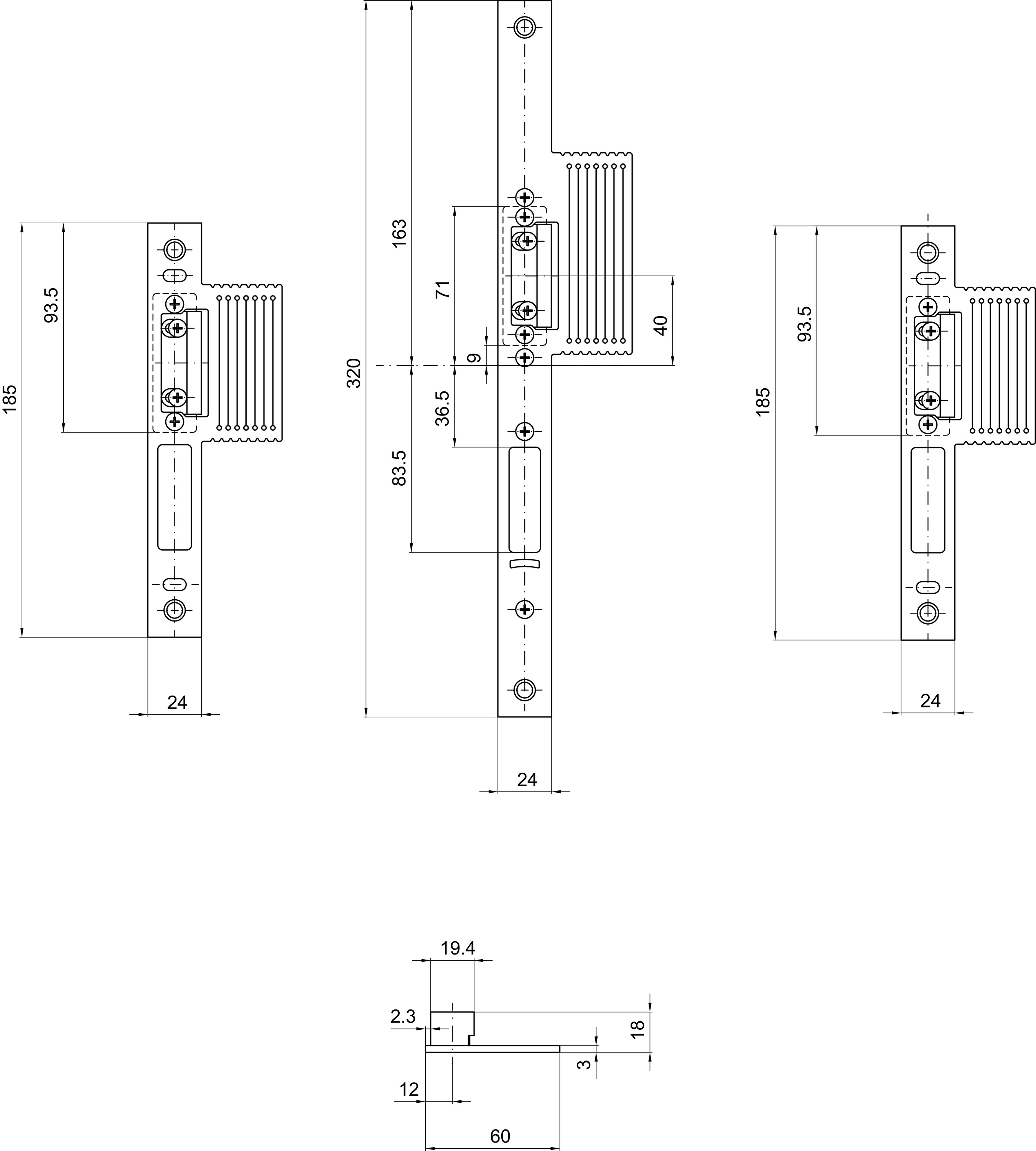

Technical drawing (JPG, 332 KB)
Technical drawing (EPS, 2.26 MB)
