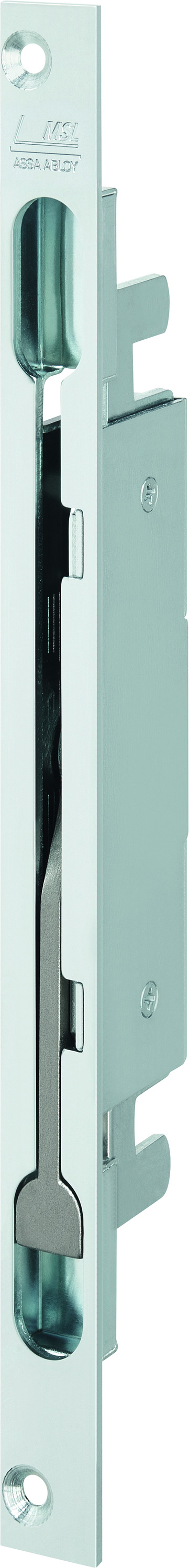

Mortise lever flush bolt 1808 1808

Overview of Advantages

  • DIN left and right usable

Product description

  • Manual locking and opening of the passive leaf.

Area of Application

  • For wood doors
Technical data
Surfacegalvanized
MaterialSteel
Variants that can be ordered
Order number
Description
120020051808/30/20e, FE Z1
120020071808/30/20r, FE Z1
120020091808/30/24e, FE Z1
Accessories/Individual parts

Order number
Product
Square rod 1824
1824_Square rod 1824
Bar guide 1826
1826.008Bar guide 1826
Bar guide 1826
1826.010Bar guide 1826
End striking plate 1827
1827.008End striking plate 1827
End striking plate 1827
1827.010End striking plate 1827
Downloads for Product

General

Product sheet Mortise lever flush bolt 1808 1808 (PDF)

Drawings for Specification Documents

Downloads (DXF, 569 KB)

Medias

Product image (JPG, 221 KB)
Product image (EPS, 9.23 MB)
Technical drawing (JPG, 257 KB)
Technical drawing (EPS, 1.20 MB)
