Bar guide for bottom locking 1726 1726

for bottom locking

Product description

  • Bar guide for bottom locking
Technical data
Area of applicationWood
SurfaceMatt
Dimension60x20x3
Forend shaperounded
MaterialInox
Variants that can be ordered
Order number
Forend shape
Dimension
DIN-direction
12171004rounded60x20x3
12171011round60x20x3
Downloads for Product

General

Product sheet Bar guide for bottom locking 1726 1726 (PDF)

Certificates and attests

Certificate of constancy of performance EN 179 (PDF, 400 KB)
Certificate of constancy of performance EN 179 (PDF, 213 KB)
Certificate of constancy of performance EN 1125 FlipLock (PDF, 397 KB)
Approvals (PDF, 191 KB)
Approvals (PDF, 202 KB)

Drawings for Specification Documents

Downloads (DXF, 129 KB)

Medias

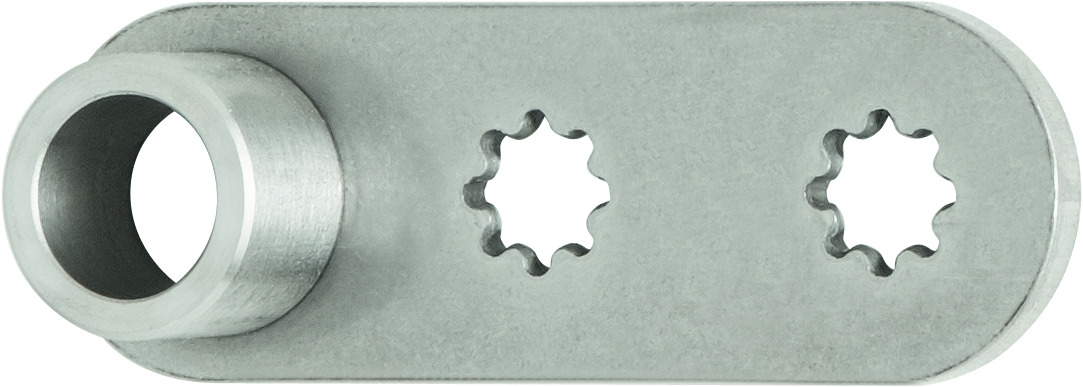

Product image (JPG, 126 KB)
Product image (EPS, 2.04 MB)

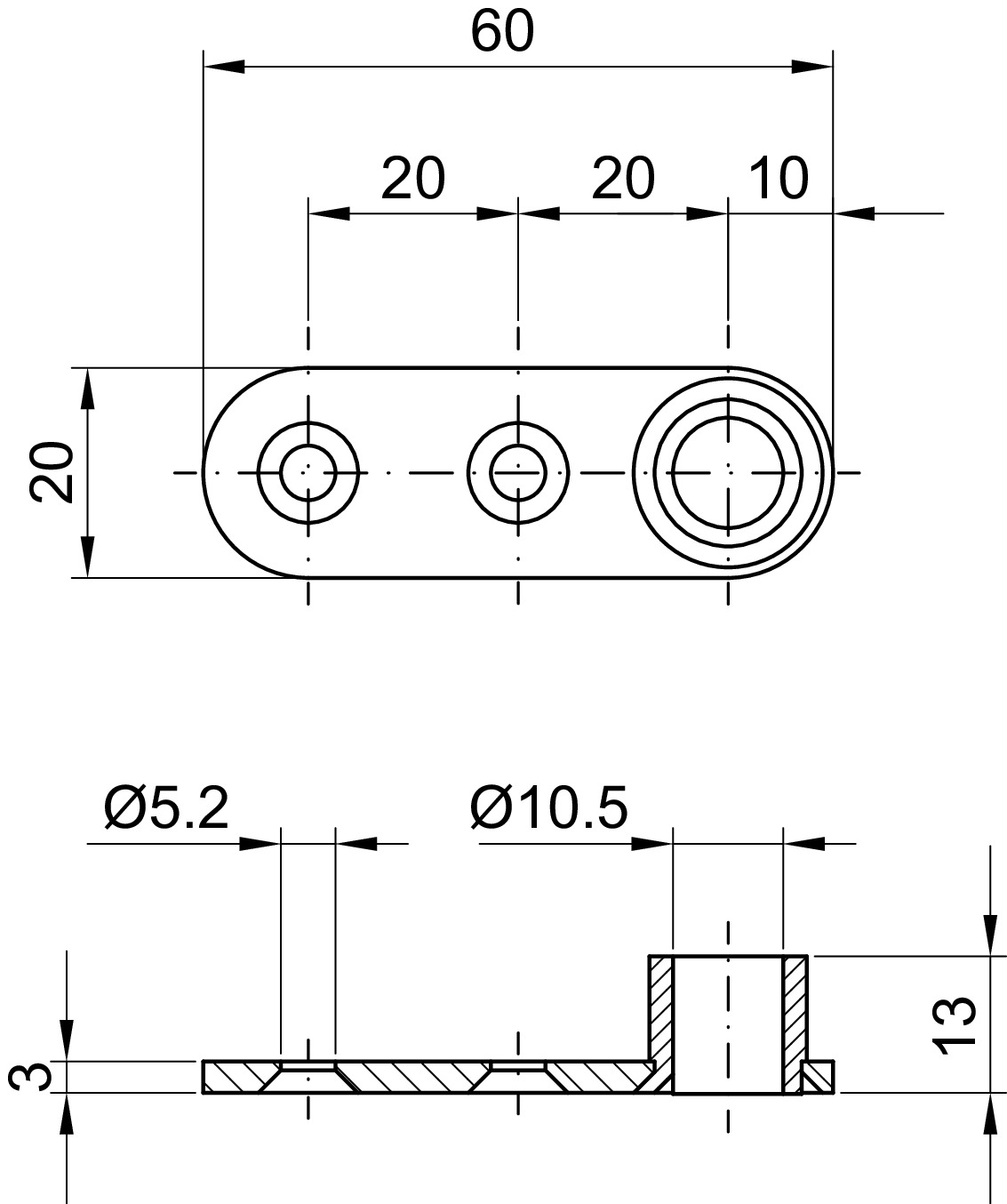

Technical drawing (JPG, 99 KB)
Technical drawing (EPS, 591 KB)
