Reinforcement set wood 24422-Holz

  • ArtNo: 14471278
  • EAN: 7630037155294

Note

  • Set
Technical data
MaterialInox
SurfaceBrush-finished matt
Dimension28 x 12 x 26
MountingU-shape, angle
Area of applicationWood
Downloads for Product

General

Product sheet Reinforcement set wood 24422-Holz (PDF)

Drawings for Specification Documents

Downloads (DXF, 335 KB)

Medias

Product image (JPG, 75 KB)
Product image (EPS, 1.76 MB)

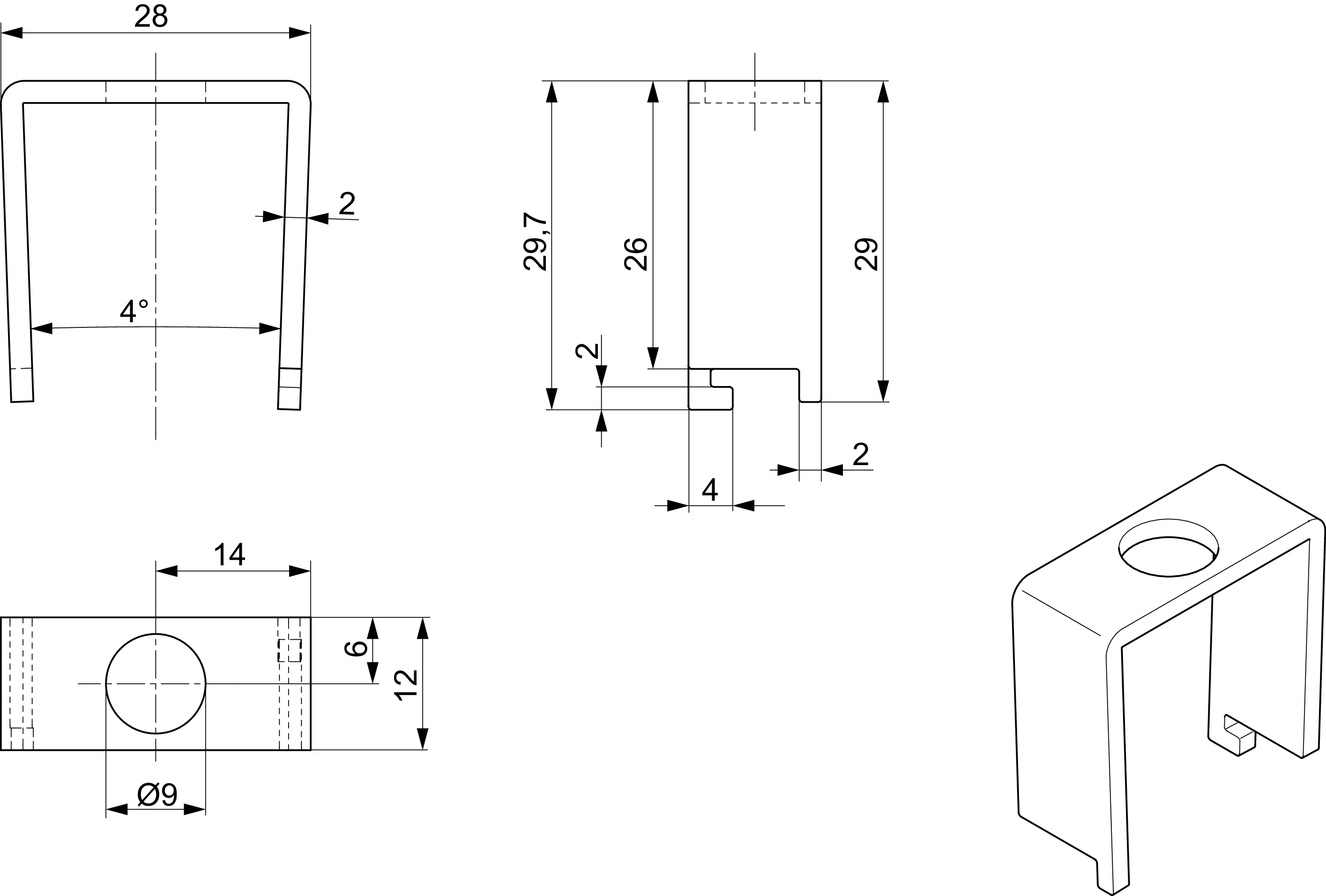

Technical drawing (JPG, 187 KB)
Technical drawing (EPS, 1.47 MB)
