Accessories EH-Exit Controller 828.10

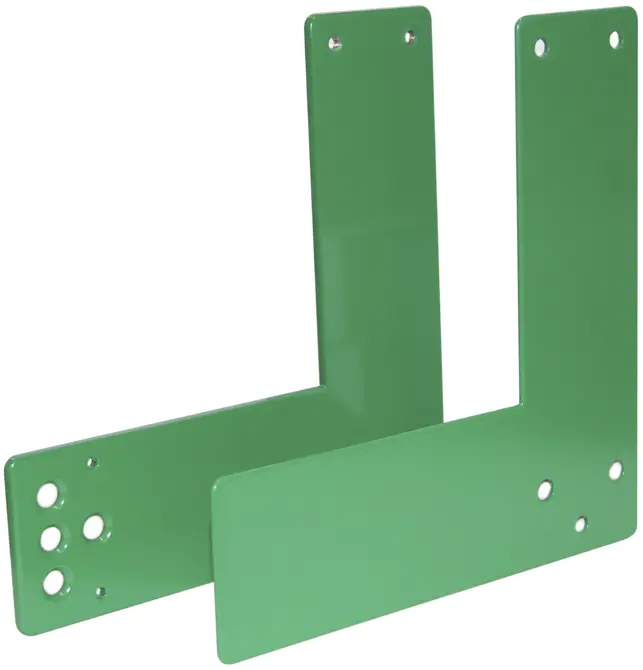

Mounting plate and spacer
Overview of Advantages
- Offset version with an offset of 30 mm or 50 mm
- Fire protection version
Area of Application
- Escape routes
- Solid leaf doors
- Tubular frame doors
- Glass frame doors
- Fire doors
- Doors with panic bars
| Material | Steel |
| Surface | green (RAL 6029) |
| Order number | Subtitle | Dimension | Mounting | DIN-direction |
|---|---|---|---|---|
| 14072001 | Mounting plate | 175x170x52 | L-shaped | Suitable for DIN left/right hand use |
| 14072002 | Mounting plate | 205x170x52 | L-shaped | Suitable for DIN left/right hand use |
| 14072003 | Mounting plate, offset | 175x170x52 | L-shape, offset 30 mm | Right |
| 14072004 | Mounting plate, offset | 175x170x52 | L-shape, offset 30 mm | Left |
| 14072005 | Mounting plate, offset | 175x170x52 | L-shape, offset 50 mm | Right |
| 14072006 | Mounting plate, offset | 175x170x52 | L-shape, offset 50 mm | Left |
| 14072007 | Fire protection mounting plate | 175x52 | Can be selected* | Suitable for DIN left/right hand use |
| 14072008 | Spacer | 175x50x30 | Can be selected* | Suitable for DIN left/right hand use |

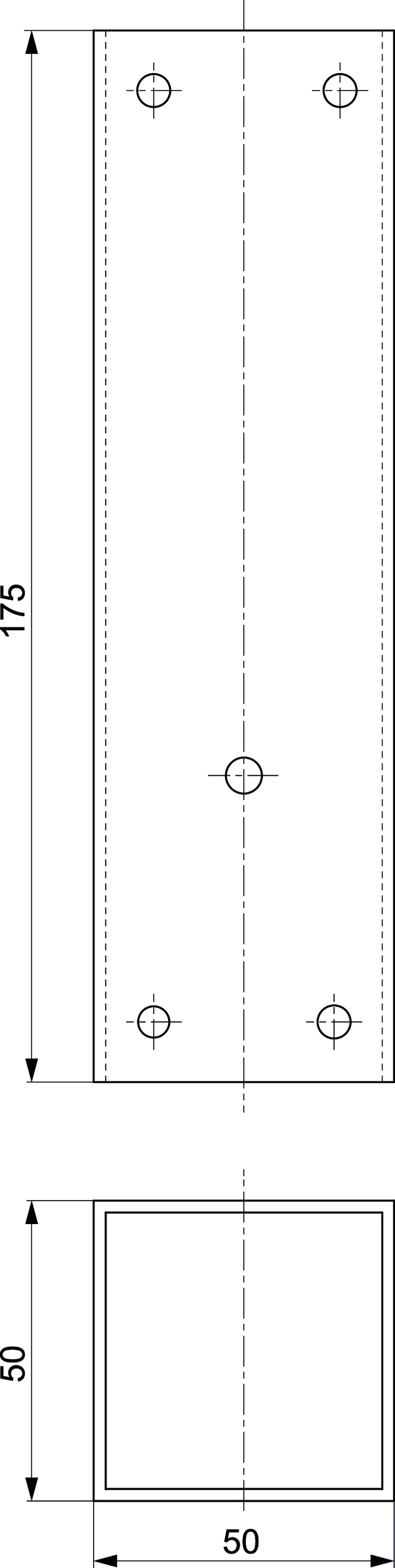

| 14072009 | Spacer | 175x50x50 | Can be selected* | Suitable for DIN left/right hand use |
