Mounting plate offset, 175mm, 828.103
Mounting plate, offset

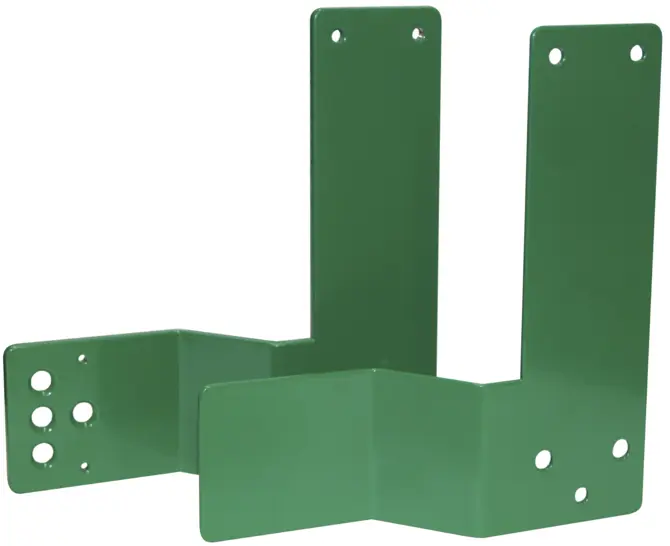

Product image Overview of Advantages
Product description
- Offset 30mm, for glass doors, with actuating bars,
invisible fixing
Area of Application
- Solid leaf doors
- Tubular frame doors
- Glass frame doors
- Doors with a panic bar
Note
- Offset, 30mm
- If the EH-Exit Controller is mounted on a panic bar, it should be mounted in the first third of the panic bar, measured from the lock side.
Material | Steel |
Surface | green (RAL 6029) |
DIN-direction | Right |
Mounting | L-shape, offset 30 mm |
Dimension | 175x170x52 |
