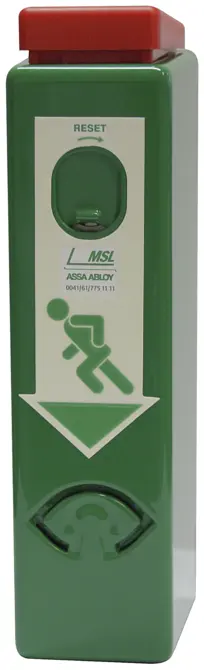

EH Exit-Controller 828

for handles and panic bar, with or without pre-alarm

Overview of Advantages

  • One-handed operation possible
  • Retrofit installation possible
  • For handle and panic bar
  • Version with pre-alarm
  • Splash-water protected version
  • Permanent release is possible
  • Version with installed half cylinder
  • Half cylinder can be replaced (PC - profile cylinder or RC - round cylinder)
  • Power supply via 9 V battery or mains power 12/24 V DC

Product description

  • The EH-Exit Controller is mounted under the handle or the panic bar on the door.
  • When the handle or panic bar is pressed, the EH-Exit Controller moves down automatically and enables the emergency exit door to be used. An alarm is also triggered in the process. A key movement to the right (in direction of the arrow RESET) and pushing up the EH-Exit Controller into its original position will silence the continuous alarm signal.
  • A permanent release of the handle or the panic bar can be set without triggering an alarm. Turning the key to the right (in direction of arrow RESET) enables the EH-Exit Controller to be pushed down past the alarm position. Once the EH-Exit Controller is engaged in the permanent release position, the key can be removed again. To restore the starting position, turn the key to the right and push the EH-Exit Controller up. Once the key is removed, an alarm is triggered when the handle or panic bar is actuated.

Area of Application

  • Escape routes
  • Solid leaf doors
  • Tubular frame doors
  • Glass frame doors
  • Fire doors
  • Doors with panic bars

Note

  • If the EH-Exit Controller is mounted on a panic bar, it should be mounted in the first third of the panic bar, measured from the lock side.
  • We recommend changing the battery annually. For this, the key must be turned to the left, then the housing can be removed and the battery replaced.
  • The volume of the standard horn depends on the voltage. The volume is approx. 95 dB (9 V), 100 dB (12 V) or 108 dB (24 V) per 1 m distance.
Technical data
MaterialPlastic
Surfacegreen (RAL 6029)

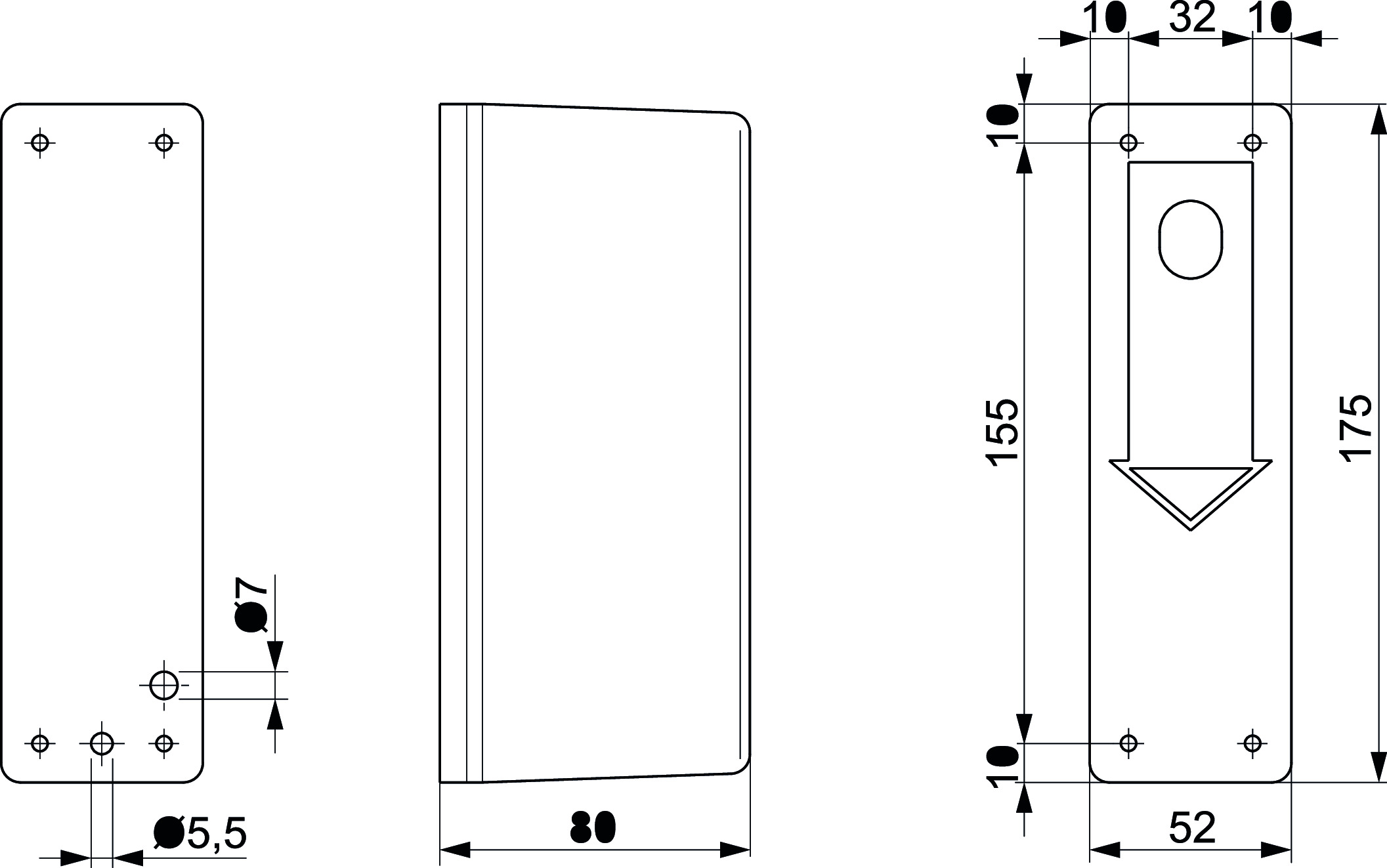

Dimension175x52x80
Area of applicationMetal, wood, glass or plastic doors
Variants that can be ordered
Order number
Subtitle
14004001For handle, without pre-alarm
14004002for handle, with pre-alarm
14004003For panic bar, without pre-alarm
14004004For handle, without pre-alarm
14004005for handle, with pre-alarm
14004006For panic bar, with pre-alarm
14004007For panic bar, with pre-alarm
14004008For handle, with pre-alarm, splash-proof
14004009For handle, without pre-alarm, splash-proof
14004010For handle, with pre-alarm, splash-proof
14004011For handle, without pre-alarm, splash-proof
