Flashing frequency can be controlled via potentiometer
Specially designed for outdoor installation
Fixed installation
Suitable for temperatures between -25 °C and +55 °C
Product description

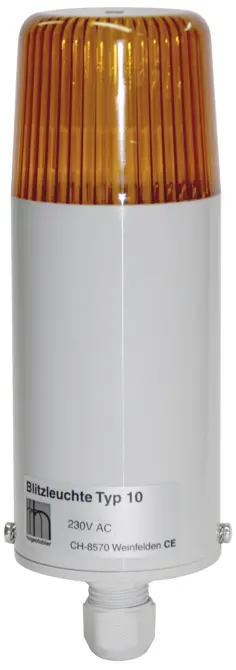

The flashing light is connected with the EH-Exit Controller via the mains module. If it is immediately under the handle or the panic bar and triggers and alarm as soon as the handle or panic bar is actuated (starting position), "Operation" lights up on the mains module. As soon as an alarm is triggered by the EH-Exit Controller, "Operation" and "Alarm" light up on the mains module and the flashing light starts flashing. Once the starting position of the EH-Exit Controller has been restored (only possible with the key), the flashing light stops flashing again.
The flashing frequency of the flashing light can be controlled by turning the potentiometer.
Area of Application
Monitoring and warning lamp for machines and buildings
Note
The flash tube should never be touched, as it is filled with xenon gas, meaning that it heats up to around 5'500 Kelvin within a fraction of a second.
Even if the flashing light is no longer connected to the power source, a very high voltage is still applied on the capacitor for a further 2 weeks. The entire inner workings of the flashing light should not be touched during this time.
