Accessories EH-Exit Controller 829.401

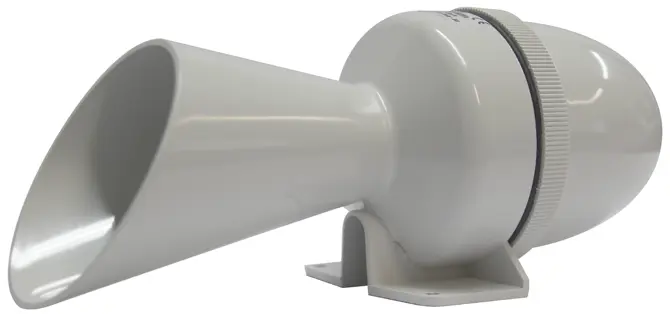

Horn

  • ArtNo: 14071018
  • EAN: 7630022715267

Overview of Advantages

  • Suitable for temperatures between -30 °C and +50 °C
  • shockproof

Product description

  • The horn is connected with the EH-Exit Controller via the mains module. If it is immediately under the handle or the panic bar and triggers and alarm as soon as the handle or panic bar is actuated (starting position), "Operation" lights up on the mains module. As soon as an alarm is triggered by the EH-Exit Controller, "Operation" and "Alarm" light up on the mains module and the horn sounds continuously. Once the EH-Exit Controller has returned to the starting position (only possible with a key) the horn is silenced again.

Note

  • At a distance of 1 m, the volume of the horn is approx. 96 dB
Technical data
Merkmalsinfo230 V AC
