Panic security multi-point locking system (timber doors) 40344PE-SV
Panic function E, automatic locking, DIN-direction reversible

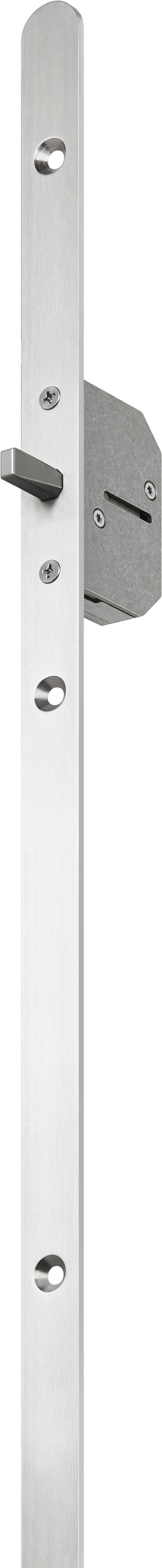

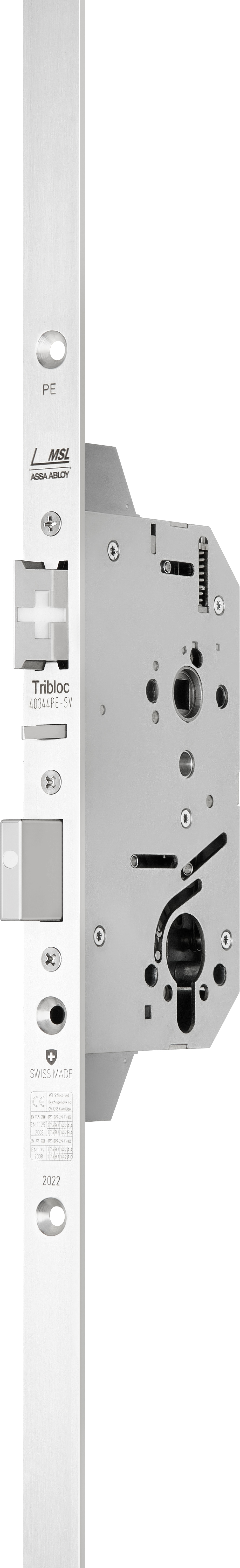

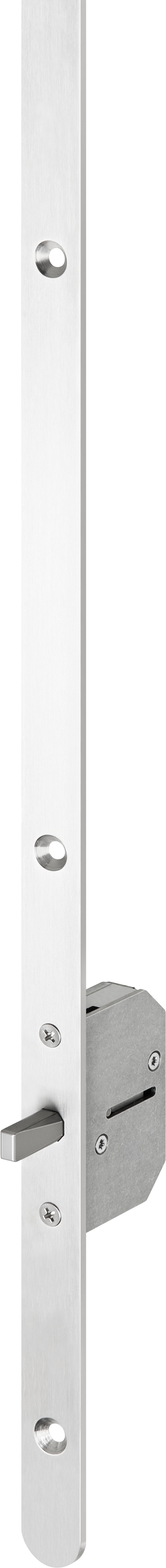

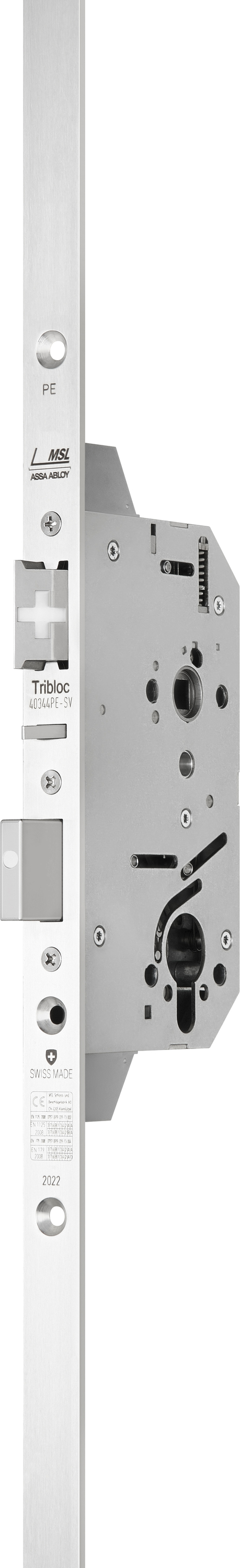

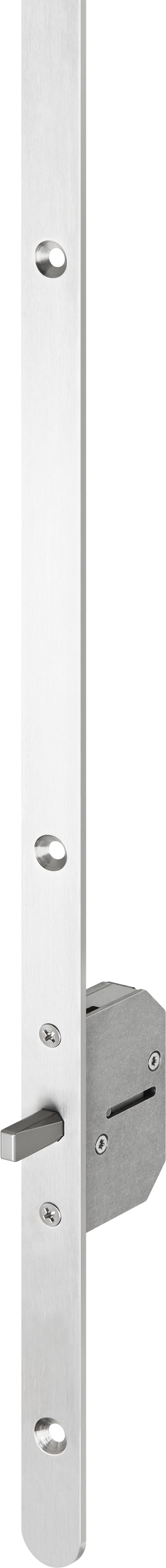

Product image 1
Overview of Advantages
DIN-direction reversible
Optimization of the mechanical automatic locking mechanism via offset control latch
New spring concept with strong compression springs for heavy handles
Version with round cylinder or profile cylinder
Backset: 60-80mm
Certification according to EN 179
Certification according to EN 1125
Certification according to EN 1634-1 to 3
Intrusion resistance up to Class RC3 achievable in suitable door systems
Product description
With these automatic locking multi-point locks, a door handle, panic bar or pushbar is used for operation on the inside. On the outside, a bar or knob plate can be mounted depending on the architecture. The inside handle is permanently attached to the lock mechanism and thus enables the lock to be drawn back and the door to be opened from the inside, thus ensuring people can leave the respective building or area at any time (panic function).
