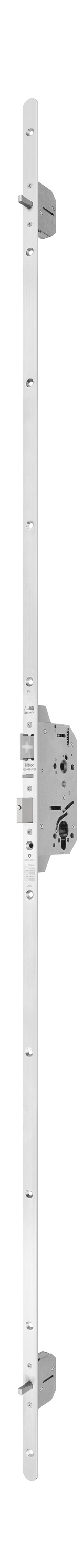

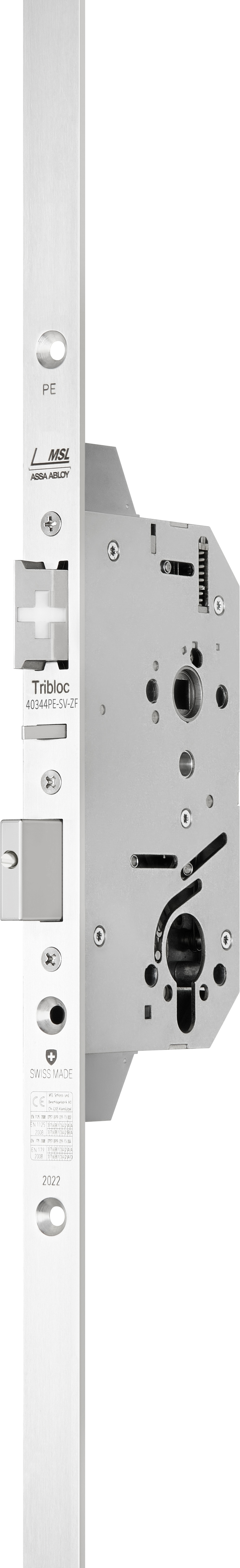

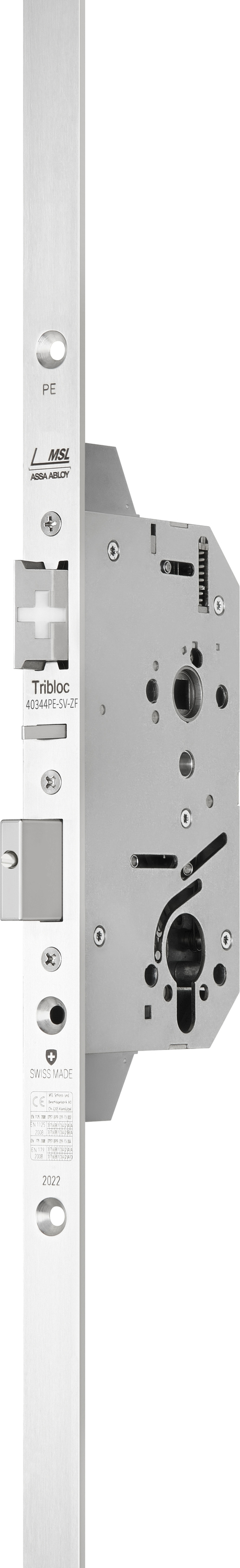

Panic-proof multi-point locking system 40344PE-SV-ZF

Overview of Advantages

• DIN direction can be changed without tools
• New spring concept with strong compression springs for heavy handles
• bolt stroke: single-turn 20 mm,
• Certification according to EN 179
• Certification according to EN 1125
• Certification according to EN 12209
• Certification according to EN 1634-1 to 3
• Burglary resistant to class RC2 can be achieved in appropriate door systems

Product description

• These multi-point locks feature a door handle, panic door fitting or push bar on the inside of the door. When locked, the door cannot be opened from the outside, but can always be opened from the inside using the door handle, panic door fitting or push bar (panic function). The square spindle (nut) is continuous with the panic function E. Depending on the architectural requirements, a bar or knob plate can be fitted on the outside. The door can be opened from the outside using the key via the changeover function. When the door closes, the lock locks automatically (self-locking). Can be used in combination with panic fixed leaf lock 50590/51590 in double-leaf doors.

Area of Application

• Double-leaf security, escape route and fire protection doors
• Entrance and private service doors

Note

• Suitable for thumbturn cylinders
• DIN direction can be changed without tools (DIN left in the factory)
• Use in combination with inactive leaf lock 50590/51590 (not included in the scope of delivery).
