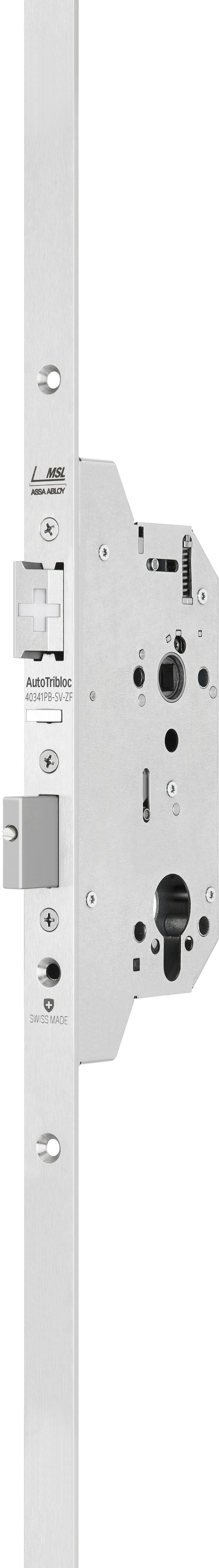

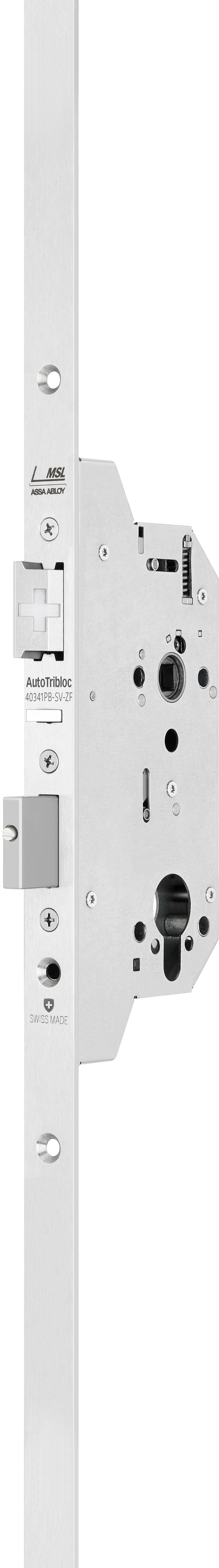

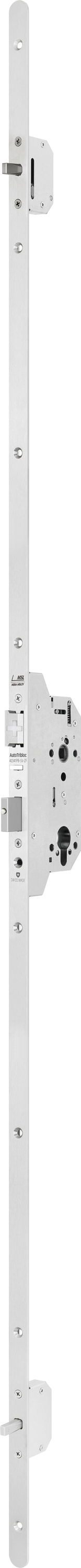

Panic-proof multi-point locking system 40341PB-SV-ZF

Overview of Advantages

• DIN direction can be changed without tools
• Panic side can be switched
• New spring concept with strong compression springs for heavy handles
• bolt stroke: single-turn 20 mm,
• Certification according to EN 179
• Certification according to EN 1125
• Certification according to EN 12209
• Certification according to EN 1634-1 to 3
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• These multi-point locks feature a door handle, panic door fitting or push bar on the inside of the door. A door handle is also fitted on the outside of the door. When locked, the door cannot be opened from the outside, but can always be opened from the inside using the door handle, panic door fitting or push bar (panic function). The square spindle (nut) is divided in panic function B. This panic function is suitable for doors that also need to be opened from the outside from time to time (daytime operation). Daytime operation can be activated via the cylinder by turning the key in the opening direction until it stops, then the door handle on the outside is engaged. When day operation is deactivated, the lock locks automatically (self-locking). Can be used in combination with the fixed leaf lock 50590 or 51590 in double-leaf doors.

Area of Application

• Double-leaf security, escape route and fire protection doors
• High-traffic doors

Note

• Suitable for thumbturn cylinders
• DIN direction can be changed without tools (DIN left in the factory)
• Panic side can be switched
• Use special interchangeable profile pin 5968.
• Use in combination with inactive leaf lock 50590/51590 (not included in the scope of delivery).
