Panic function B, DIN direction reversible, panic side reversible, double-leaf

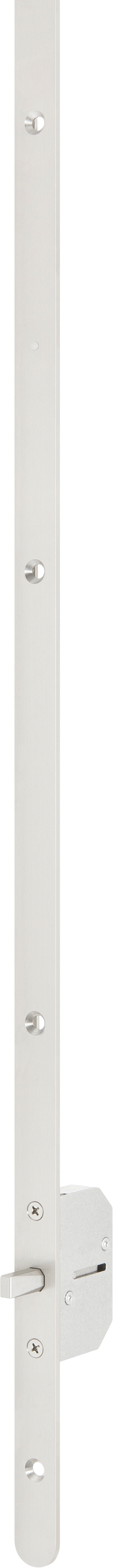

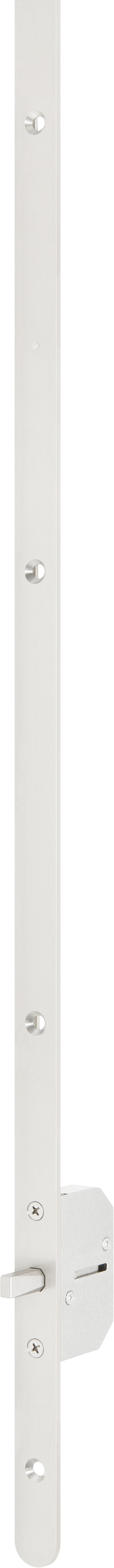

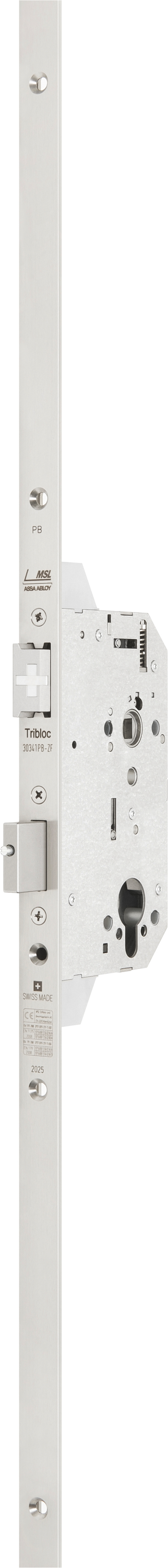

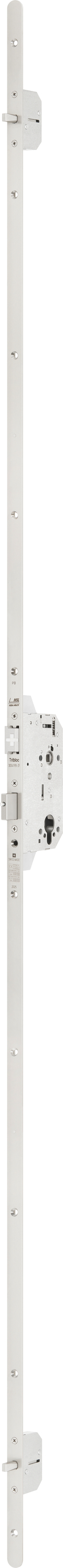

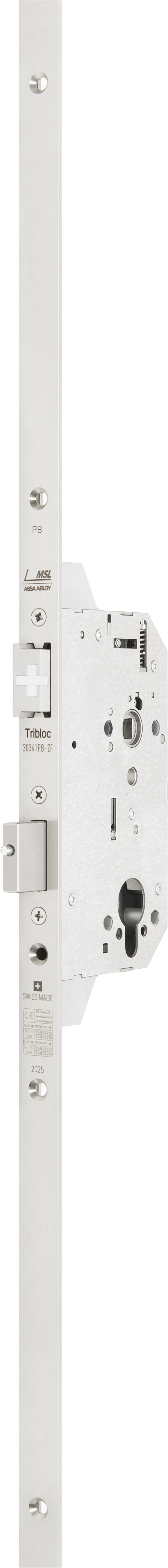

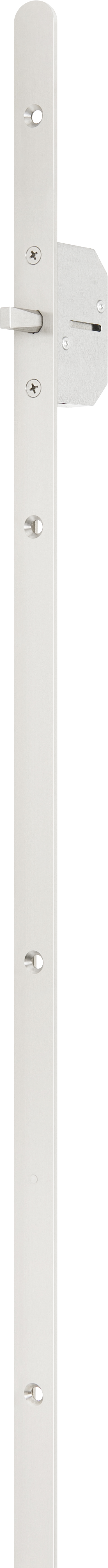

Product image 1
Overview of Advantages
DIN direction can be changed without tools
Panic side can be switched
New spring concept with strong compression springs for heavy handles
bolt stroke: single-turn 20 mm,
Certification according to EN 179
Certification according to EN 1125
Certification according to EN 1634-1 to 3
Intrusion resistance up to Class RC3 achievable in suitable door systems
Product description
These multi-point locks feature a door handle, panic door fitting or push bar on the inside of the door. A door handle is also fitted on the outside of the door. When locked, the door cannot be opened from the outside, but can always be opened from the inside using the door handle, panic door fitting or push bar (panic function). The square spindle (nut) is divided in panic function B. This panic function is suitable for doors that also need to be opened from the outside at times (daytime operation). Daytime operation can be activated via the cylinder by turning the key in the opening direction until it stops, then the door handle on the outside is engaged. Can be used in combination with the fixed leaf lock 50590 or 51590 in double-leaf doors.
Area of Application
Double-leaf security, escape route and fire protection doors
High-traffic doors
Note
Not suitable for freewheel cylinders.
DIN direction can be changed (factory setting: DIN left)
Panic side can be switched
Use special interchangeable profile pin 5968.
Use in combination with fixed sash lock 50590/51590
