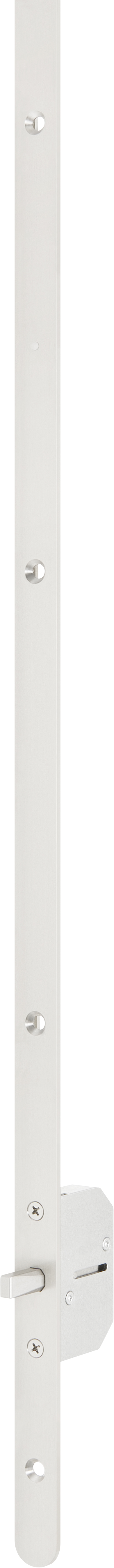

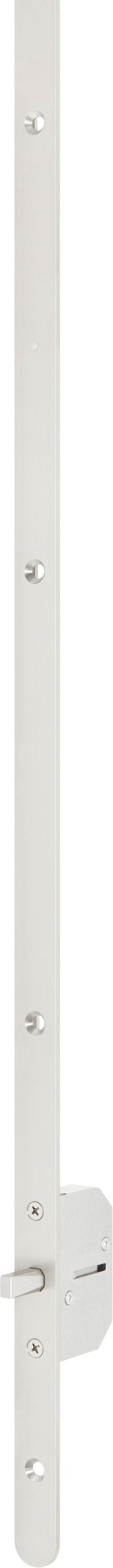

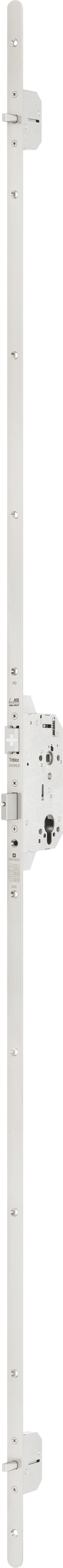

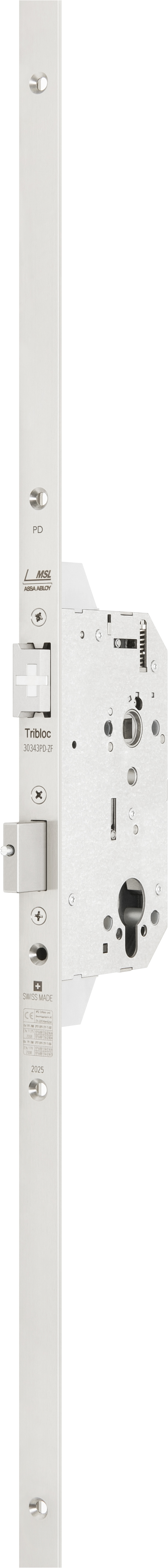

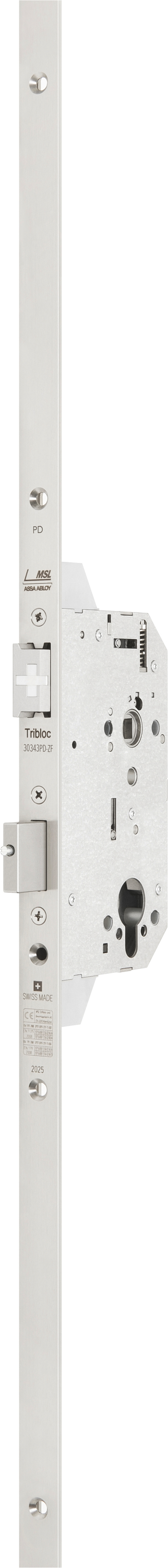

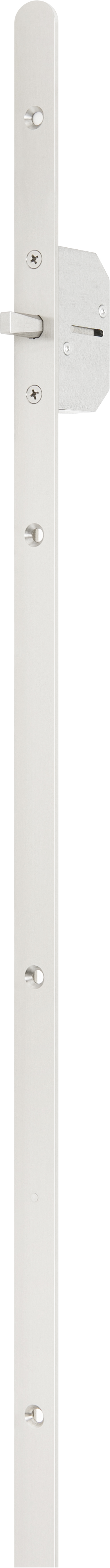

Panic-proof multi-point locking system 30343PD-ZF

Overview of Advantages

• DIN direction can be changed without tools
• Panic side can be switched
• New spring concept with strong compression springs for heavy handles
• bolt stroke: single-turn 20 mm,
• Certification according to EN 179
• Certification according to EN 1125
• Certification according to EN 1634-1 to 3
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• These multi-point locks feature a door handle, panic bar or push bar on the inside of the door. A door handle is also fitted on the outside of the door. When locked, the door cannot be opened from the outside, but can always be opened from the inside using the door handle, panic bar or push bar (panic function). The square spindle (nut) is divided in panic function D. After the handle is operated from the inside, the door can also be opened automatically from the outside, i.e. the handle is coupled to the outside and rescue measures are not impeded. With this function, the door must always be locked again with the key to prevent it from being opened from the outside. Can be used in combination with the panic fixed leaf lock 50590/51590 in double-leaf doors.

Area of Application

• Double-leaf security, escape route and fire protection doors
• For new construction and renovation

Note

• Not suitable for rotary knob cylinders
• DIN direction can be changed (factory setting: DIN left)
• Panic side can be switched
• Use special interchangeable profile pin 5968.
• Use in combination with inactive leaf lock 50590/51590 (not included in the scope of delivery).
