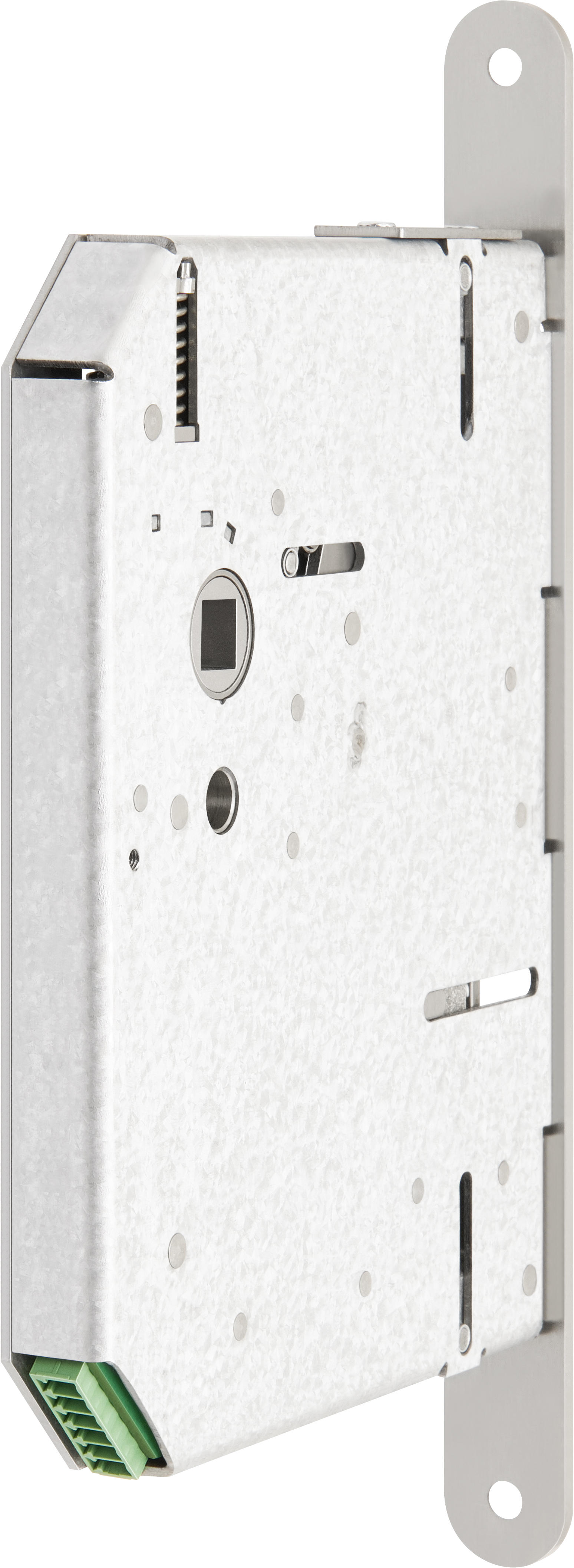

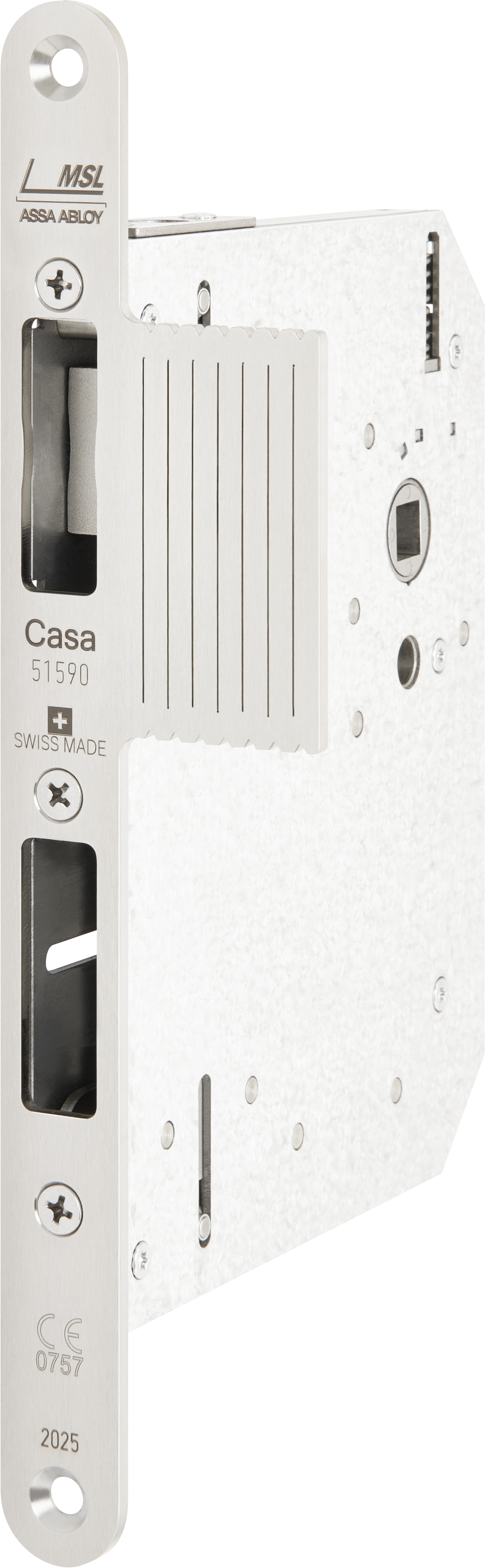

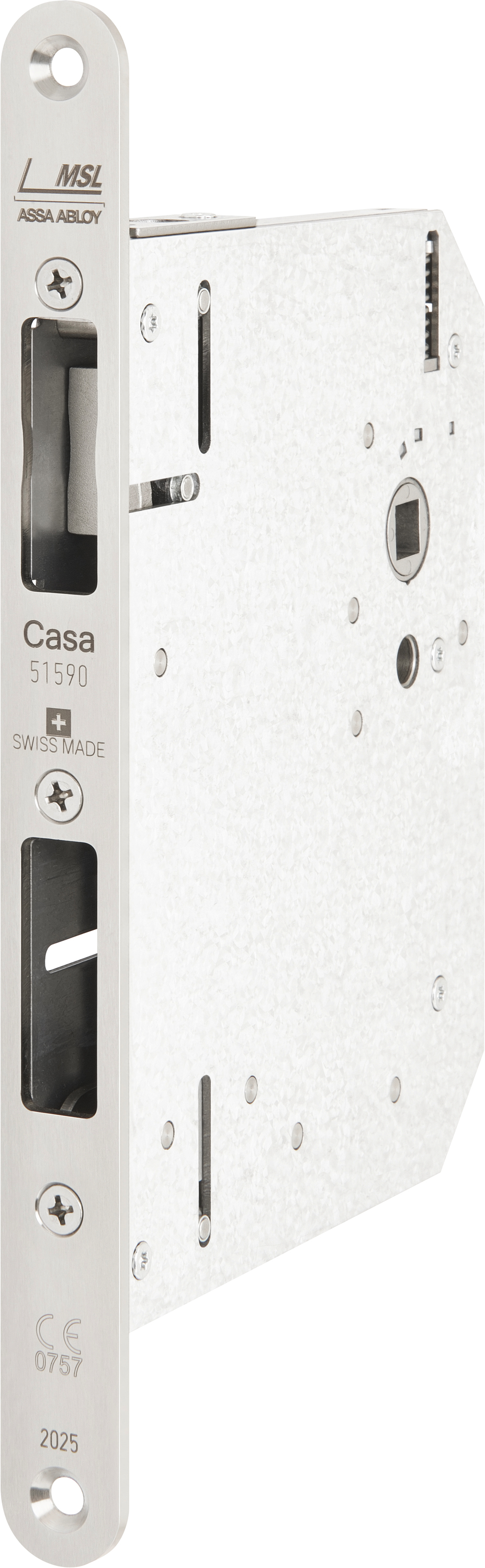

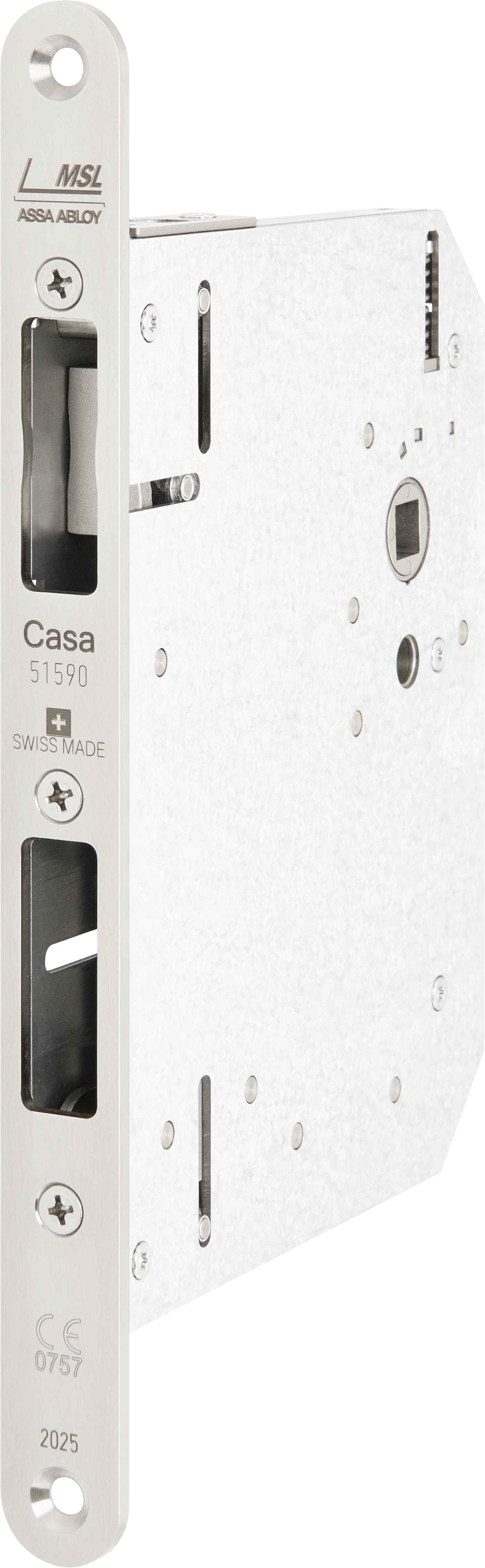

Panic passive leaf locking system 51590

Overview of Advantages

• New spring concept with strong compression springs for heavy handles
• Bottom spring-loaded ejector for fold air compensation
• Integrated push button, locking and unlocking contacts
• Suitable for CASA and Tribloc lines
• Certification according to EN 179
• Certification according to EN 1125
• Certification according to EN 1634-1 to 3
• Intrusion resistance up to Class RC3 achievable in suitable door systems

Product description

• With this panic fixed-leaf lock, a door handle, panic door fitting or push bar is fitted on the inside of the door. When locked, the door cannot be opened from the outside, but can always be opened from the inside using the door handle, panic door fitting or push bar (panic function). When the panic function is activated, the linkage at the top and bottom is unlocked and held by the switch lock. At the same time, the double-leaf lock in the active leaf is unlocked by the two ejectors in the fixed leaf, allowing escape through both door leaves (full panic door). When the fixed leaf closes, the linkage at the top and bottom is automatically locked by the switch lock release (1730). This lock has integrated handle, locking and unlocking contacts, enabling various door states to be monitored.

Area of Application

• Double-leaf full panic doors

Note

• Connection via 6-pole plug-in terminal (max. cable cross-section 1.31 mm²)
• For use with double-leaf panic locks from the CASA and Tribloc lines
• CASA: 30101PB-ZF, 30103PD-ZF, 30104PE-ZF, 40101PB-SV-ZF, 40104PE-SV-ZF
• Tribloc: 30341PB-ZF, 30343PD-ZF, 30344PE-ZF, 40341PB-SV-ZF, 40344PE-SV-ZF
• Accessories (not included): Round bar 1724, round tube 1725, strike plate guide 1726, floor strike plate 1727, lap strike plate 1728 for top locking or flat strike plate 1729 for top locking, switch lock 1730 with automatic locking.
• Optional reinforcement set 50090 available
