Panic door fitting 5971

Overview of Advantages

  • One-handed operation
  • Round bar can be shortened
  • Certification according to EN 1125
  • Approved in accordance with EN 1634

Product description

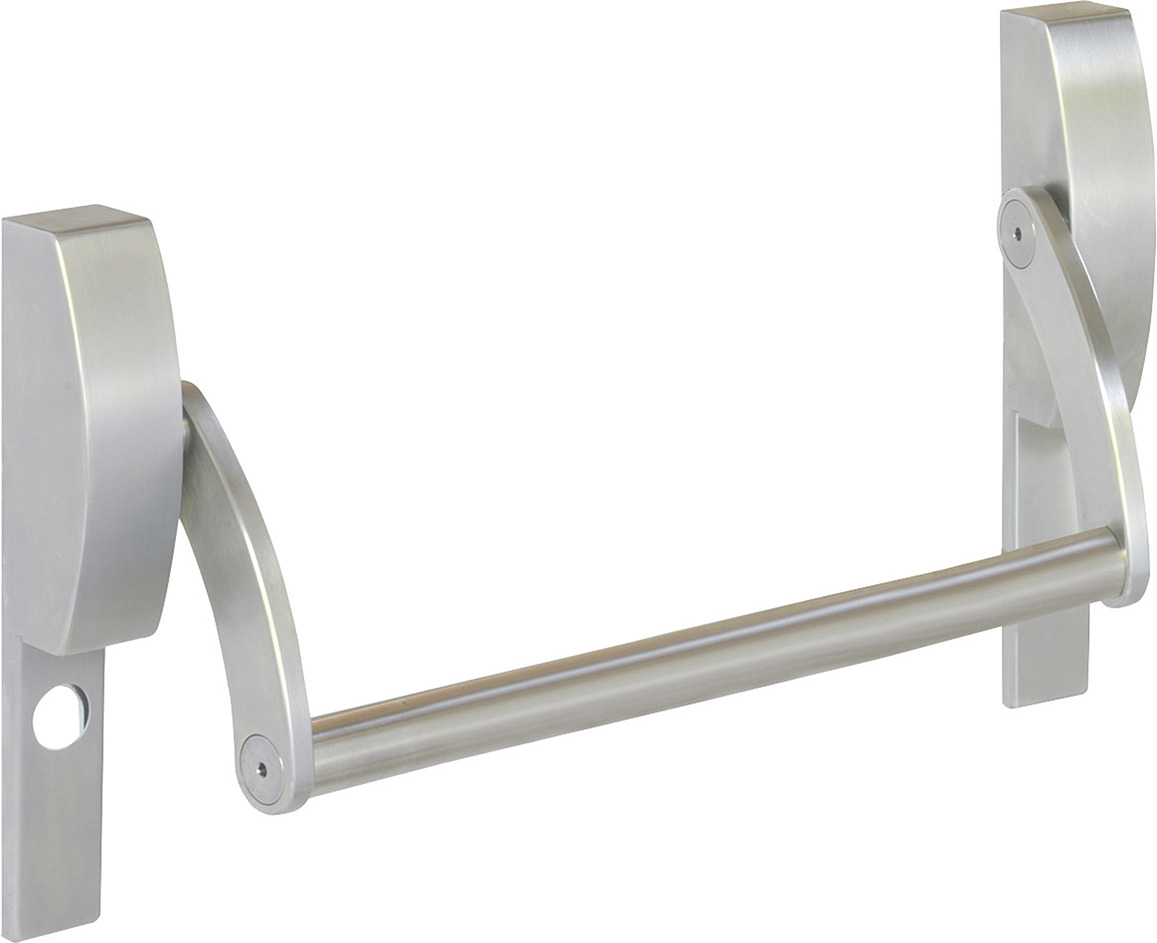

  • The 5971 panic fitting is a purely mechanical panic push bar type A made of stainless steel. The door can be opened from the inside at any time by actuating the panic push bar (panic function).
  • Calculation of the tube length: L = door width-60mm-2xbackset

Area of Application

  • Escape routes and emergency exits
  • Public buildings, airports, concert halls, stadia, schools, administrative buildings, exhibition halls, hospitals

Note

  • Accessories 5976 round tube, 5966 screw bag and, if required, 5995 blind plate must be ordered separately
Technical data
Area of applicationMetal/wood
SurfaceMatt

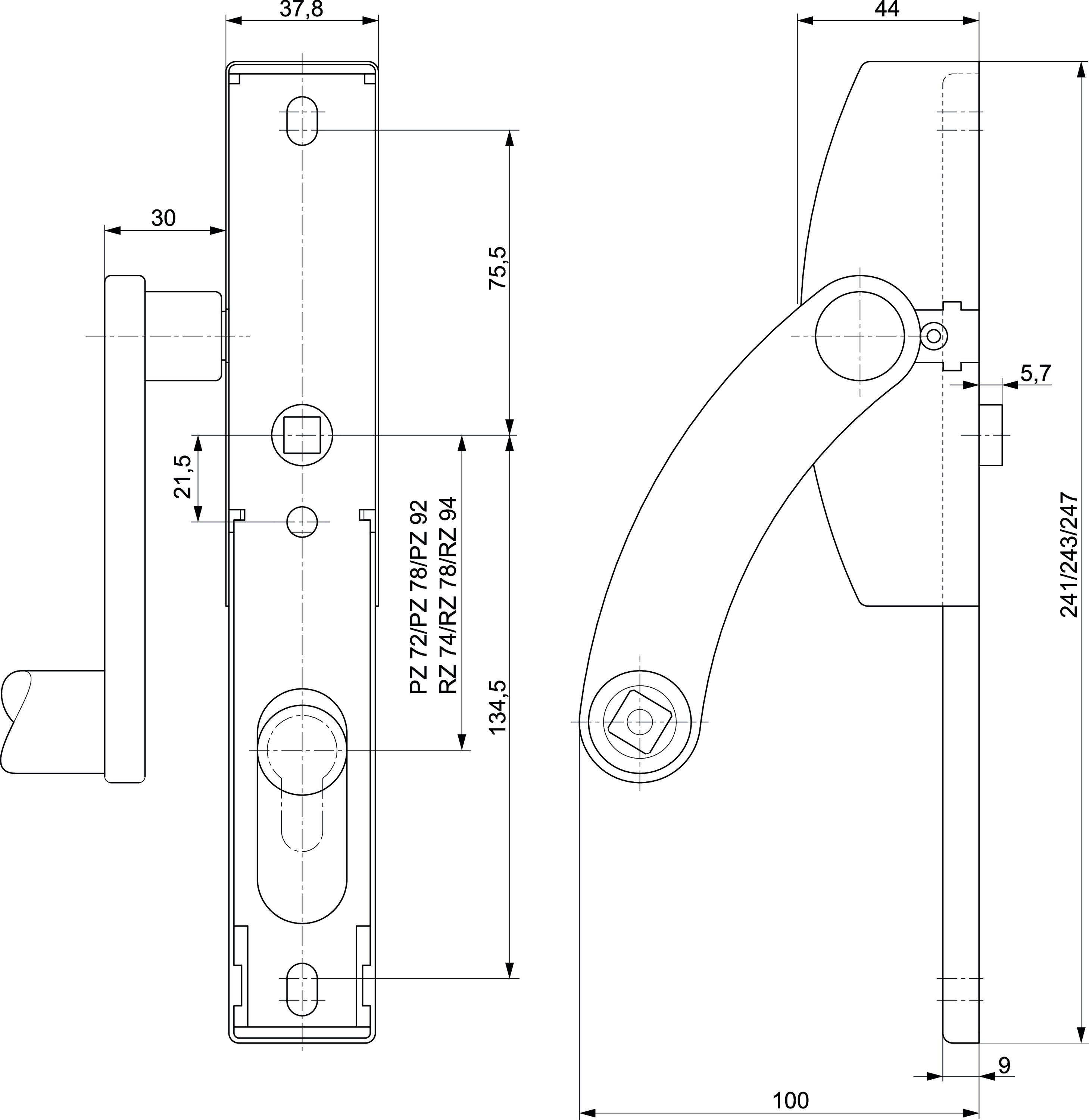

Dimension248x37.8x9
Forend shapeSquare
MaterialInox
Variants that can be ordered
Order number
Description
128510025971.000, INOX mb
128510035971.274, INOX mb
128510045971.278, INOX mb
128510055971.294, INOX mb
128510065971.372, INOX mb
128510075971.378, INOX mb
128510085971.392, INOX mb
