Roller protector FSR 6000 [Quick & Outdoor]

Overview of Advantages

  • Quick fit roller protector

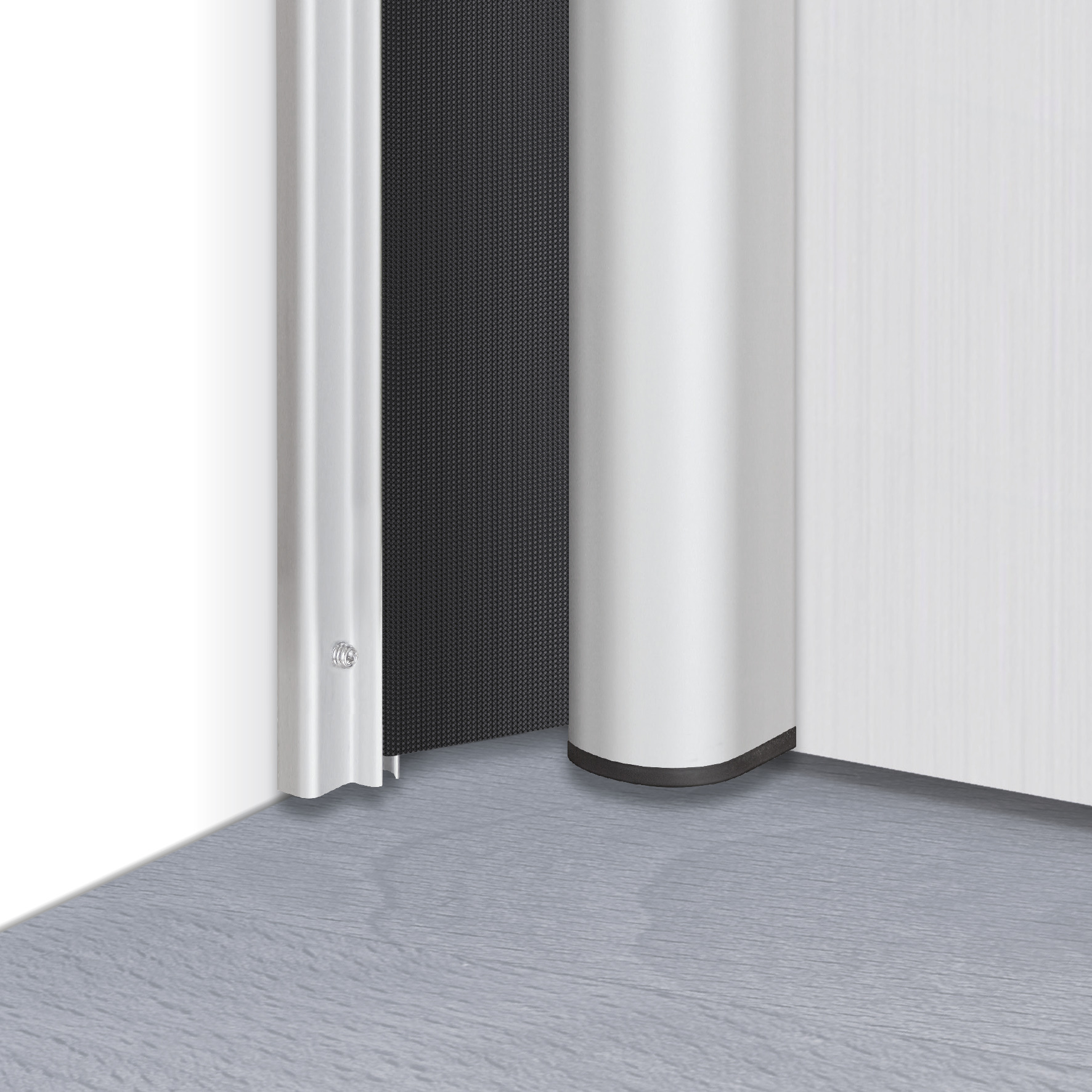

  • For securing the non-hinge side on the secondary closing edge of swing doors made of wood, metal, PVC or glass
  • Suitable for indoor and outdoor use
  • Hard-wearing synthetic fibre fabric: washable, difficult to ignite B1, UV resistant

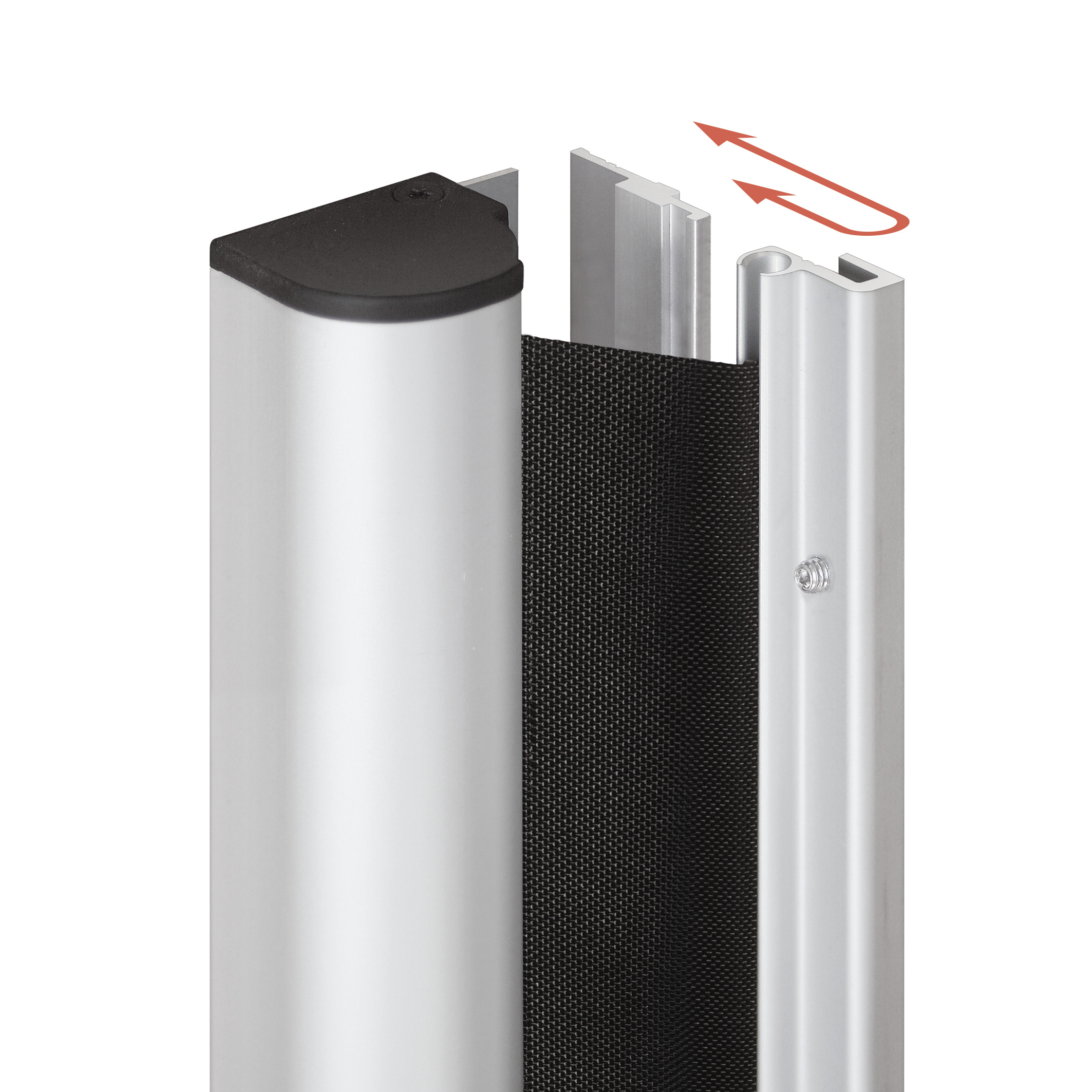

  • Easy clip-on system
  • Fixing screws concealed
  • Housing position easy adjustable (elongated holes)
  • Suitable for almost all doors
  • Certified and supervised quality (MPA)
  • 2’000’000 test cycles

Incl. accessories

Universal screws

Tender specification

Planet roller-type finger protector FSR 6000 [Quick & Outdoor] for safeguarding the non-hinge side at the secondary closing edge of swing doors. Roller-type protector that automatically maintains a constant tension. Weather resistant for use on external doors. With removable/mountable fabric cover for maintenance and cleaning or adjusting the hinges, drop-down seals, etc. Fixing elements on the door and frame side with oblong holes for re-adjusting the roller protector. Profile made of aluminum. Surface finishes: anodised EV1, anodised stainless steel, powder coated RAL 9016, 9007, 7016 (please select). Cover of synthetic fibre, extended length 260 or 330 mm (please select), weather resistant and fire retardant B1 treated. Colours: black / white (please select). Standard length 1925 mm (for manually operated doors according to DIN 18101 with BRM 2000). Automatic length 2015 mm (for power operated doors according to DIN EN 16005) or fixed length between 310 mm and 2500 mm. (please select supply length)

Technical data
MaterialHousing: aluminium, cloth: Synthetic fibre
Lengthmin. 310 mm to max. 2500 mm
Can be shortenedno
Draw out length260 mm or 330 mm
Variants that can be ordered
Order number
Version
Surface
Order placement information
F-6111Standard length (1925 mm)silver anodised EV1
F-6121Standard length (1925 mm)RAL 9016
F-6131Standard length (1925 mm)RAL 9007
F-6141Standard length (1925 mm)RAL 7016
F-6151Standard length (1925 mm)Matt anodised stainless steel (INOX)
F-6161Standard length (1925 mm)black C35 matt anodised
F-6191Standard length (1925 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-6112Automatic length (2015 mm)silver anodised EV1
F-6122Automatic length (2015 mm)RAL 9016
F-6132Automatic length (2015 mm)RAL 9007
F-6142Automatic length (2015 mm)RAL 7016
F-6152Automatic length (2015 mm)Matt anodised stainless steel (INOX)
F-6162Automatic length (2015 mm)black C35 matt anodised
F-6192Automatic length (2015 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
F-6113made to measure (per linear meter)silver anodised EV1
F-6123made to measure (per linear meter)RAL 9016
F-6133made to measure (per linear meter)RAL 9007
F-6143made to measure (per linear meter)RAL 7016
F-6153made to measure (per linear meter)Matt anodised stainless steel (INOX)
F-6163made to measure (per linear meter)black C35 matt anodised
F-6193made to measure (per linear meter)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
Suitable options

Order number
Product
Surcharge, white fabric
901203Surcharge, white fabric
Surcharge, white fabric, for FSR 6000 [Quick & Outdoor]
Surcharge, red fabric
901204Surcharge, red fabric
Surcharge, red fabric, for FSR 6000 [Quick & Outdoor]
Surcharge, blue fabric
901205Surcharge, blue fabric
Surcharge, blue fabric, for FSR 6000 [Quick & Outdoor]
Surcharge, yellow fabric
901206Surcharge, yellow fabric
Surcharge, yellow fabric, for FSR 6000 [Quick & Outdoor]
Surcharge, grey fabric
901207Surcharge, grey fabric
Surcharge, grey fabric, for FSR 6000 [Quick & Outdoor]
Surcharge, black fabric XL 330 mm draw out length
901208Surcharge, black fabric XL 330 mm draw out length
Surcharge, black fabric XL 330 mm draw out length, for FSR 6000 [Quick & Outdoor]
Surcharge, white fabric XL 330 mm draw out length
901209Surcharge, white fabric XL 330 mm draw out length
Surcharge, white fabric XL 330 mm draw out length, for FSR 6000 [Quick & Outdoor]
Surcharge, red fabric XL 330 mm draw out length
901210Surcharge, red fabric XL 330 mm draw out length
Surcharge, red fabric XL 330 mm draw out length, for FSR 6000 [Quick & Outdoor]
Surcharge, blue fabric XL 330 mm draw out length
901211Surcharge, blue fabric XL 330 mm draw out length
Surcharge, blue fabric XL 330 mm draw out length, for FSR 6000 [Quick & Outdoor]
Surcharge for anodising per colour (EURAS standard colours) and order, payable once only, other colours on request
901201Surcharge for anodising per colour (EURAS standard colours) and order, payable once only, other colours on request
Surcharge, for powder coating per colour (RAL K1 classic card) and order, payable once only, other colours on request
901200Surcharge, for powder coating per colour (RAL K1 classic card) and order, payable once only, other colours on request
Surcharge, yellow fabric XL 330 mm draw out length
901212Surcharge, yellow fabric XL 330 mm draw out length
Surcharge, yellow fabric XL 330 mm draw out length, for FSR 6000 [Quick & Outdoor]
Surcharge, grey fabric XL 330 mm draw out length
901213Surcharge, grey fabric XL 330 mm draw out length
Surcharge, grey fabric XL 330 mm draw out length, for FSR 6000 [Quick & Outdoor]
Accessories/Individual parts

Order number
Product
Adhesive kit G, 2500 mm, for glass doors
901371Adhesive kit G, 2500 mm, for glass doors
Adhesive kit G, 2500 mm, for glass doors, for roller protectors FSR 6000, for indoor and outdoor
Adhesive kit S, for steel frames, 2500 mm
901370Adhesive kit S, for steel frames, 2500 mm
Adhesive kit S, for steel frames, 2500 mm, for roller protectors FSR 6000, for indoor and outdoor
Installation aid, adhesive pads
901320Installation aid, adhesive pads
Installation aid, with 6 adhesive pads
Hex pin wrench for roller protector
901322Hex pin wrench for roller protector
Hex pin wrench for roller protector, 2 x 20 x 50 mm
Set of screws for roller protector FSR 6000 [Quick & Outdoor]
901366Set of screws for roller protector FSR 6000 [Quick & Outdoor]
Screws for roller protector FSR 6000 [Quick & Outdoor], 10 pieces
Universal drill bit Ø3 mm
901331Universal drill bit Ø3 mm
Universal drill bit Ø3 mm, for masonry and concrete back-filled metal frames, 65 mm
Planet marking aid
901300Planet marking aid
Planet marking aid, plastic, black, set incl. pencil
Mounting profile LP1, for doors with panic hardware
Mounting profile LP1, for doors with panic hardware
Base profile FSR RG1, for glass doors
Base profile FSR RG1, for glass doors
Mounting profile standard,  for FSR 6000 [Quick & Outdoor]
Mounting profile standard, for FSR 6000 [Quick & Outdoor]
Mounting profile standard, EV1 anodised, for roller protectors FSR 6000 [Quick & Outdoor]
