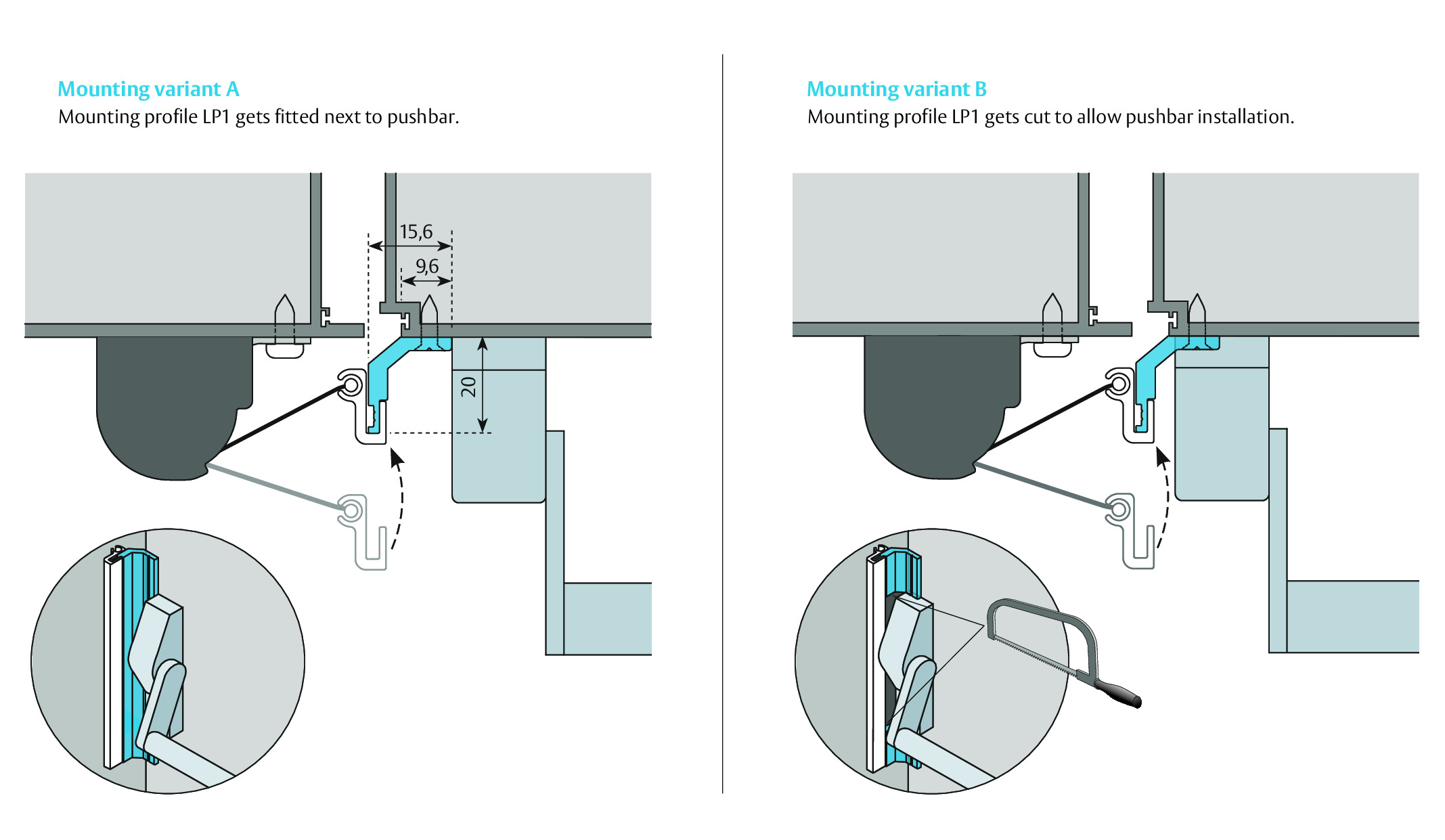

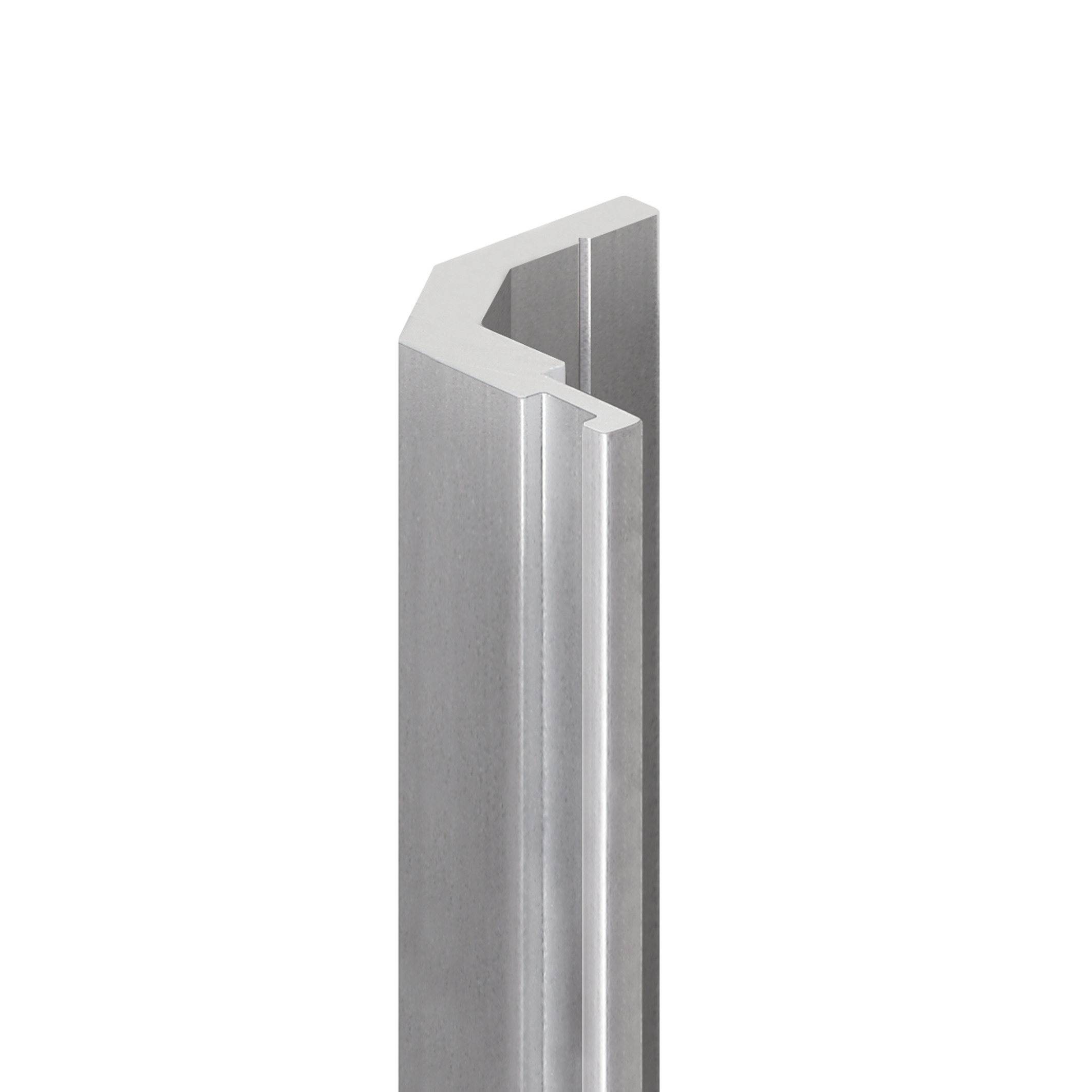

Mounting profile LP1, for doors with panic hardware

Features

Door types

Overview of Advantages

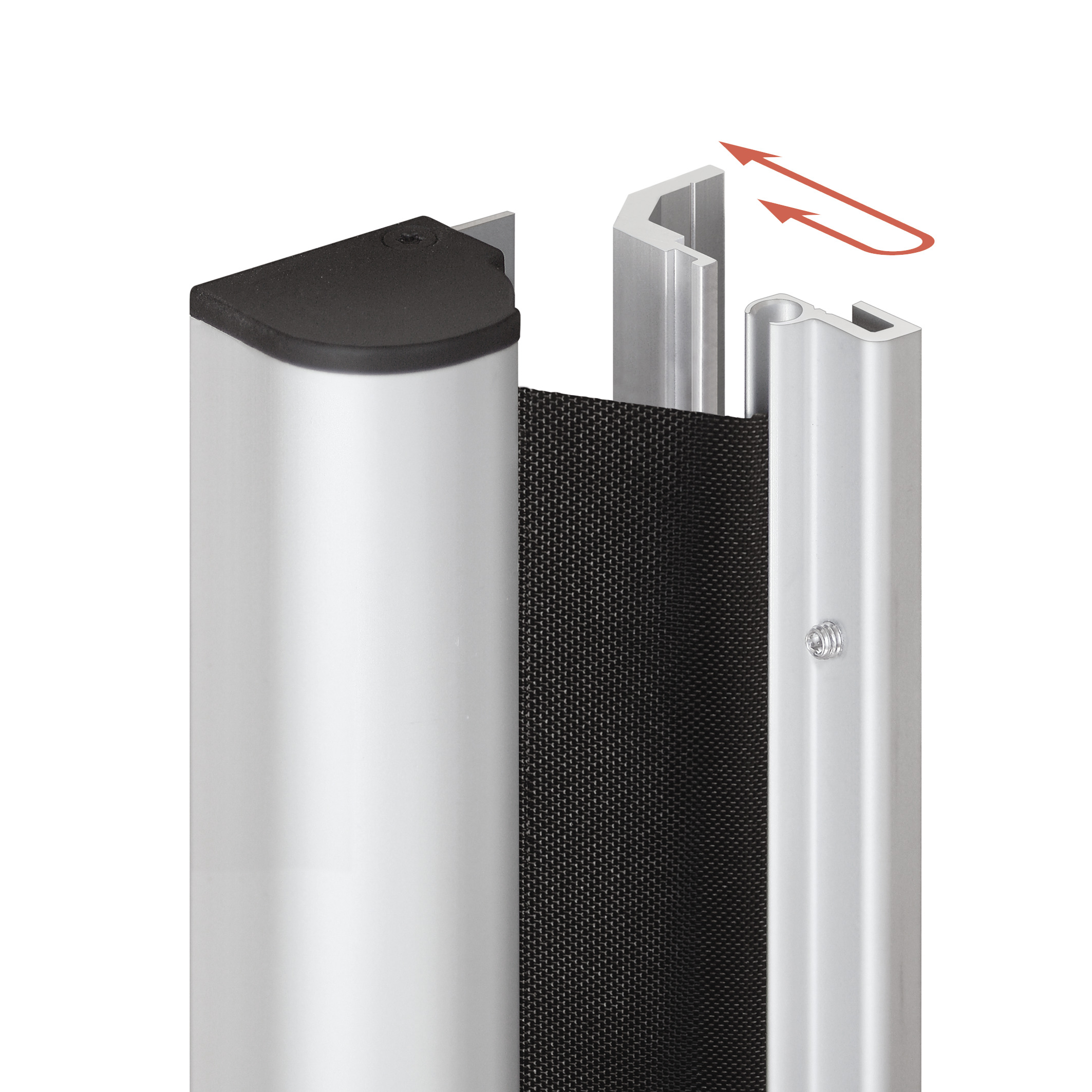

  • Mounting profile for doors with small available space or no space for attaching the finger protection to the door leaf, suitable for roller protector FSR 6000 [Quick & Outdoor]
  • Standard solution, making prior measurement unnecessary
  • For wooden, metal and PVC doors

Scope of delivery

  • All profiles are delivered without drilling, with screws
Technical data
Lengthmax. 2500 mm
Can be shortenedyes
Profile materialAluminium
Variants that can be ordered
Order number
Version
Surface
Order placement information
901336Standard length (1925 mm)silver anodised EV1
901337Standard length (1925 mm)RAL 9016
901338Standard length (1925 mm)Matt anodised stainless steel (INOX)
901339Standard length (1925 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
901340Automatic length (2015 mm)silver anodised EV1
901341Automatic length (2015 mm)RAL 9016
901342Automatic length (2015 mm)Matt anodised stainless steel (INOX)
901343Automatic length (2015 mm)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
901332made to measure (per linear meter)silver anodised EV1
901333made to measure (per linear meter)RAL 9016
901334made to measure (per linear meter)Matt anodised stainless steel (INOX)
901335made to measure (per linear meter)RAL / EURAS (at choice)**chargeable option required: Art. no. 901200 or 901201
Accessories/Individual parts

Order number
Product
Adhesive kit S, for steel frames, 2500 mm
901370Adhesive kit S, for steel frames, 2500 mm
Adhesive kit S, for steel frames, 2500 mm, for roller protectors FSR 6000, for indoor and outdoor
Installation aid, adhesive pads
901320Installation aid, adhesive pads
Installation aid, with 6 adhesive pads
Universal drill bit Ø3 mm
901331Universal drill bit Ø3 mm
Universal drill bit Ø3 mm, for masonry and concrete back-filled metal frames, 65 mm
Planet installation box, inc. carrying strap
901301Planet installation box, inc. carrying strap
Planet installation box, incl. carrying strap, stable wooden box with saw guide made of metal
Planet marking aid
901300Planet marking aid
Planet marking aid, plastic, black, set incl. pencil
