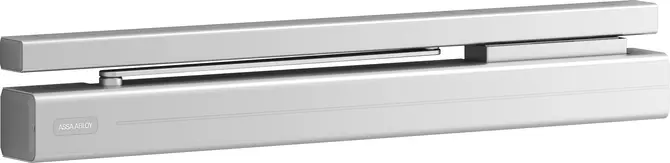

DC700 G-FT Cam Motion security door closer
For single-leaf doors up to a leaf width of 1,200mm, non-hinge side, with integrated latch lock and escape door strike in the guide rail
Product description
- ASSA ABLOY door closer with Cam-Motion® technology, extended mounting plate and integrated latch bolt, extended guide rail with integrated escape door strike
- Suitable for retrofitting to fire rated door with door closer with guide rail and fixing using drilling template according to DIN EN 1154, supplementary sheet 1:2003-11
- Suitable for fire and smoke protection doors
- Certified in compliance with EN 1154, size 3-6
- Escape door strike 332®, tested in compliance with the guideline for electrical locking systems for doors along escape routes
- For single-leaf doors, door width 850 - 1,200 mm
Overview of Advantages
- Integrated latch bolt 807 on extended mounting plate
- With 4 m connecting cable
- Cable routing flush or surface-mounted possible
- Can be used for left and right-handed doors
- Standard installation on hinge side
- Variable adjustable closing force
- Closing speed, latching speed and backcheck continuously adjustable
- Thermodynamic valves for consistent performance
- Axis continuously height adjustable up to 14 mm
- Standard colours: silver EV1, stainless steel-design
Performance characteristics escape door lock
- Holding force of 2000 N
- Latch position continuously adjustable between 12 mm and 17 mm
- Latch position adjustable horizontally between -3 mm and +6 mm
- Latch bolt can be adjusted vertically in 4 mm increments (-4/ 0/ +4/ +8)
- Escape door strike using FaFix®, adjustable by 2 mm (0.5 mm steps)
Characteristics of guide rail
- Height adjustable by 2 mm for tolerance
- Concealed fixing screws
view construction details
| Rated voltage | 12 V DC / 24 V DC |
| Rated current | 190 mA / 12 V; 95 mA / 24 V |
| Rated operating voltage tolerance range | +/- 10 % |
| Closing force | EN 3-6 |
| Door width up to | 850-1200 mm |
| Suitable for fire doors | Yes |
| DIN-direction | Left / right handed |
| Mounting method | Standard installation on hinge side |
| Closing speed | Variable between 170°-10° |
| Latching speed | Variable between 10°-0° |
| Backcheck effect | Variable above 75° |
| Max. door opening angle hinge side | ca. 170° |
| Certified in compliance with | Door closer: DIN EN 1154 / escape door strike: EltVTR |
| Weight | 8.2 kg |
| Dimensions door closer | 727 x 66 x 66 mm |
| Dimensions guide rail | 727 x 30 x 44 mm |
| CE marking for building products | Yes |
| Holding force | 2000 N |
| Operating temperature range | -15 °C to +40 °C |
| Armature contact | Yes |
| Recovery diode | Yes |
| System certification in compliance with EltVTR | effeff escape door control units |
| Order number | Description |
|---|---|
| DC700FT0-FDEV1- | Hinge side, 24 V DC, silver EV1 |
| DC700FT0-FD35-- | Hinge side, 24 V DC, stainless steel design |
| DC700FT0-EDEV1- | Hinge side, 12 V DC, silver EV1 |
| DC700FT0-ED35-- | Hinge side, 12 V DC, stainless steel design |
| | Order number | Product |
|---|---|---|
 | DCFA01-----EV1- | Spacer plate FA01 For DC700G-FT, for thin rebate doors, 5 mm, silver EV1 |
| DCFA02-----EV1- | Spacer plate FA02 For DC700G-FT, for thick rebate doors, 15 mm, silver EV1 |
| DCFA03-----EV1- | Replacement plate FA03 For competitor's guide rail drilling template, 5 mm, silver EV1 |
| DCFA04-----EV1- | Replacement plate FA04 For competitor's guide rail drilling template, 15 mm, silver EV1 |
| DCFA05-----EV1- | Mounting and replacement plate FA05 For DC700G-FT, narrow frame, 5 mm, silver EV1 |
| DCFA06-----EV1- | Mounting and replacement plate FA06 For DC700G-FT, narrow frame, 15 mm, silver EV1 |
 | DCA188--------- | Backcheck A188 For slide rail G-E / G-S / G-S-M / G-FMS / G-FT / G150 / G-CO / G-CO-C / G-CO-E / G-CO-CE / G-CO-S / G-CO-S-M / G-CO-CS / G-CO-CM / G-CO-FMS / DC700G-CO-FT |
