ASSA ABLOY A176

A176

  • ArtNo: DCA176---------
  • EAN: 4042203456518

Product description

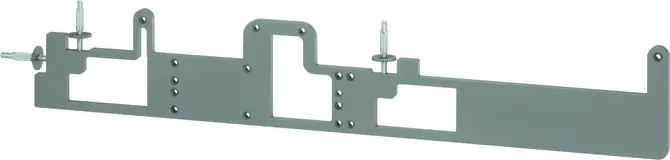

  • Universal metal drilling gauge for drilling of the fixing holes on door and frame
  • Can be used for drilling of the fixing holes on hinge side for door closers DC700, DC500, DC300, DC200, DC135 and guide rails G193, G195, G-E, G-S and link arms L190, L191
  • Can alternatively be used for fixing holes drilling for direct and DIN mounting of the door closer body acc. to Supplement 1 of DIN EN1154

Note

  • Not usable with guide rails G46x.
