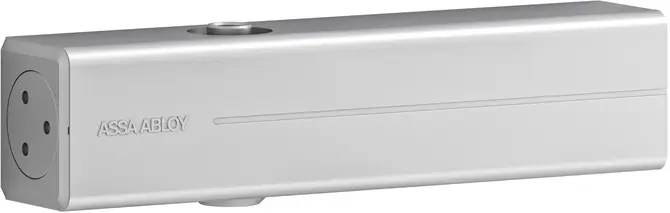

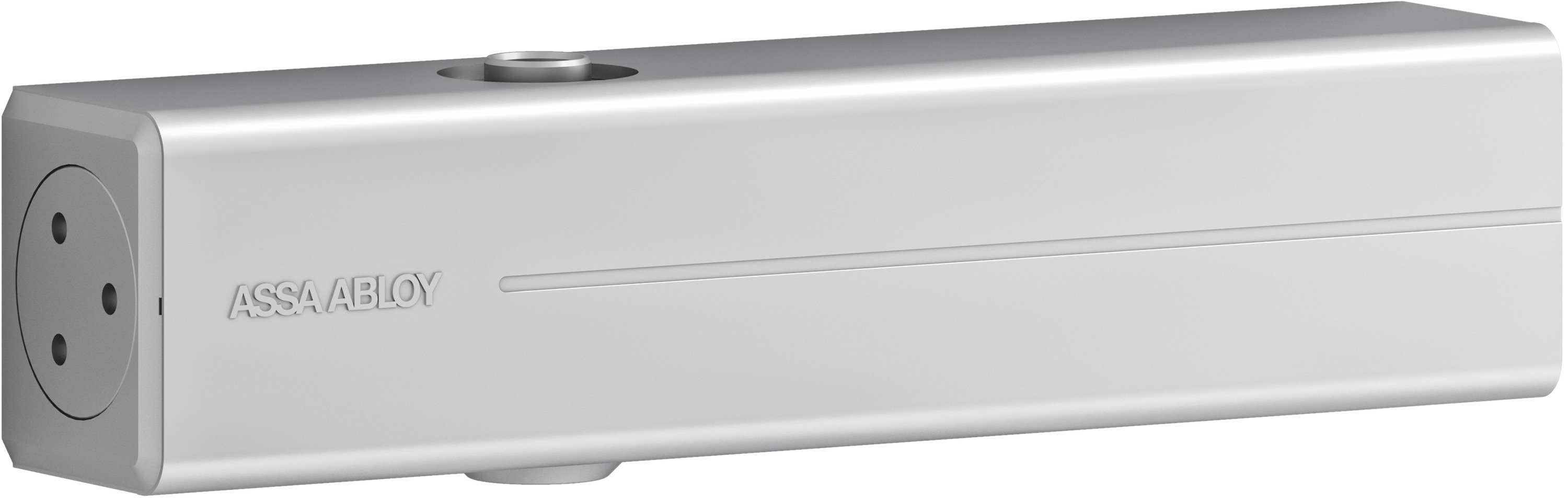

DC300 rod-type door closer

For single-leaf doors in size EN 3-6 (1,400 mm), optionally with closing delay

Can be used with concealed mounting plate, suitable for fire and smoke protection doors
Can be used for left and right-handed doors
Axis height adjustable up to 14 mm
Closing speed, latching speed and backcheck adjustable via front facing regulating valves
Thermodynamic valves for consistent performance
Variable adjustable closing force
Opening angle up to 180°
Effective backcheck and latching speed range adjustable
Accessories for established installation types
Large range of applications
Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005
Customised finishes available on request

Customer segment	Advantages
User	No reworking of door element for upgrade to tandem Largely unaffected by temperature fluctuations because of thermodynamic valves Easier door opening and improved accessibility due to reapidly decreasing torque Backcheck feature offers optimum protection for doors and walls
Builders	One drilling template overall Standard door closers DC300 can be used with tandem mounting plates Quick and easy installation Quickly and easily adjustable Suitable for left and right handed doors, in both door and frame mounted applications Easily retrofitted with minimal rework One drilling template overall Adjustable to nearly all door and frame types Quick and easy installation Quickly and easily adjustable Suitable for left and right handed doors, in both door and frame mounted applications
Trade	Reduced inventory costs due to modular product range Reduced inventory costs due to modular product range One single product suitable for a large variety of mounting positions Complementary accessories available for the whole product range
Project planners	Extensive range of uses, also for extra large and heavy doors Extensive range of uses: Fire and smoke protection doors as well as standard doors Modern design Compact design Fulfils barrier-free building requirements Same dimensions and design with and without mounting plate Comprehensive functions, standard and optional

Closing force	EN 3-6
Door width up to	1400 mm
Suitable for fire doors	Yes
DIN direction	Left / right handed
Closing speed	Variable between 180°-15°
Latching speed	Variable between 15°-0°
Backcheck effect	Variable above 75°
Delayed closing	No
Hold-open mode (with hold-open link arm L191)	Adjustable 75°-150°, can be enabled and disabled
CE marking for building products	Yes
Certified in compliance with	EN 1154
Length	260 mm
Height	60 mm
Depth	50 mm
Weight	1.9 kg
Colour	Silver EV1

	Order number	Product
	DCL190-----EV1-	Link arm L190 Silver EV1
	DCL191-----EV1-	Hold-open link arm L191 Silver EV1
	DCA120-------40	Mounting plate A120
	DCA121-----EV1-	Mounting plate A121
	DCA123-----EV1-	Angle bracket A123 For Door Closer Model DC300, silver EV1
	DCA154-----EV1-	Parallel arm bracket A154 For link arm, silver EV1
	DCA168-----EV1-	Mounting plate A168 For link arm, silver EV1
	DCA165-----EV1-	Glass door shoe A165
