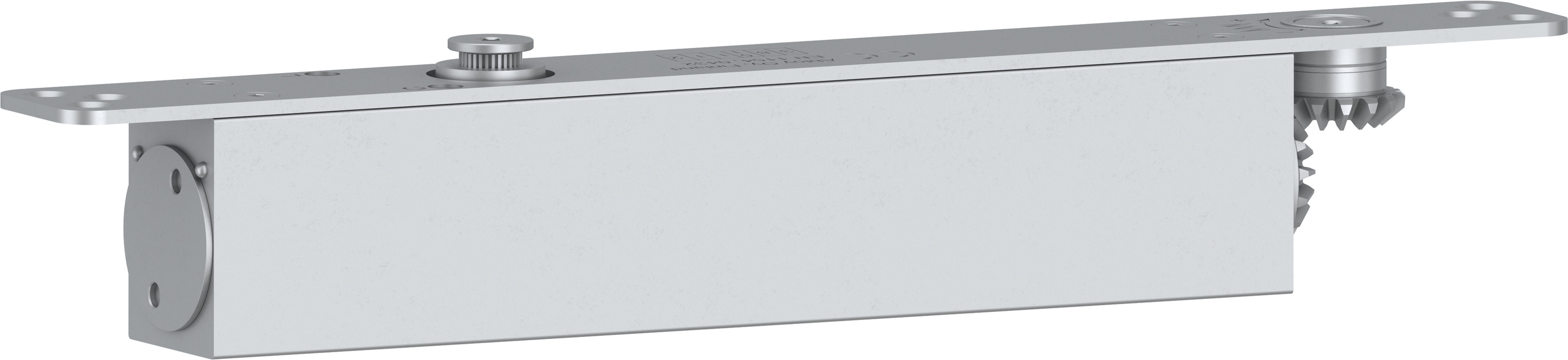

DC860 concealed door closer
For single-leaf doors up to size EN 5 (1,250 mm)
Product description
- Concealed door closer with Cam-Motion® technology and small standard concealed guide rail G892 or standard concealed guide rail G893
- Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
- Meets the requirements of DIN SPEC 1104 / CEN15894
- Approved according to DIN EN 1154, size 1-5
- Suitable for fire and smoke protection doors
- For single action doors up to 1250 mm wide
Overview of Advantages
- Can be used for left and right-handed doors
- Closing speed and latching speed adjustable from top facing regulating valves
- Built-in backcheck
- Thermodynamic valves for consistent performance
- Opening angle up to 120°
- Large range of applications
- Versions with 4 mm and 8 mm spindle extensions
- Standard colours: silver EV1
Note
- Additional verification of suitability required for the respective fire or smoke protection door
- Guide rails must be ordered separately
Characteristics of standard guide rail G892
- Small size guide rail, can be used with hold-open device and opening damper
- For standard applications

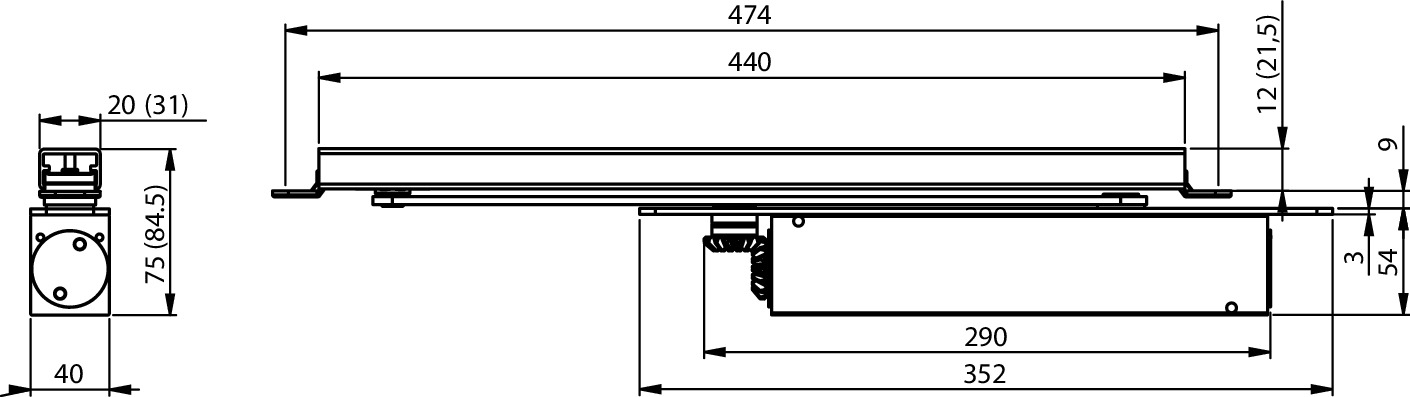

- Installation dimensions: see diagram
Characteristics of guide rail G893
- Guide rail suitable for equipping with hold-open device and opening damper
- Installation dimensions: see diagram (dimensions in brackets)
view construction details
| Customer segment | Advantages |
|---|---|
| Project planners |
|
| Builders |
|
| Trade |
|
| User |
|
| Closing force | EN 1-5 |
| Door width up to | 1250 mm |
| Suitable for fire doors | Yes |
| DIN-direction | Left / right handed |
| Max. door opening angle | ca. 120° |
| Closing speed | Variable between 120° - 7° |
| Latching speed | Variable 7° - 0° |
| Certified in compliance with | EN 1154 |
| CE marking for building products | Yes |
| Length | 290 mm |
| Height | 54 mm |
| Depth | 40 mm |
| Weight | 2,3 kg |
| Order number | Description |
|---|---|
| DC860------EV1- | EN size 1-5, silver EV1 |
| DC8604-----EV1- | EN size 1-5, spindle extension 4 mm, silver EV1 |
| DC8608-----EV1- | EN size 1-5, spindle extension 8 mm, silver EV1 |
| | Order number | Product |
|---|---|---|
 | DCG892-----EV1- | Concealed standard guide rail G892 Silver EV1 |
| DCG892-----XXXX | Concealed standard guide rail G892 Customised finish |
| DCG893-----EV1- | Concealed guide rail G893 Silver EV1 |
| DCG893-----XXXX | Concealed guide rail G893 Customised finish |
 | DCA152--------- | DCA152 A152 For Guide Rails G193/G195/G893 |
 | DCA153--------- | Backcheck A153 For Guide Rails G193/G195/G795/G893 |
 | DCA156--------- | DCA152 A156 For Guide Rail G892 |
 | DCA157--------- | Opening damper A157 For Guide Rail G892 |
 | DCA162-------40 | Mounting plate A162 |
 | DCA193--------- | Fire protection A193 A193 For DC860 |
