Bolt switch contact
VdS class C, solder connection
Product description

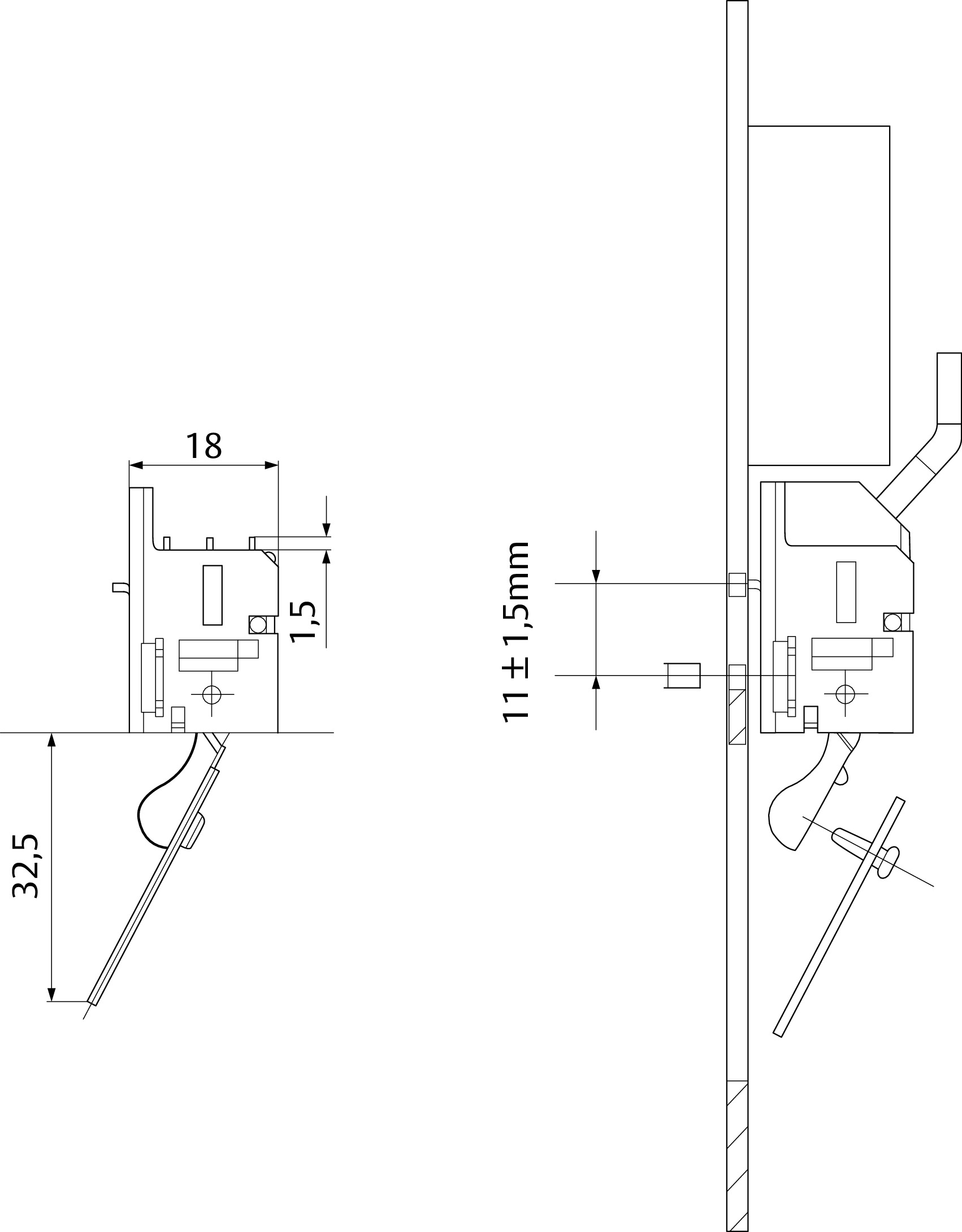

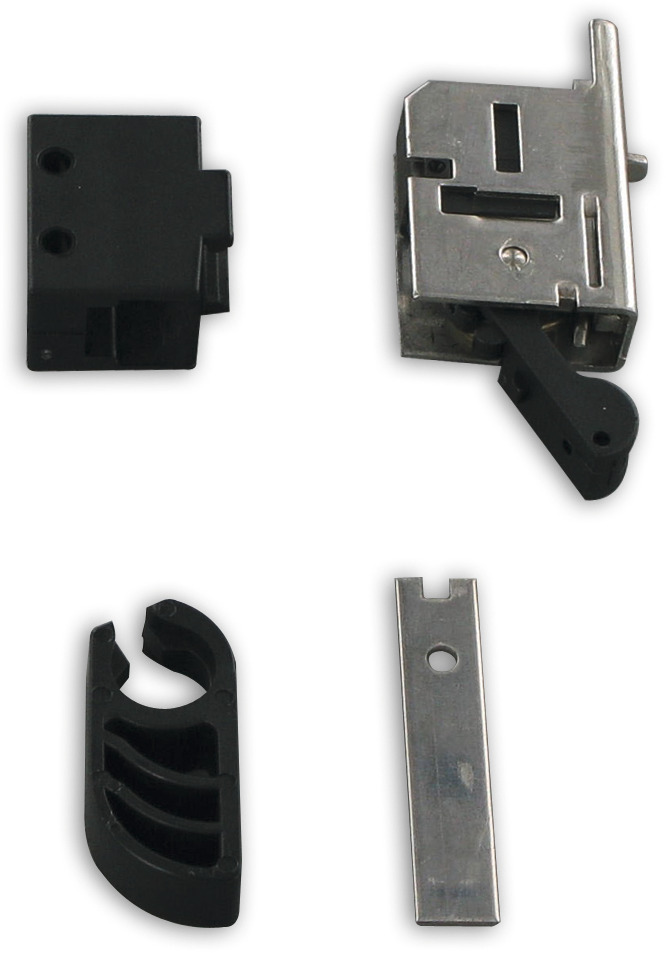

Bolt switch contact for lock monitoring with adjustable switching point and two extensions for the actuating lever.
| Max. contact load capacity | 3 W |
| Input operating voltage | max. 30 VDC |
| Max. switching current | max. 0.3 A; observe the max. contact load capacity! |
| Contact type | Change-over contact |
| VdS class | Class C |
| Class of protection | IP 50 |
| Connection | Solder connection |
| Operating temperature range | -5 °C to +50 °C |
