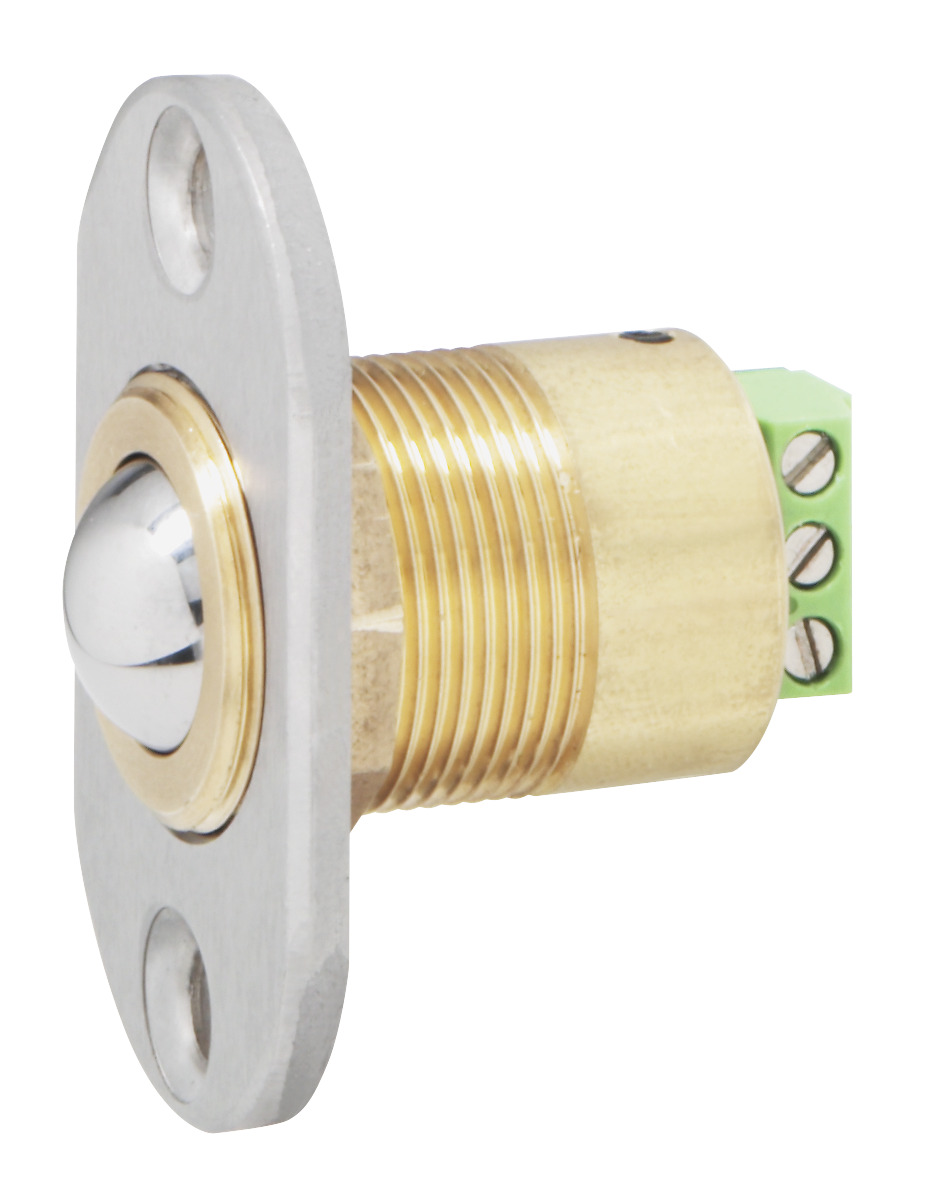

Conical contact
With screw-type terminals; curved end face plate
Product description
This new door contact is a further development of the familiar model 10400. It is characterized particularly by its hardwearing design with steel ball and screw thread for flexible setting to a wide range of different door geometries.
Overview of Advantages
- High switching output
- Steplessly adjustable
- Long service life
Scope of delivery
- 1 conical contact
| Max. contact load capacity | 25 V AC/DC; 1 A |
| Class of protection | IP 40 |
| Response path | 1 mm |
| Adjustment path | 13 mm |
| Diameter | 18 mm |
| Connection | Screw terminals |
| Life span | 1 M switching cycles |
| Forend shape | Radius faceplate |
| Contact type | Change-over contact |
