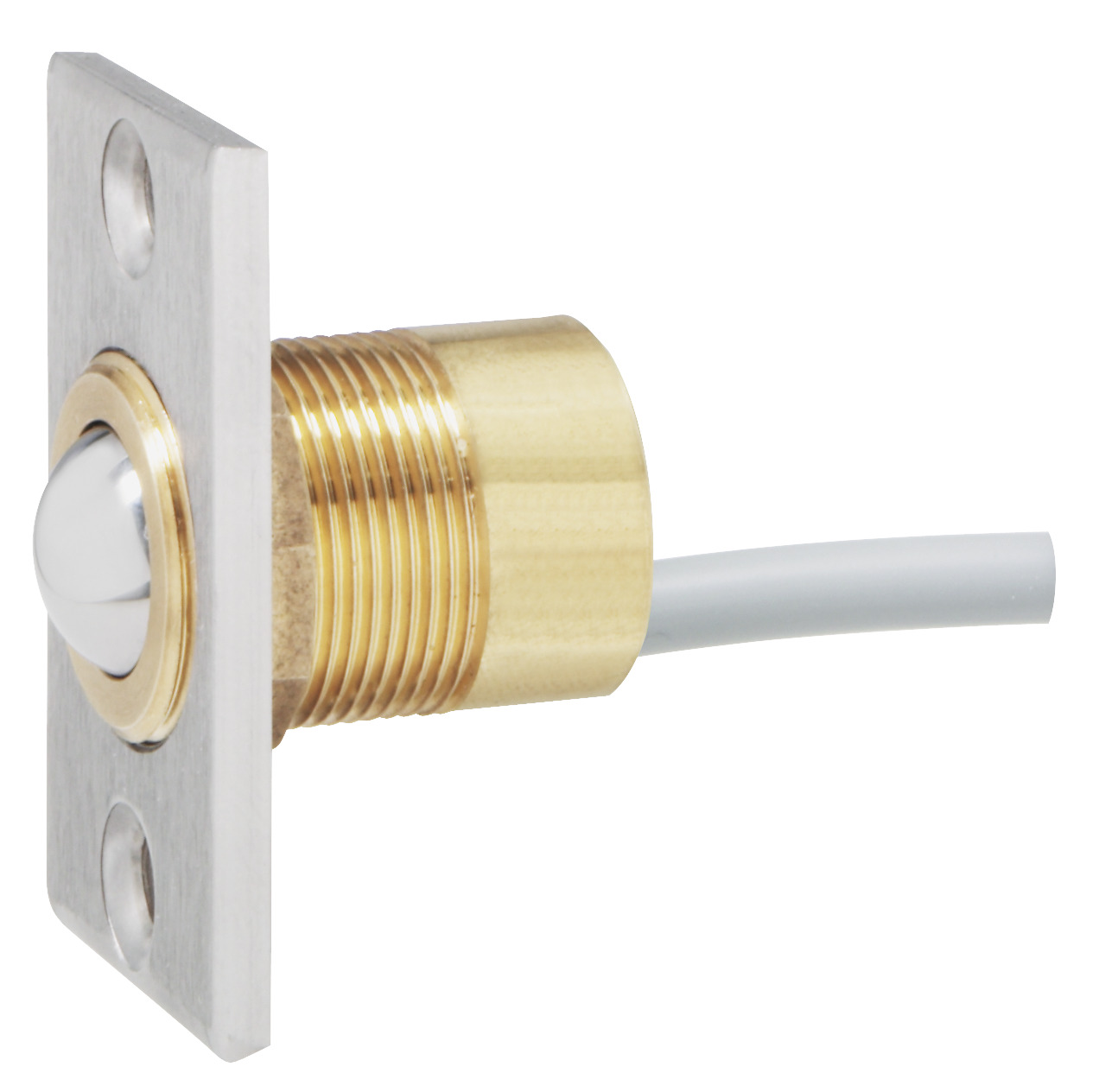

Conical contact 10405.10
With connection cable
Product description
It is characterized particularly by its hardwearing design with steel ball and screw thread for flexible setting to a wide range of different door geometries.
| Class of protection | IP 40 |
| Response path | 1 mm |
| Adjustment path | 13 mm |

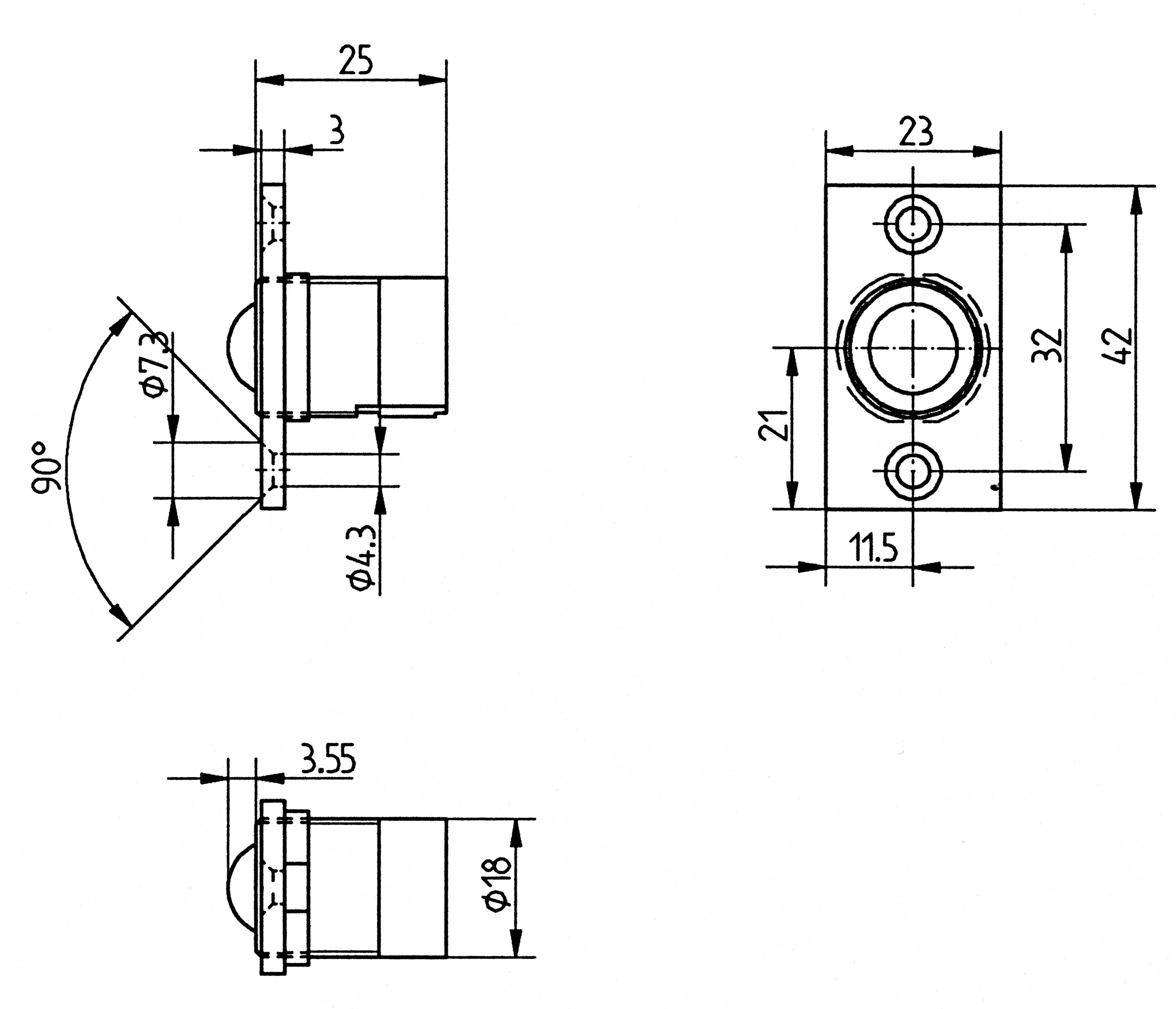

| Diameter | 18 mm |
| Connection | Connecting cable |
| Number of wires | 3 wire |
| Life span | 1 M switching cycles |
| Order number | Description |
|---|---|
| 10405.10-----00 | With connection cable; length 4 m; angled forend |
| 10405.10R----00 | With connection cable; length 4 m; radius forend |
