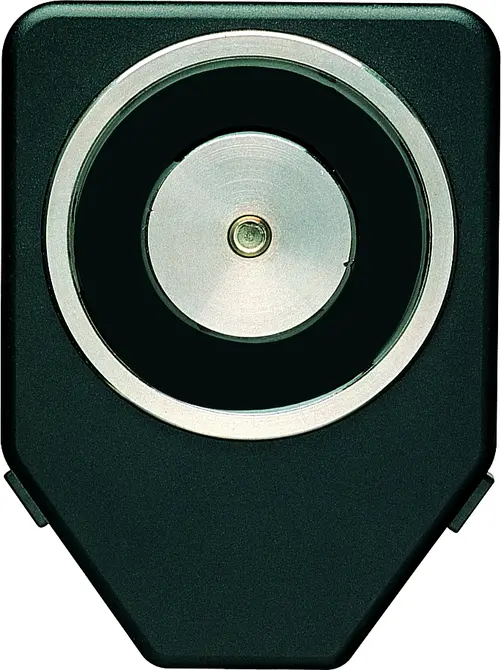

Holding magnet 830xxIS/U
Product description
Holding magnets in plastic housing for surface mounting, with optional interrupter push-button
| Supply voltage | 24 V DC |
| Current consumption at 24 V | Model 830-3: 300 N / 20 mA; Model 830-5: 500 N / 25 mA; Model 830-8: 800 N / 45 mA; Model 83012: 1200 N / 105 mA |
| Operating temperature range | 0 to +50 °C |
| Certified in compliance with | EN 1155 |

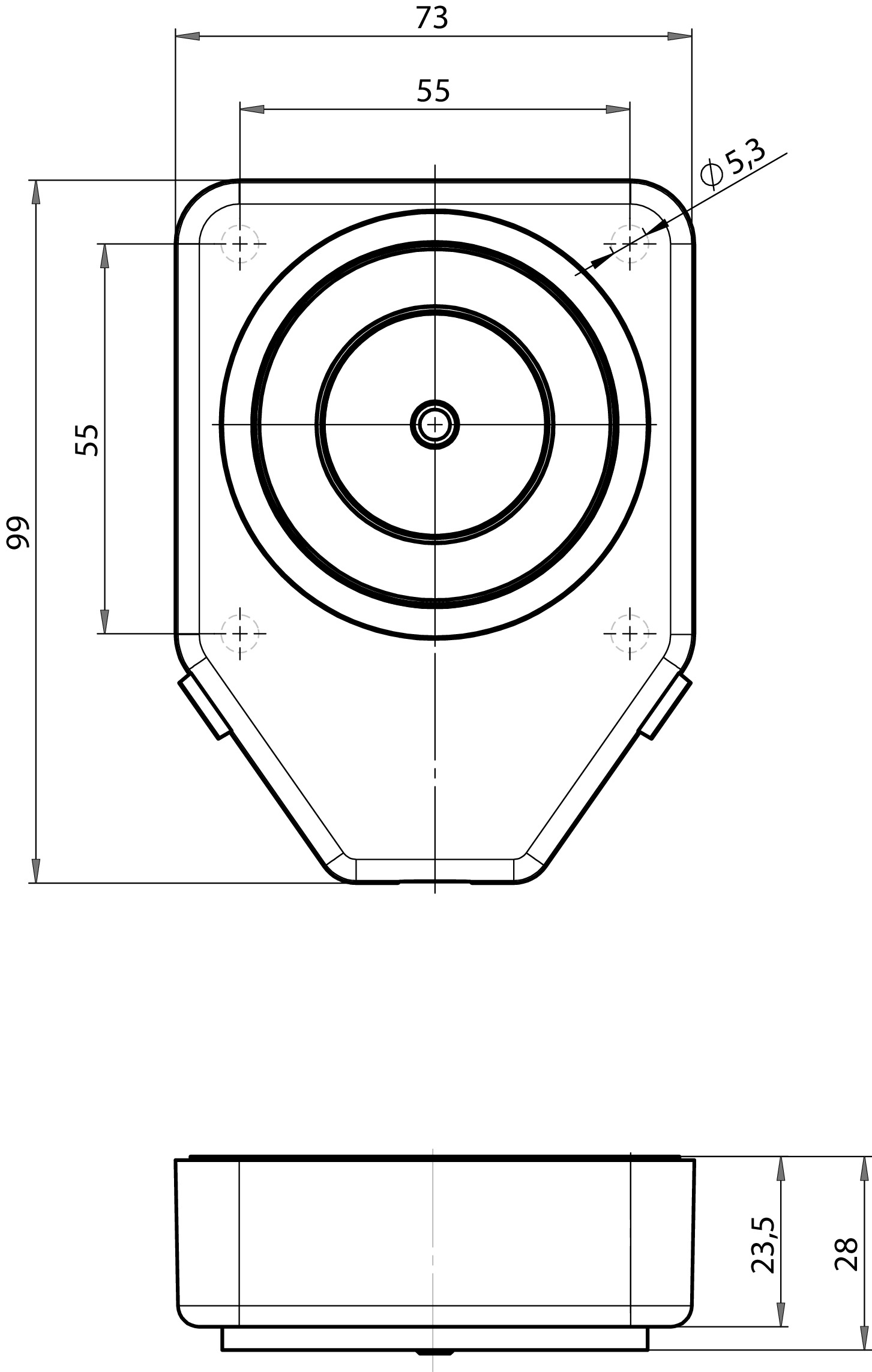

| Height | 99 mm |
| Width | 73 mm |
| Depth | 28 mm |
| Continous duty | 100 % ED |
| Class of protection | IP 40 |
| Order number | Description |
|---|---|
| 830-3IS-----F90 | In plastic housing, 300 N holding force |
| 830-5IS-----F90 | In plastic housing, 500 N holding force |
| 830-8IS-----F90 | In plastic housing, 800 N holding force |
| 83012IS-----F90 | In plastic housing, 1200 N holding force |
| 830-3ISU----F90 | In plastic housing with interrupter push-button, 300 N holding force |
| 830-5ISU----F90 | In plastic housing with interrupter push-button, 500 N holding force |
| 830-8ISU----F90 | In plastic housing with interrupter push-button, 800 N holding force |
| 83012ISU----F90 | In plastic housing with interrupter push-button, 1,200 N holding force |
