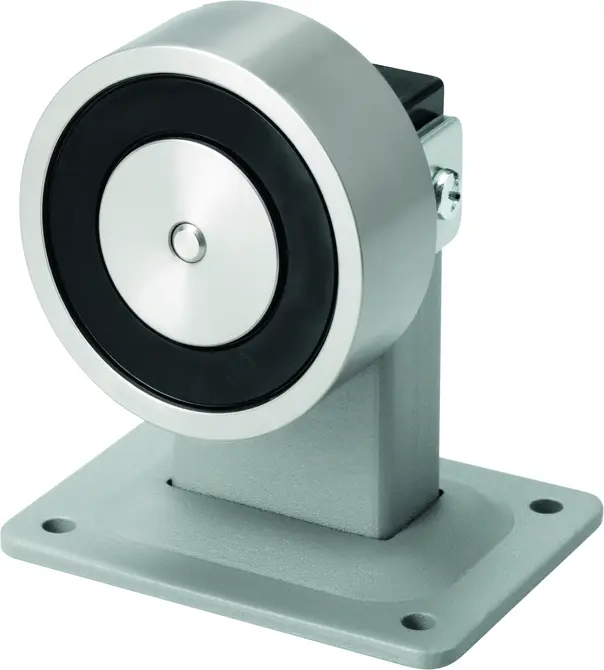

Holding magnet 830xxBWK/U
Product description
Holding magnets with spacers. Convertible for wall or floor mount, with optional interrupter pushbutton
| Supply voltage | 24 V DC |
| Current consumption at 24 V | Model 830-3: 300 N / 20 mA; Model 830-5: 500 N / 25 mA; Model 830-8: 800 N / 45 mA; Model 83012: 1200 N / 105 mA |
| Mounting method | floor/wall mounting |
| Operating temperature range | 0 to +50 °C |
| Certified in compliance with | EN 1155 |
| Continous duty | 100 % ED |
| Class of protection | IP 40 |

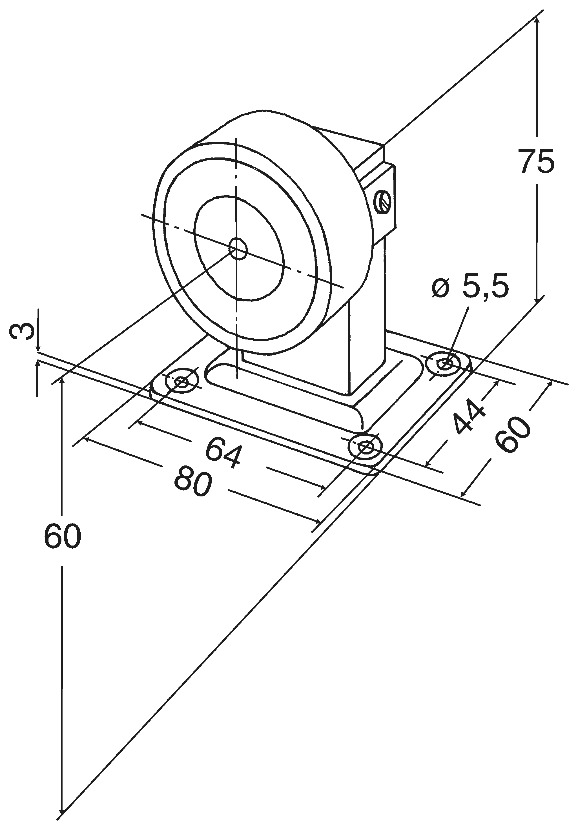

| Wall spacing | 98 mm |
| Floor spacing | 60 mm |
| Order number | Description |
|---|---|
| 830-3BWK----F90 | Floor/ wall mount; holding force: 300 N; floor clearance: 60 mm; wall clearance: 98 mm |
| 830-5BWK----F90 | Floor/ wall mount; holding force: 500 N; floor clearance: 60 mm; wall clearance: 98 mm |
| 830-8BWK----F90 | Floor/ wall mount; holding force: 800 N; floor clearance: 60 mm; wall clearance: 98 mm |
| 83012BWK----F90 | Floor/ wall mount; holding force: 1200 N; floor clearance: 60 mm; wall clearance: 98 mm |
| 830-3BWKU---F90 | Floor/ wall mount; holding force: 300 N; floor clearance: 60 mm; wall clearance: 98 mm. interrupter push-button |
| 830-5BWKU---F90 | Floor/ wall mount; holding force: 500 N; floor clearance: 60 mm; wall clearance: 98 mm, interrupter push-button |
| 830-8BWKU---F90 | Floor/ wall mount; holding force: 800 N; floor clearance: 60 mm; wall clearance: 98 mm, interrupter push-button |
| 83012BWKU---F90 | Floor/ wall mount; holding force: 1200 N; floor clearance: 60 mm; wall clearance: 98 mm. interrupter push-button |
