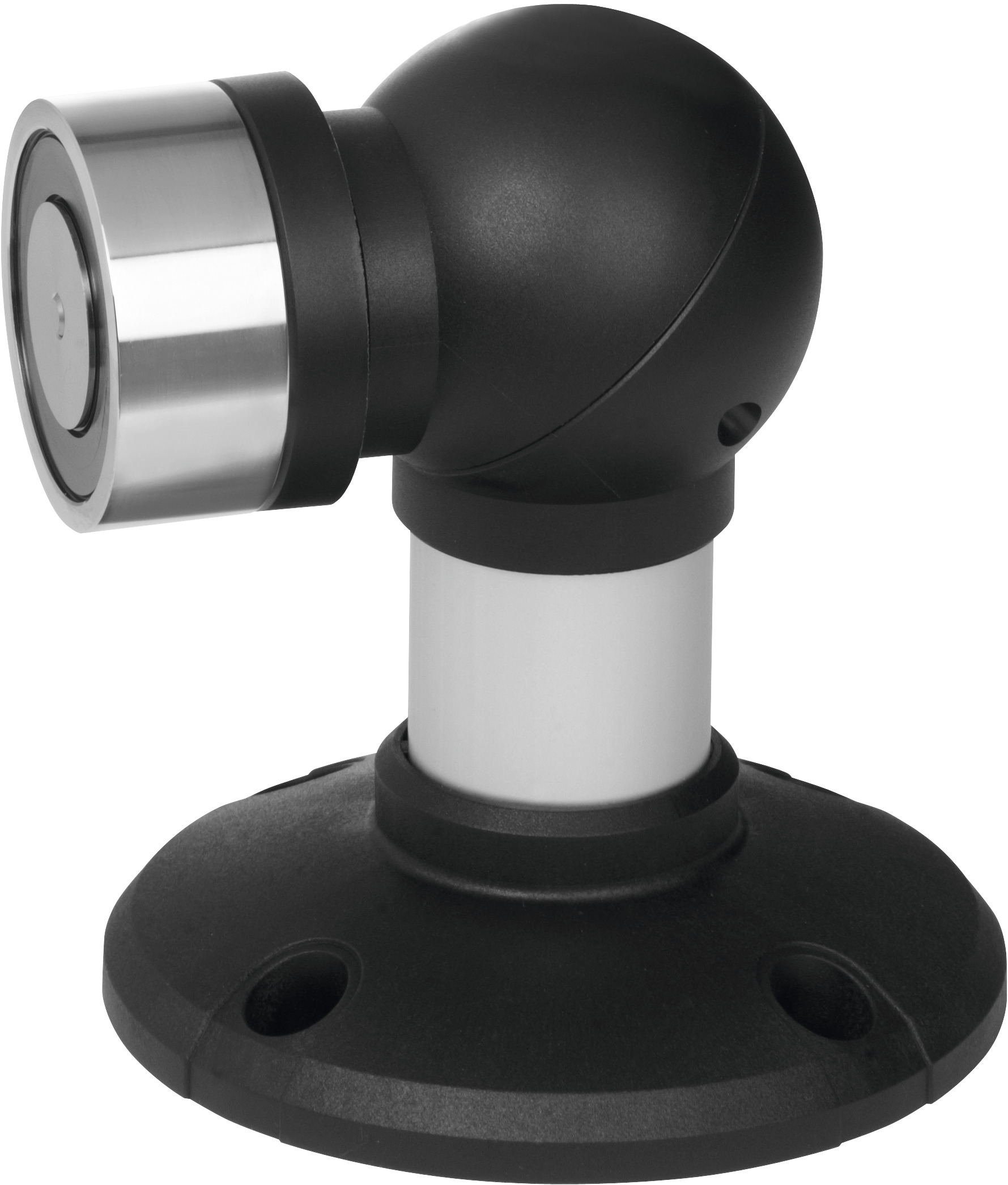

Holding magnet
Floor/ wall mount; holding force: 1200 N; floor clearance: 110 mm; wall clearance: 190 mm
Product description
Holding magnet with spacer convertible for wall or floor mounting. Optionally with integrated interrupter push-button and with integrated shock absorber to ensure door comes to a soft stop.
| Supply voltage | 24 V DC |
| Current consumption at 24 V | Model 830-3: 300 N / 20 mA; Model 830-5: 500 N / 25 mA; Model 830-8: 800 N / 45 mA; Model 83012: 1200 N / 105 mA |
| Mounting method | floor/wall mounting |
| Operating temperature range | 0 to +50 °C |
| Certified in compliance with | EN 1155 |
| Continous duty | 100 % ED |
| Wall clearance without shock absorbers | 190 mm; 215 mm |
| Class of protection | IP 40 |
| Floor spacing | 110 mm |
| Wall clearance with shock absorber | 215 mm |
| Holding force | 1200 N |
