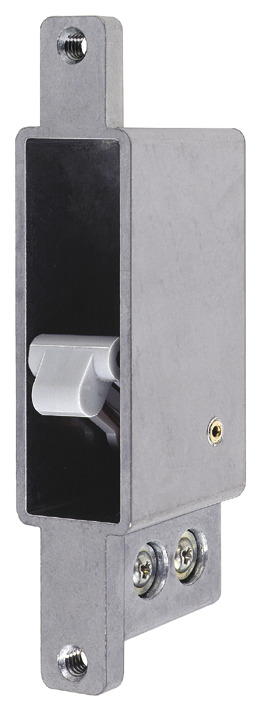

Bolt switch contact
Without strike plate; with 4 meter connecting cable
Product description
Due to the closed design of the housing, the dead bolt cutout is closed at the back as a special feature for steel frames and profiles. The profile interior is not visible. The dead bolt switch contact is first installed on the striking plate, then the strike plate will be fixed on the frame.
Overview of Advantages
- The profile interior is not visible
Scope of delivery
- Bolt switch contact
Note
- Without strike plate
| Max. switching voltage | 25 V AC/DC |
| Switching contact | Change-over contact |
| Dead bolt penetration | 18 mm |
| Class of protection | IP 54 |
| Response path | 4 mm |
| Connecting cable | 4 m |
| Max. switching current | 2 A |
