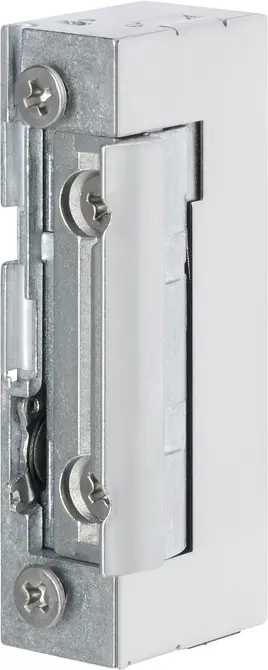

Dummy component
Without strike plate
Product description
Dummy component with no electrical function, with mechanical unlocking (daytime unlocked mode) and FaFix® screw-on attachment 1.5 mm thicker.
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm
- Compatible with current mortise locks
- Compatible with available striking plates
- Symmetrical design. DIN left/right as well as horizontal applicable
| DIN-direction | universal |
| Adjustable keeper (FF, FaFix®) | Yes |
| Mechanical unlocking (E) | Yes |

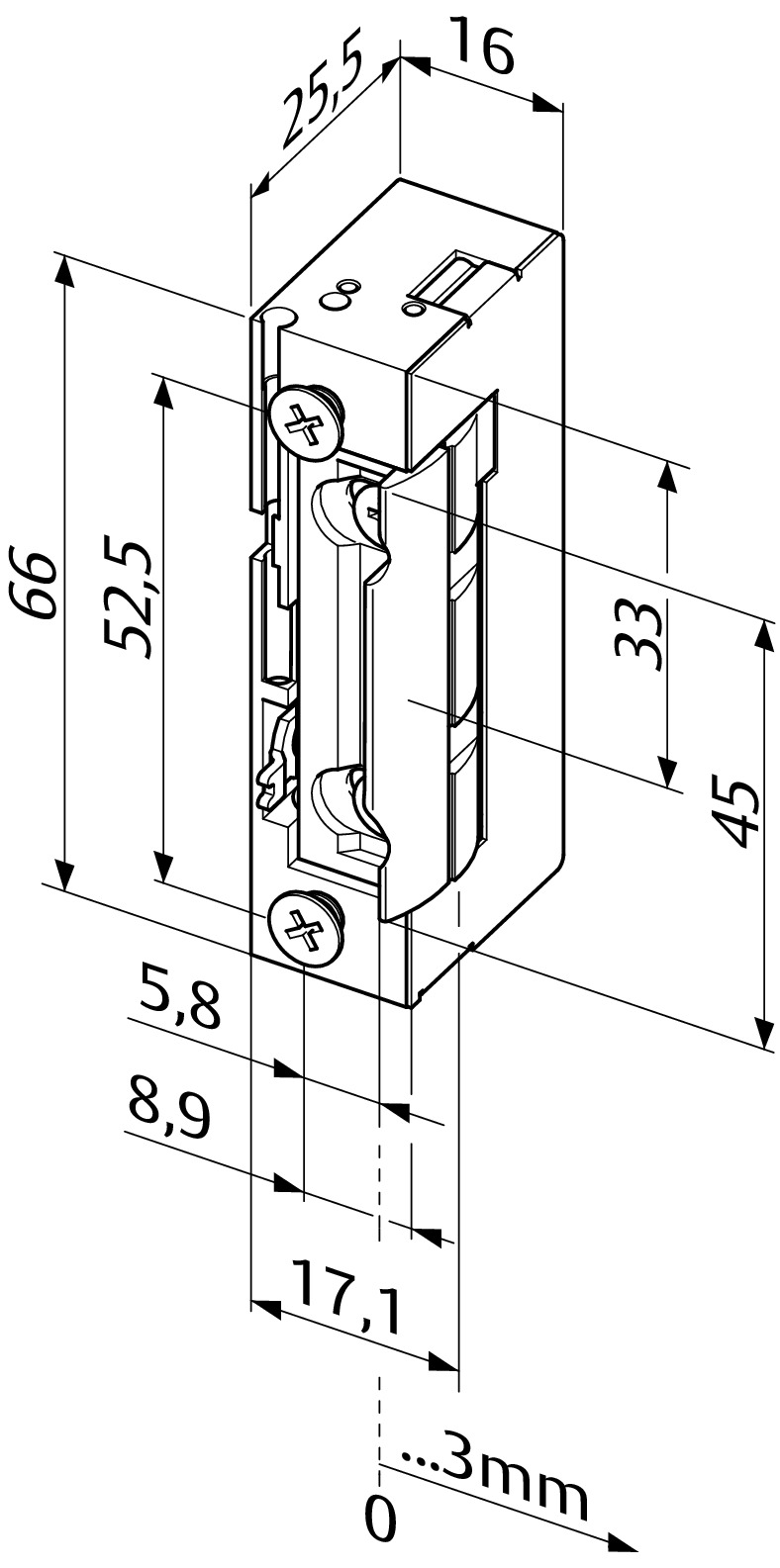

| Depth | 16 mm |
| Width | 26 mm |
| Height | 66 mm |
| FaFix® adjustment range | 3 mm |
| Latch bolt engaging depth | 5.5 mm |
| Installation position | Vertical and horizontal |
