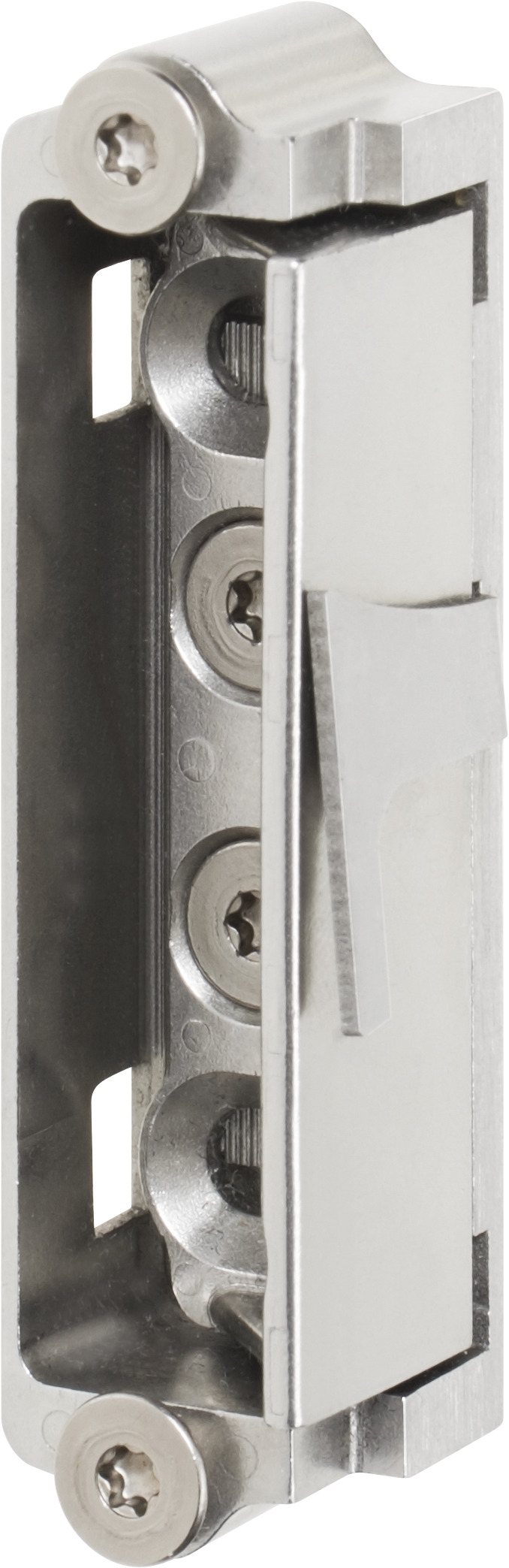

Dummy component 1410-F6 Feuerschutz/Fire protection ProFix® 2
Dummy component without striking plate; DIN universal handed
Product description
Dummy component with no electrical function, with two FaFix® adjustment ranges and latch guide for ProFix® 2 striking plates
Suitable for OneSystem striking plates: N6XXX
Overview of Advantages
- To be pre-equipped for model series 118F ProFix®2, 118S ProFix®2 and 143 ProFix®2
- Suitable for left and right handed doors
- Compatible with ProFix® 2 strike plates
- Two FaFix® adjustment ranges for a total of 5 mm adjustment path
- Suitable for locks with flip latches
- 11 mm depth of engagement
Note
- Universally applicable
- The special latch bolt guide can be installed or removed on site.
- Suitable for resistance class RC3
| DIN-direction | universal |
| Adjustable keeper (FF, FaFix®) | Yes |

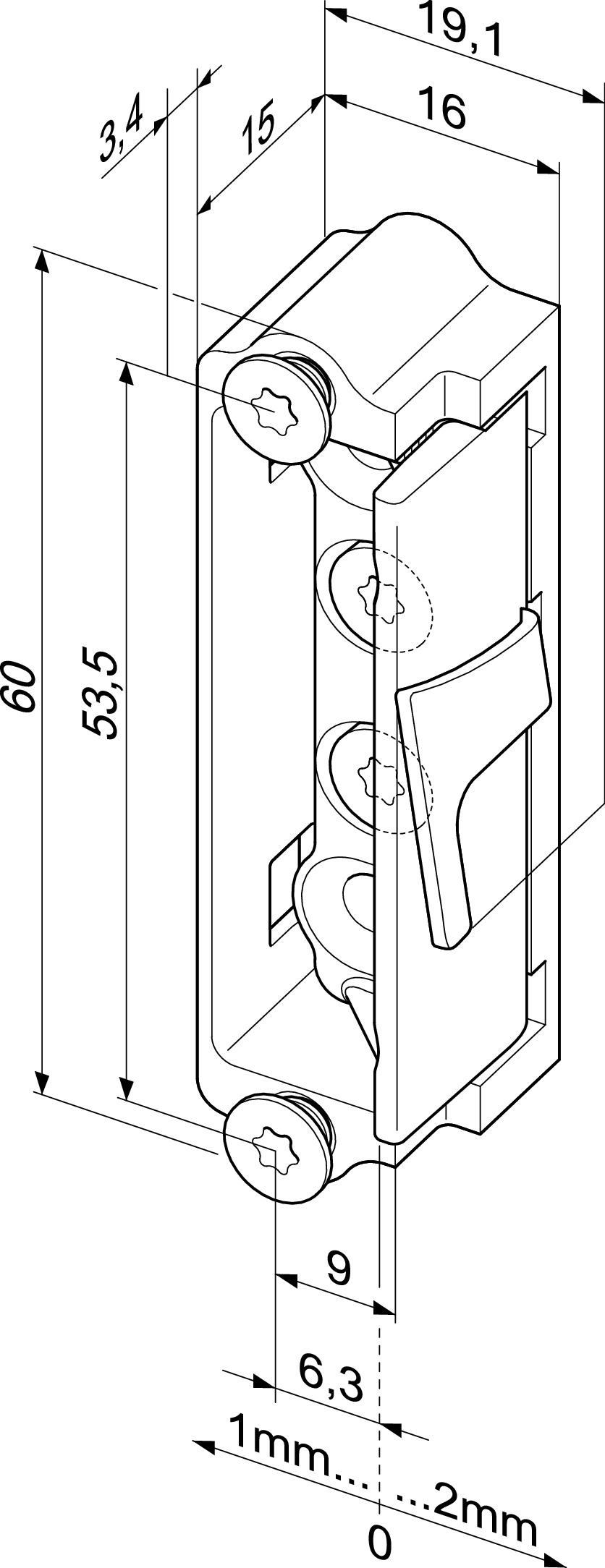

| Height | 60 mm |
| Width | 19.1 mm |
| Depth | 15 mm |
| FaFix_adjustment range | Adjustment range 1 (screws mounted on inside) = 5.3 – 8.3 mm, same as 118F.13 electric strike, adjustment range 2 (screws mounted on outside) = 8.3 – 10.3 mm |
| Certified in compliance with | EN 14846:2008 |
