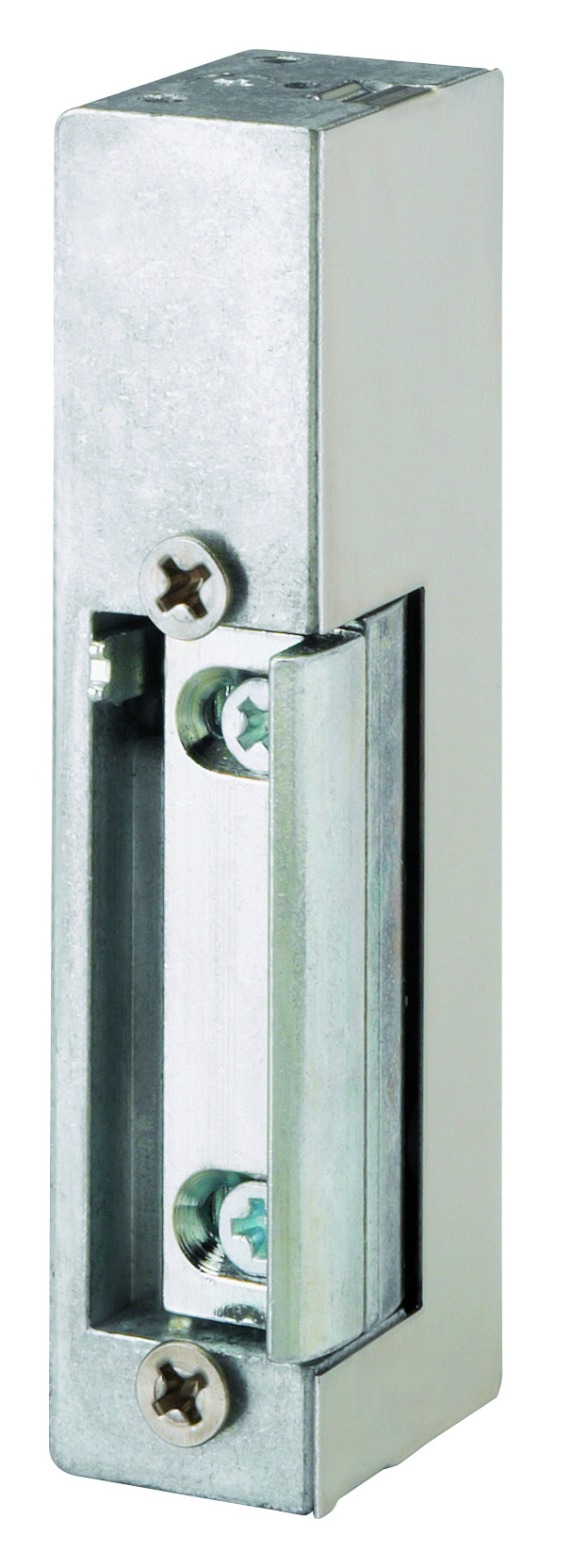

Electric strike 14EFF

Product description

Model with adjustable FaFix® latch and mechanical unlocking (for daytime unlocking).

Overview of Advantages

  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
  • Due to 180° fitting, can be used DIN right and left

Note

  • Order code for version DIN right = 14AEFF
Technical data
Adjustable keeper (FF, FaFix®)Yes
Mechanical unlocking (E)Yes
Fail-lockedYes
Break-in resistance4000 N
Height90 mm
Width20 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingZinc die-cast
Latch materialZinc die-cast
Variants that can be ordered
Order number
Description
14EFF-------D11Without strike plate, 6-12 V AC/DC
14EFF-------R11Without face plate, 8-16 V AC/DC
14EFF-------F11Without face plate, 24 V AC/DC
14EFF-------E31Without striking plate, 12 V DC electric unlocking
14EFF-------F31Without striking plate, 24 V DC electric unlocking
14EFF-------C31Without striking plate, 8V DC electric unlocking
