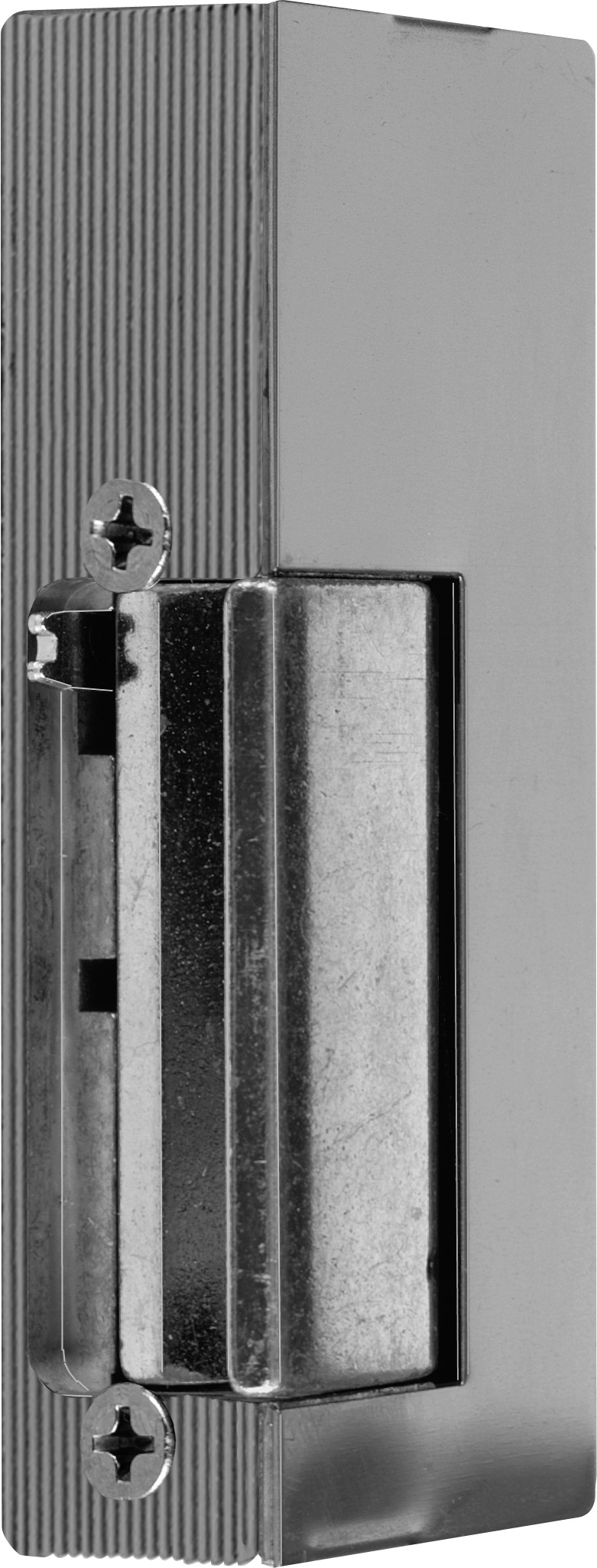

Electric strike 1405EF

Product description

Model with recovery diode for access control systems and mechanical permanent unlocking system in keeper. Door strike can be adjusted in the striking plate, thus making installation work a great deal easier.

Overview of Advantages

  • The universal strike in a solid design
  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
  • Due to 180° fitting, can be used DIN right and left
Technical data
Adjustable electric strike (F, Fix®)Yes
Mechanical unlocking (E)Yes
Diode (05)Yes
Fail-lockedYes
Break-in resistance6500 N
Height90 mm
Width20 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingZinc die-cast
Latch materialSteel
Variants that can be ordered
Order number
Description
1405EF------E31Without striking plate, 12 V DC electric unlocking
1405EF------F31Without striking plate, 24 V DC electric unlocking
