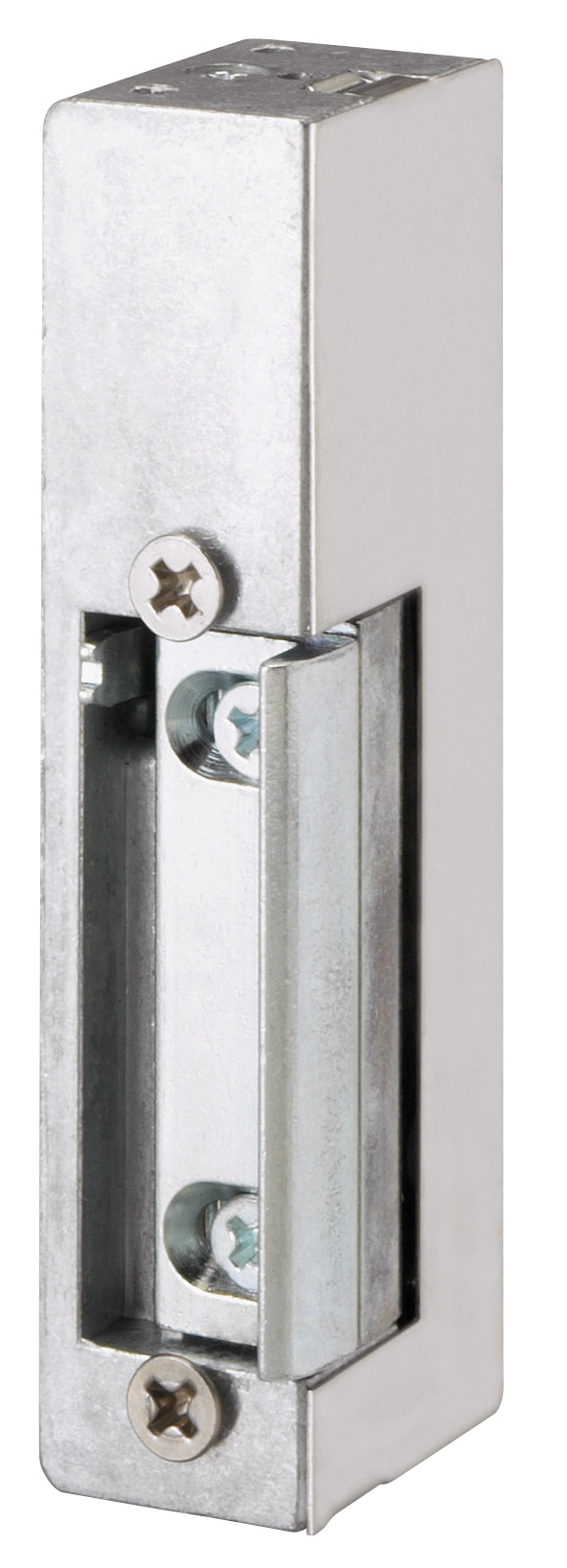

Electric strike 1405EFF
Product description
Model with recovery diode for access control systems and a mechanical permanent unlocking function. Adjustable FaFix® latch which features keeper alignment.
Overview of Advantages
- The universal strike in a solid design
- Suitable for all common striking plates
- Can be combined with striking plates with latch bolt guide (standard) without FaFix®
- Due to 180° fitting, can be used DIN right and left
Adjustable keeper (FF, FaFix®) | Yes |
Mechanical unlocking (E) | Yes |
Diode (05) | Yes |
Fail-locked | Yes |
Break-in resistance | 4000 N |
Height | 90 mm |
Width | 20 mm |
Depth | 28 mm |
Operating temperature range | -15 °C to +40 °C |
Installation position | Vertical and horizontal |
Material housing | Zinc die-cast |
Latch material | Zinc die-cast |
Material screw-on attachment | Zinc die-cast |
Order number | Description |
---|---|
1405EFF-----E31 | Without striking plate, 12 V DC electric unlocking |
1405EFF-----F31 | Without striking plate, 24 V DC electric unlocking |
