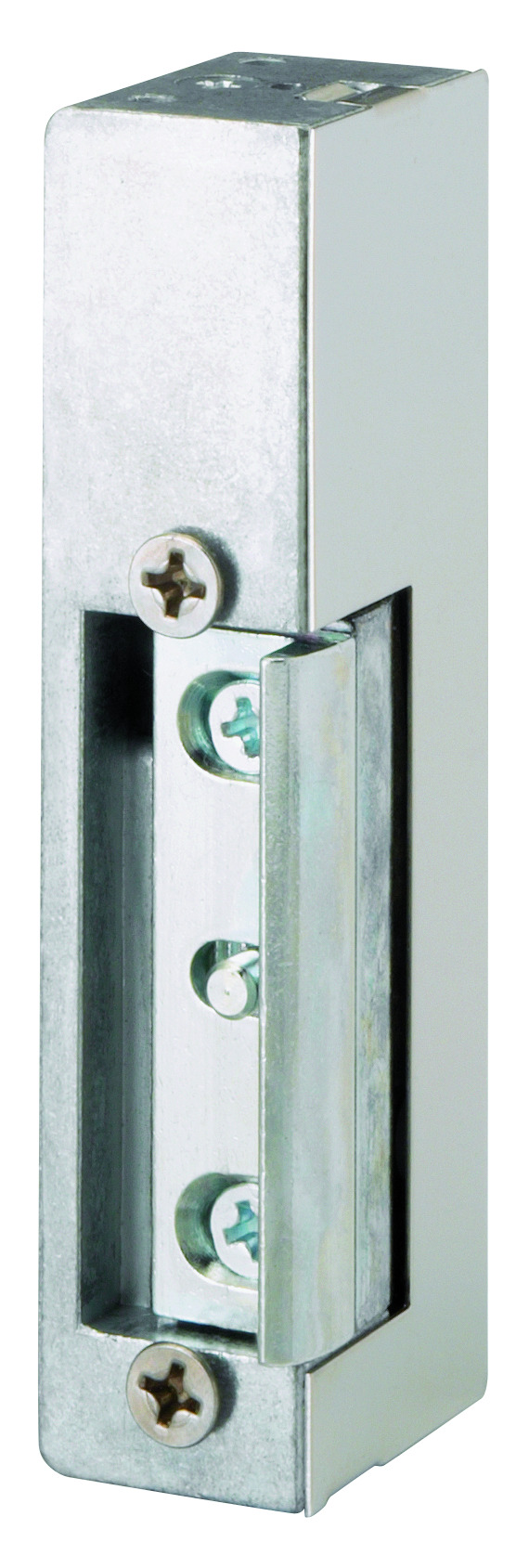

Electric strike 24FF
Product description
Model with adjustable FaFix® latch which features keeper alignment.
Overview of Advantages
- Can be combined with striking plates with latch bolt guide (standard) without FaFix®
- Due to 180° fitting, can be used DIN right and left
Note
- Order code for version DIN right = 24AFF
Adjustable keeper (FF, FaFix®) | Yes |
Fail-locked | Yes |
Hold-open function | Yes |
Break-in resistance | 4000 N |
Height | 90 mm |
Width | 20 mm |
Depth | 28 mm |
Operating temperature range | -15 °C to +40 °C |
Material housing | Zinc die-cast |
Latch material | Zinc die-cast |
Material screw-on attachment | Zinc die-cast |
Order number | Description |
---|---|
24FF--------D11 | Without strike plate, 6-12 V AC/DC |
24FF--------R11 | Without face plate, 8-16 V AC/DC |
24FF--------F11 | Without face plate, 24 V AC/DC |
24FF--------E31 | Without striking plate, 12 V DC electric unlocking |
24FF--------F31 | Without striking plate, 24 V DC electric unlocking |
24FF--------C31 | Without striking plate, 8V DC electric unlocking |
