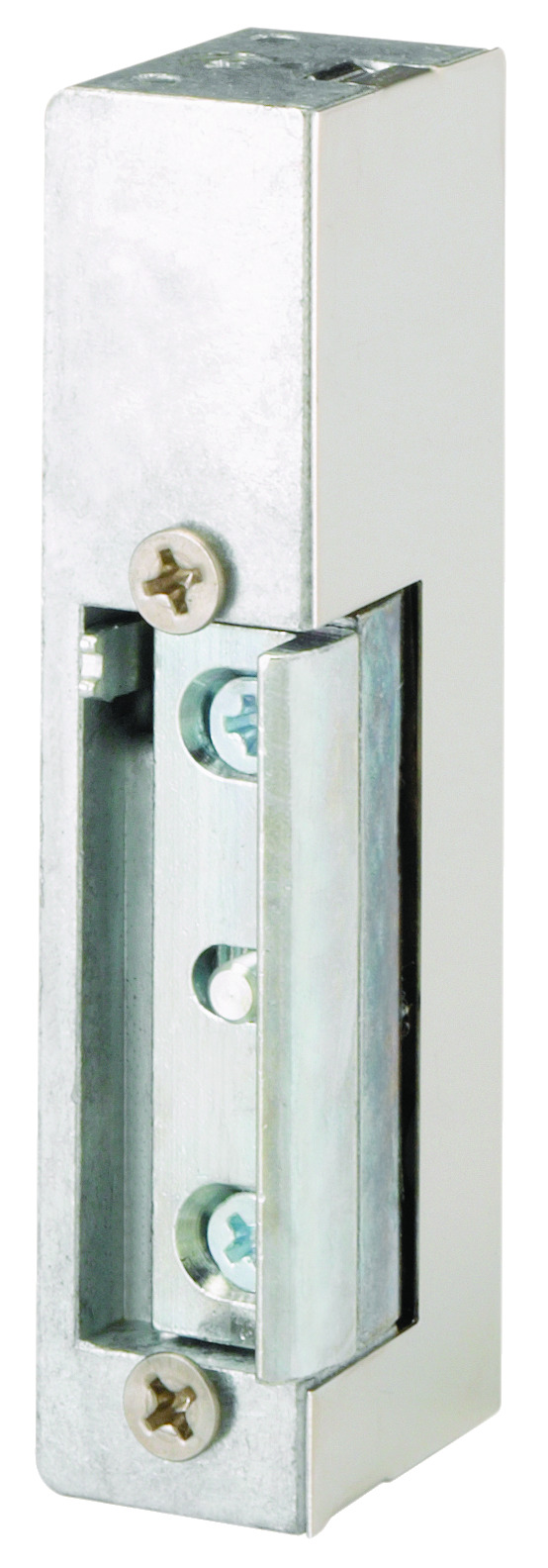

Electric strike 24EFF

Product description

Model with adjustable FaFix® latch and mechanical unlocking (for daytime unlocking).

Overview of Advantages

  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
  • Due to 180° fitting, can be used DIN right and left

Note

  • Order code for version DIN right = 24AEFF
Technical data
Adjustable keeper (FF, FaFix®)Yes
Mechanical unlocking (E)Yes
Fail-lockedYes
Hold-open functionYes
Break-in resistance4000 N
Height90 mm
Width20 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Material housingZinc die-cast
Latch materialZinc die-cast
Material screw-on attachmentZinc die-cast
Variants that can be ordered
Order number
Description
24EFF-------D11Without strike plate, 6-12 V AC/DC
24EFF-------R11Without face plate, 8-16 V AC/DC
24EFF-------F11Without face plate, 24 V AC/DC
24EFF-------E31Without striking plate, 12 V DC electric unlocking
24EFF-------F31Without striking plate, 24 V DC electric unlocking
24EFF-------C31Without striking plate, 8V DC electric unlocking
