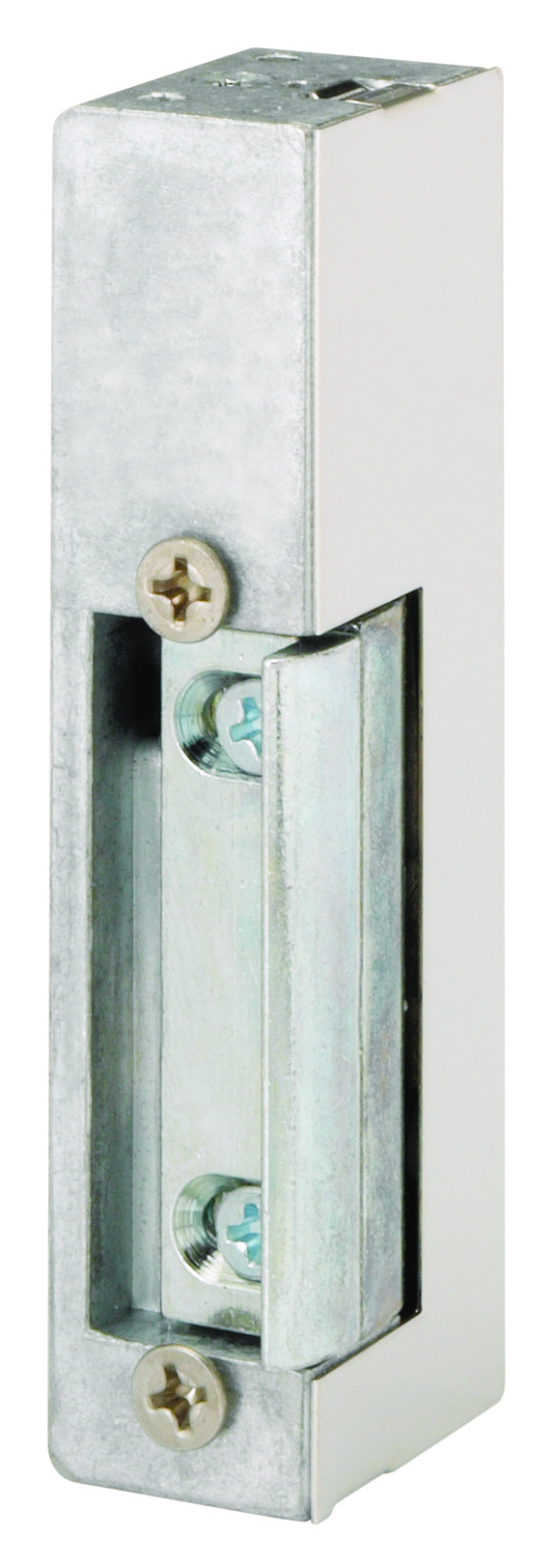

Electric strike 34FF

Product description

Model with adjustable FaFix® latch which features keeper alignment.

Overview of Advantages

  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
  • Due to 180° fitting, can be used DIN right and left

Note

  • Order code for version DIN right = 34AFF
Technical data
Adjustable keeper (FF, FaFix®)Yes
Fail-unlockedYes
Break-in resistance4000 N
Height90 mm
Width20 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Material housingZinc die-cast
Latch materialZinc die-cast
Material screw-on attachmentZinc die-cast
Variants that can be ordered
Order number
Description
34FF--------E91Without striking plate, 12 V DC
34FF--------F91Without striking plate, 24 V DC
34FF--------I91Without striking plate, 48 V DC electric unlocking
