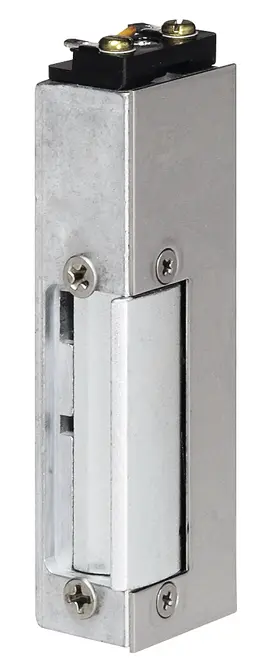

Electric strike 34S

Product description

Model with reversible design. The advantage lies in the fact that the connection also points upwards in the DIN-right version. This means the cable conduit is not near the deadbolt.

Overview of Advantages

  • The minimum gap between the keeper and casing lower surface enables DL and DR designs to be combined with locks which contain a minimum latch deadbolt clearance.
  • For striking plates with minimum latch deadbolt clearance
  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
Technical data
Fail-unlockedYes
Break-in resistance5500 N
Height104 mm
Width20.5 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Material housingZinc die-cast
Latch materialZinc die-cast
Variants that can be ordered
Order number
Description
34S---------E94Without striking plate, 12 V DC
34S---------E95Without striking plate, 12 V DC
34S---------F94Without striking plate, 24 V DC
34S---------F95Without striking plate, 24 V DC
