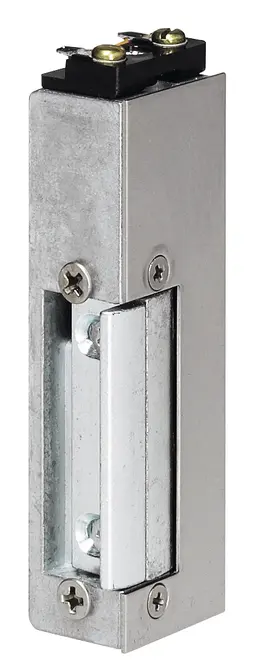

Electric strike 34SFF

Product description

Model with reversible design. The advantage of this design is that the connection also points upwards in the DIN right version. This means the cable conduit is not placed near the deadbolt. Adjustable FaFix® latch which features keeper alignment.

Overview of Advantages

  • The universal strike in a solid design
  • The minimum gap between the keeper and casing lower surface enables DL and DR designs to be combined with locks which contain a minimum latch deadbolt clearance.
  • For striking plates with minimum latch deadbolt clearance
  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
Technical data
Adjustable keeper (FF, FaFix®)Yes
Fail-unlockedYes
Break-in resistance4000 N
Height104 mm
Width20.5 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Material housingZinc die-cast
Latch materialZinc die-cast
Material screw-on attachmentZinc die-cast
Variants that can be ordered
Order number
Description
34SFF-------E94Without striking plate, 12 V DC
34SFF-------E95Without striking plate, 12 V DC
34SFF-------F94Without striking plate, 24 V DC
34SFF-------F95Without striking plate, 24 V DC
