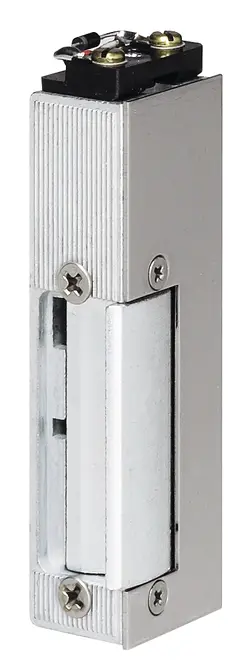

Electric strike 34SF

Product description

Model with reversible design. The advantage lies in the fact that the connection also points upwards in the DIN right version. This means the cable conduit is not near the deadbolt. Door strike can be adjusted in the striking plate, thus making installation work a great deal easier.

Overview of Advantages

  • The universal strike in a solid design
  • The minimum gap between the keeper and casing lower surface enables DL and DR designs to be combined with locks which contain a minimum latch deadbolt clearance.
  • For striking plates with minimum latch deadbolt clearance
  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
Technical data
Adjustable electric strike (F, Fix®)Yes
Fail-unlockedYes
Length28,2 mm
Break-in resistance5500 N
Operating temperature range-15 °C to +40 °C
Variants that can be ordered
Order number
Description
34SF--------E94Without striking plate, 12 V DC
34SF--------E95Without striking plate, 12 V DC
34SF--------F94Without striking plate, 24 V DC
34SF--------F95Without striking plate, 24 V DC
