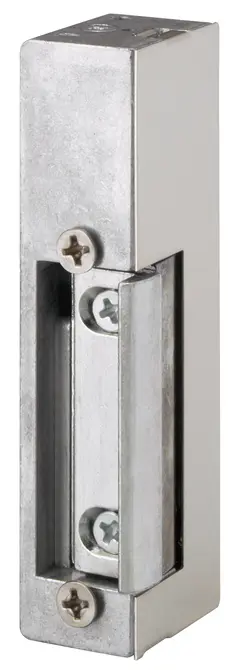

Electric strike 3405FF

Product description

Model with recovery diode for access control systems. With adjustable FaFix® latch and keeper alignment.

Overview of Advantages

  • The universal strike in a solid design
  • Suitable for all common striking plates
  • Can be combined with striking plates with latch bolt guide (standard) without FaFix®
  • Due to 180° fitting, can be used DIN right and left

Note

  • Order code for version DIN right = 3405AFF
Technical data
Adjustable keeper (FF, FaFix®)Yes
Diode (05)Yes
Fail-unlockedYes
Break-in resistance4000 N
Height90 mm
Width20 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Material housingZinc die-cast
Latch materialZinc die-cast
Material screw-on attachmentZinc die-cast
Variants that can be ordered
Order number
Description
3405FF------E91Without striking plate, 12 V DC
3405FF------F91Without striking plate, 24 V DC
