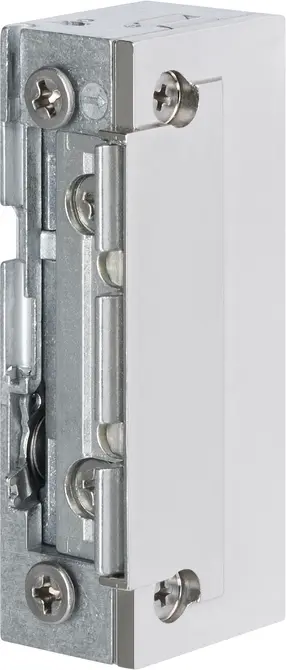

Electric strike 148ET13---Q
Product description
Model for magnetic latch locks, with mechanical unlocking (daytime unlocking) of the keeper and hold-open function (reversible locking device).
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm
- Voltage range
- Compatible with current mortise locks
- Compatible with existing ProFix® 2 striking plates
- Optimal latch ramps for gentle interaction with the latch bolt
- Symmetrical design. DIN left/right as well as horizontal applicable
| Adjustable keeper (FF, FaFix®) | Yes |
| Mechanical unlocking (E) | Yes |
| Fail-locked | Yes |
| Hold-open function | Yes |
| Weak latch bolt spring | Yes |
| For magnetic latch bolt lock | Yes |
| Noise reduction | Yes |
| Break-in resistance | 3750 N |
| Height | 66 mm |
| Width | 20.1 mm |
| Depth | 25.5 mm |
| FaFix® adjustment range | 3 mm |
| Latch bolt engaging depth | 5.5 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Load cycles for in-plant test | 250000 |
| Suitable for fire doors | No |
