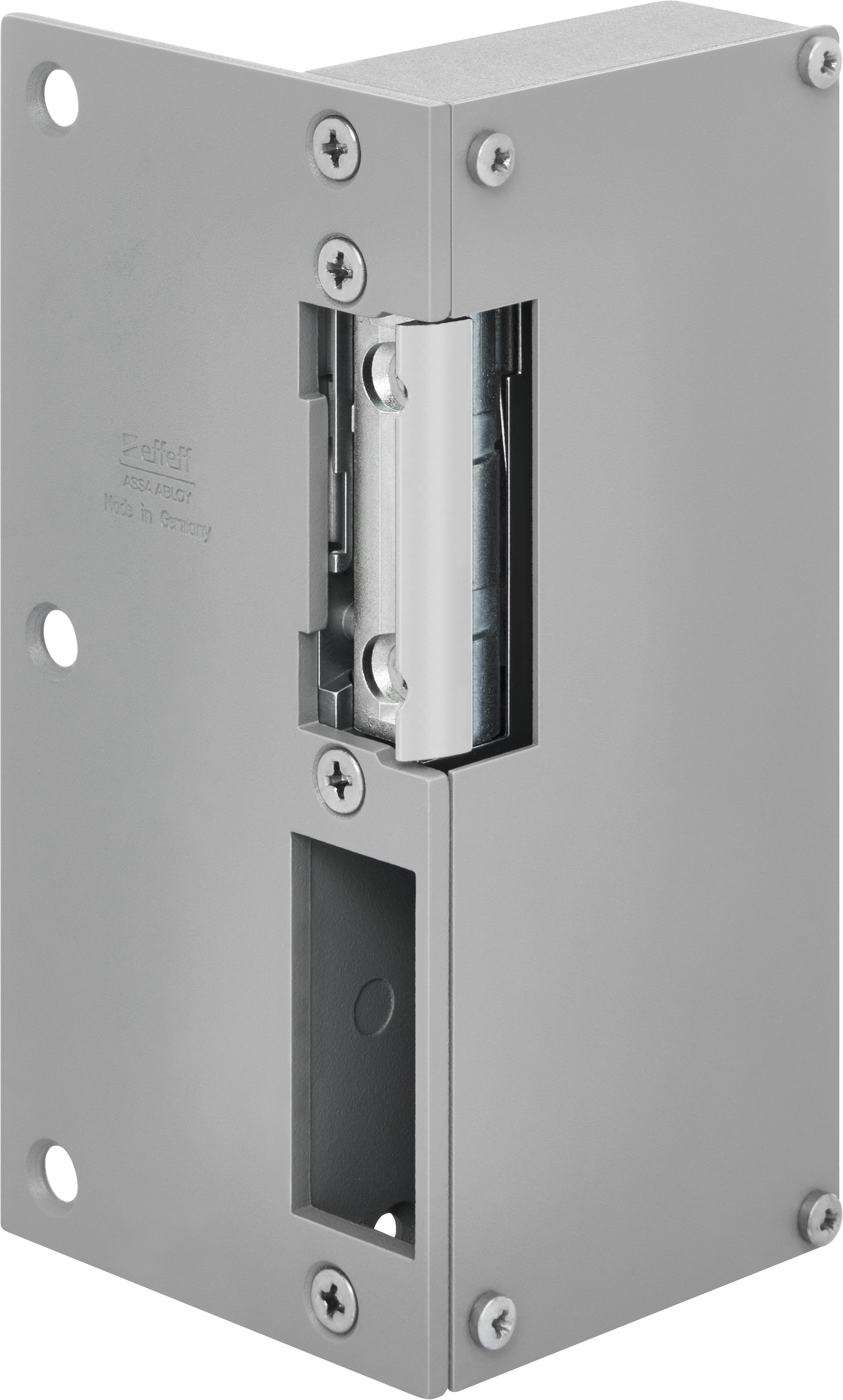

Electric strike in surface-mounted housing 118----A3002

Overview of Advantages

  • Possible adjustment for DIN left/right use
  • Radius keeper, FaFix®, adjustable by 3 mm
  • Voltage range

Scope of delivery

  • 1 electric strike in surface-mounted casing
Technical data
Adjustable keeper (FF, FaFix®)Yes
Fail-lockedYes
Break-in resistance3750 N

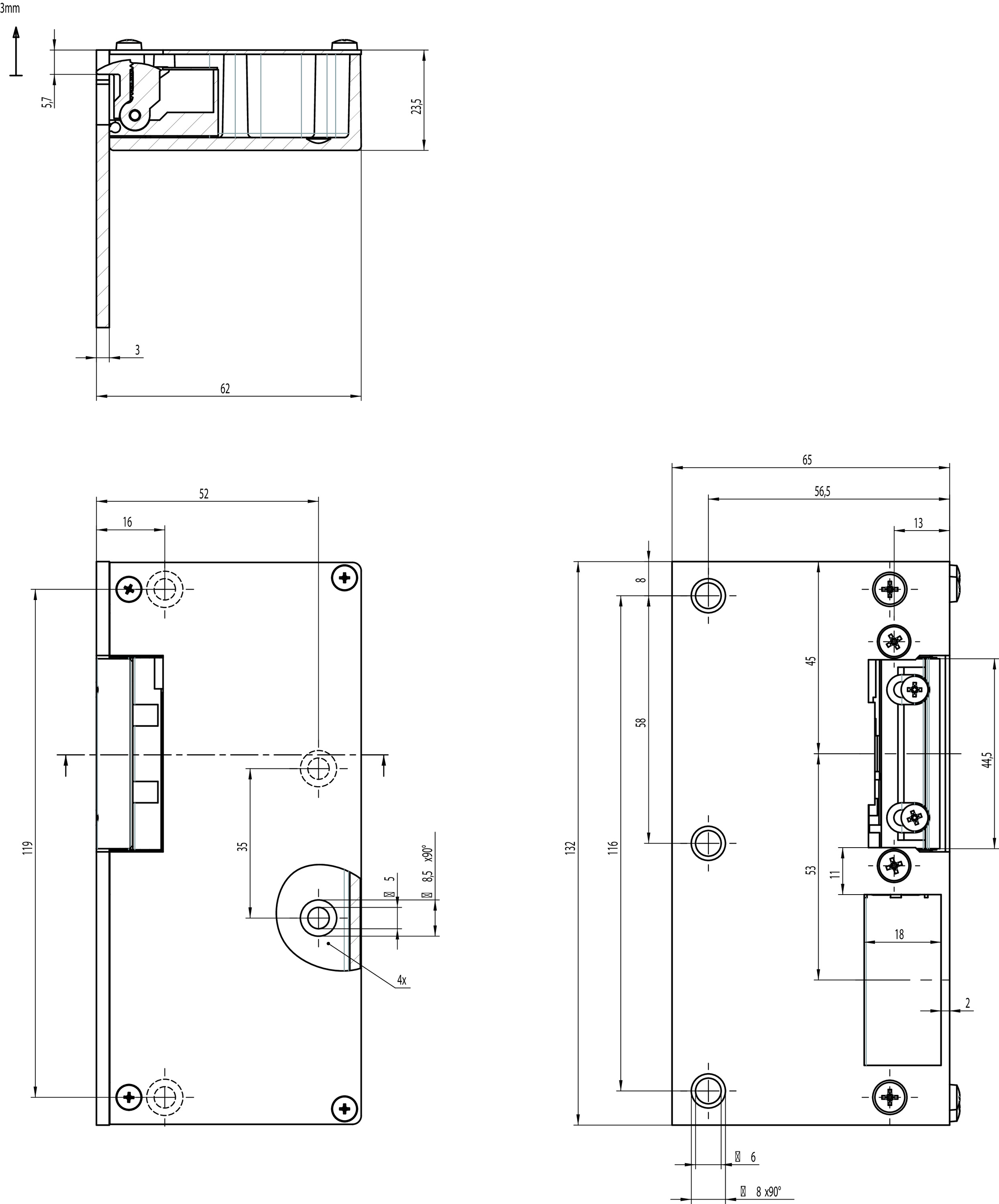

Height132 mm
Width62 mm
Depth65 mm
FaFix® adjustment range3 mm
Latch bolt engaging depth5.5 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Load cycles for in-plant test250000
Suitable for fire doorsNo
Variants that can be ordered
Order number
Description
118----A3002A71Without strike plate, 10-24 V AC/DC, universal, grey
