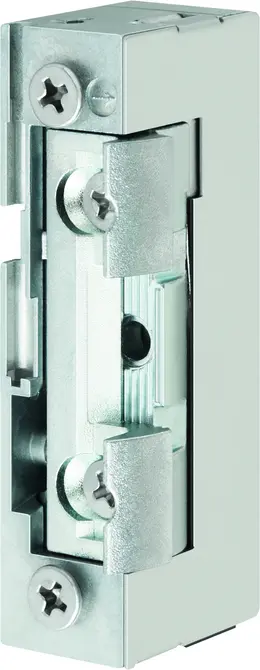

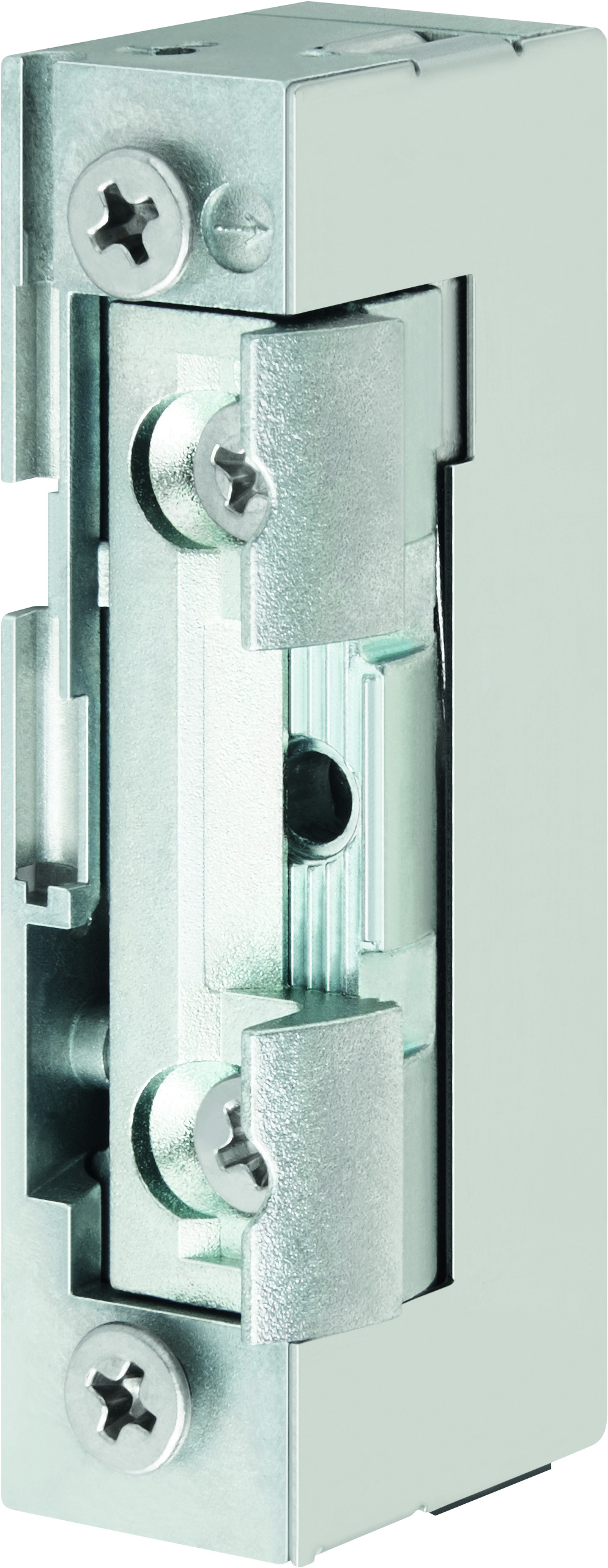

Electric strike 138530
Without strike plate
Product description
Model with basic equipment suitable for use with roller bolt locks or latch bolt slides. This model also features screw holes which can be offset 1 mm.
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm
- Voltage range
- Compatible with current mortise locks
- Optimal latch ramps for gentle interaction with the latch bolt
- Symmetrical design. DIN left/right as well as horizontal applicable
Scope of delivery
- 1 piece electric strike
| Fail-unlocked | Yes |
| Drill hole offset by 1 mm | Yes |
| Rated operating voltage tolerance range | ± 10 % |
| Load cycles for in-plant test | 250000 |
| Installation position | Vertical and horizontal |
| Operating temperature range | -15 °C to +40 °C |
| Break-in resistance | 3750 N |
| Height | 66 mm |
| Suitable for fire doors | No |
| Depth | 26 mm |
| Latch bolt engaging depth | 5.5 mm |
| Width | 16 mm |
| FaFix® adjustment range | 3 mm |
| Order number | Description |
|---|---|
| 138.530-----E91 | Without striking plate, 12 V DC |
| 138.530-----F91 | Without striking plate, 24 V DC |
