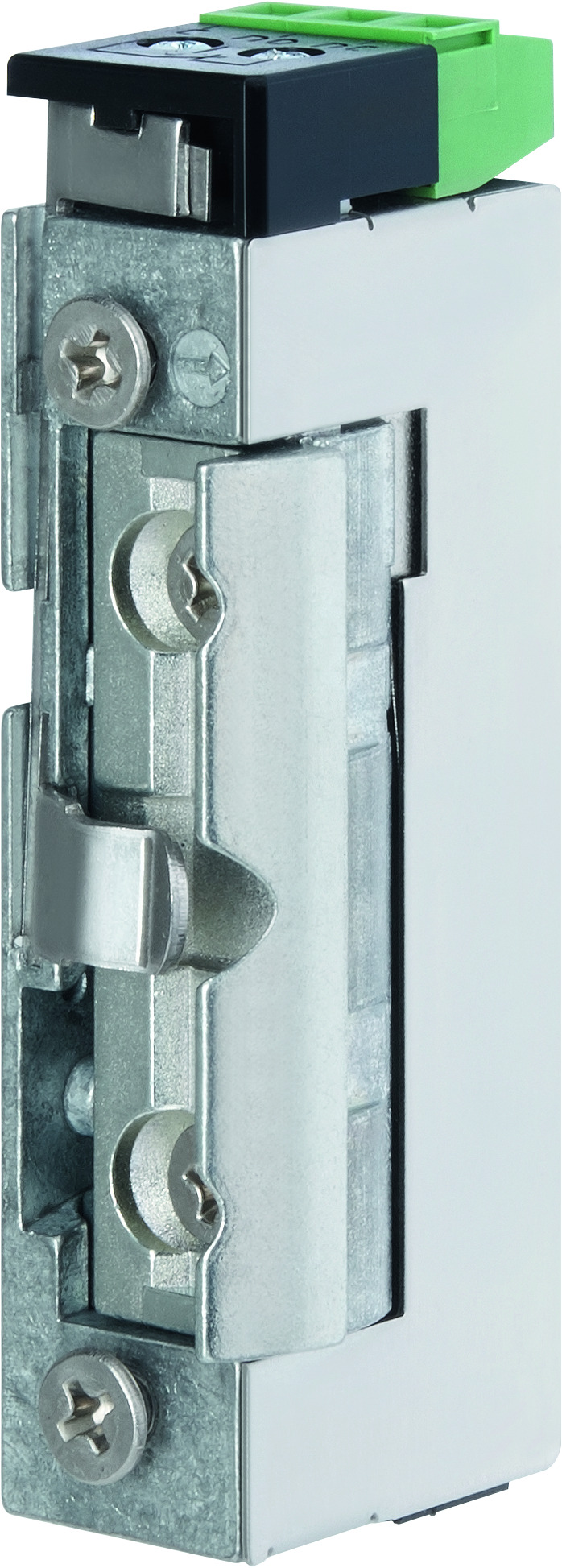

Electric strike 138.504
Without strike plate
Product description
Model with monitoring contact as potential-free changeover contact and screw holes which are offset by 1 mm towards opening side.
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm
- Voltage range
- Compatible with current mortise locks
- Optimal latch ramps for gentle interaction with the latch bolt
- Symmetrical design. DIN left/right as well as horizontal applicable
Scope of delivery
- 1 piece electric strike
| Fail-unlocked | Yes |
| Drill hole offset by 1 mm | Yes |
| Rated operating voltage tolerance range | ± 10 % |
| Switching capacity - monitoring contact | 24 V / 1 A |
| Load cycles for in-plant test | 250000 |
| Installation position | Vertical and horizontal |
| Operating temperature range | -15 °C to +40 °C |
| Break-in resistance | 3750 N |

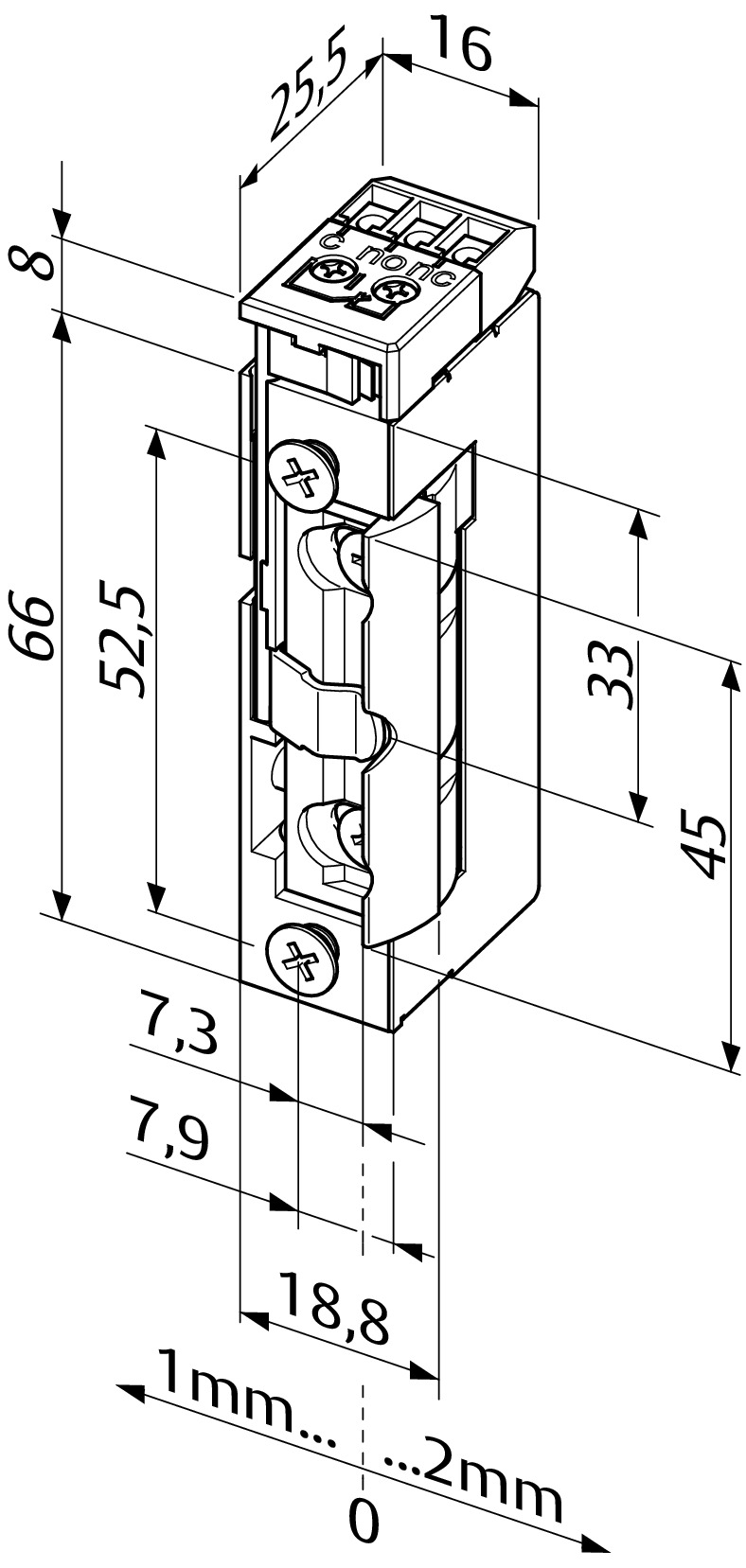

| Height | 74 mm |
| Suitable for fire doors | No |
| Depth | 26 mm |
| Latch bolt engaging depth | 5.5 mm |
| Width | 16 mm |
| FaFix® adjustment range | 3 mm |
| Order number | Description |
|---|---|
| 138.504-----E91 | Without striking plate, 12 V DC |
| 138.504-----F91 | Without striking plate, 24 V DC |
