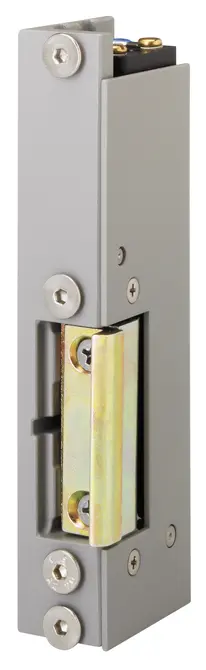

Electric strike 131FF

Product description

Electric strikes for fire doors with an exceptionally sturdy design.

Model with basic equipment and adjustable FaFix® latch

Can also be used as a security electric strike.

Overview of Advantages

  • Reliable unlocking under preload
  • Horizontal fitting permitted
  • Sturdy design

Note

  • Please refer to the information provided from the Deutsches Institut für Bautechnik (German Institute for Structural Engineering).
Technical data
Adjustable keeper (FF, FaFix®)Yes
Fail-lockedYes
Break-in resistance10000 N

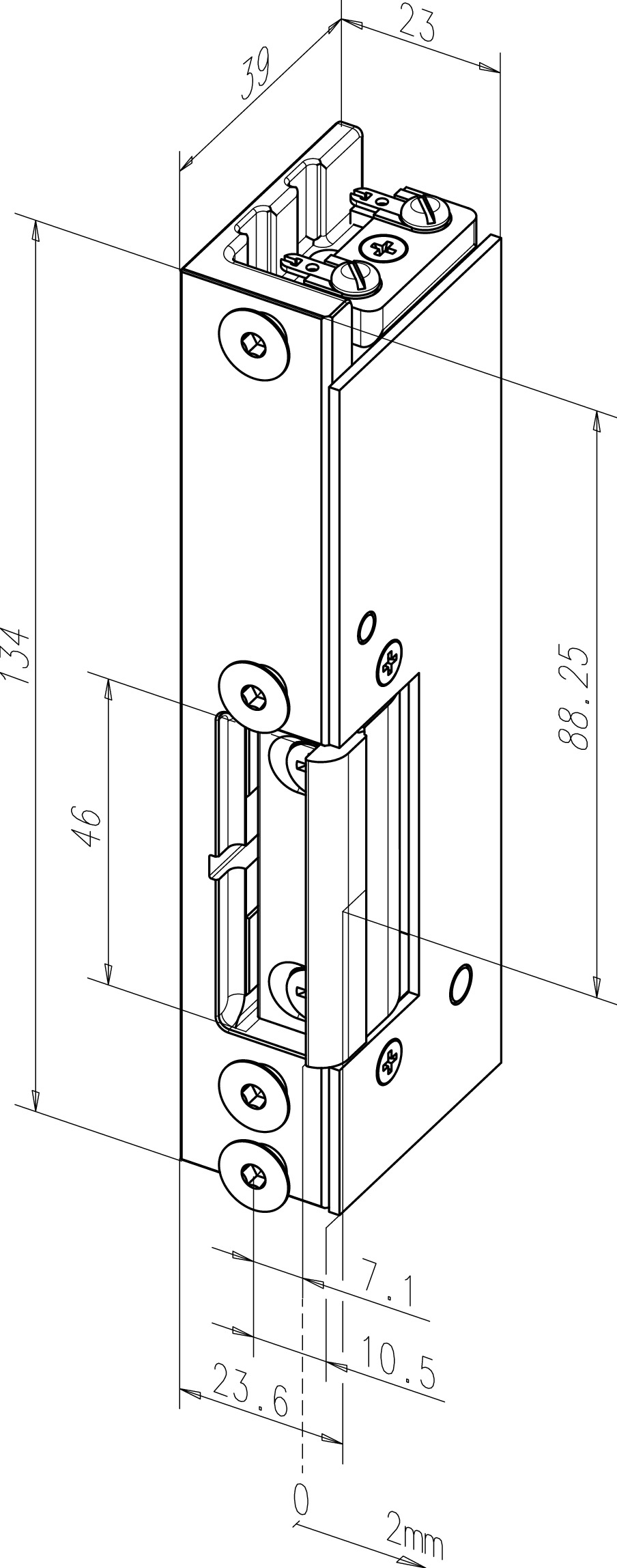

Height134 mm
Width23 mm
Depth39 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingSteel precision-casting
Latch materialSteel precision-casting
Material screw-on attachmentSteel
Certified in compliance withEN 14846:2008
Variants that can be ordered
Order number
Description
131FF-------E14Without strike plate, 12 V AC/DC, DIN left
131FF-------E15Without strike plate, 12 V AC/DC, DIN right
131FF-------F14Without strike plate, 24 V AC/DC, DIN left
131FF-------F15Without strike plate, 24 V AC/DC, DIN right
131FF-------E34Without strike plate, 12 V DC eE, DIN left
131FF-------E35Without strike plate, 12 V DC eE, DIN right
131FF-------F34Without strike plate, 24 V DC eE, DIN left
131FF-------F35Without strike plate, 24 V DC eE, DIN right
