Electric strike 131.81 (RRAKRR)
Product description

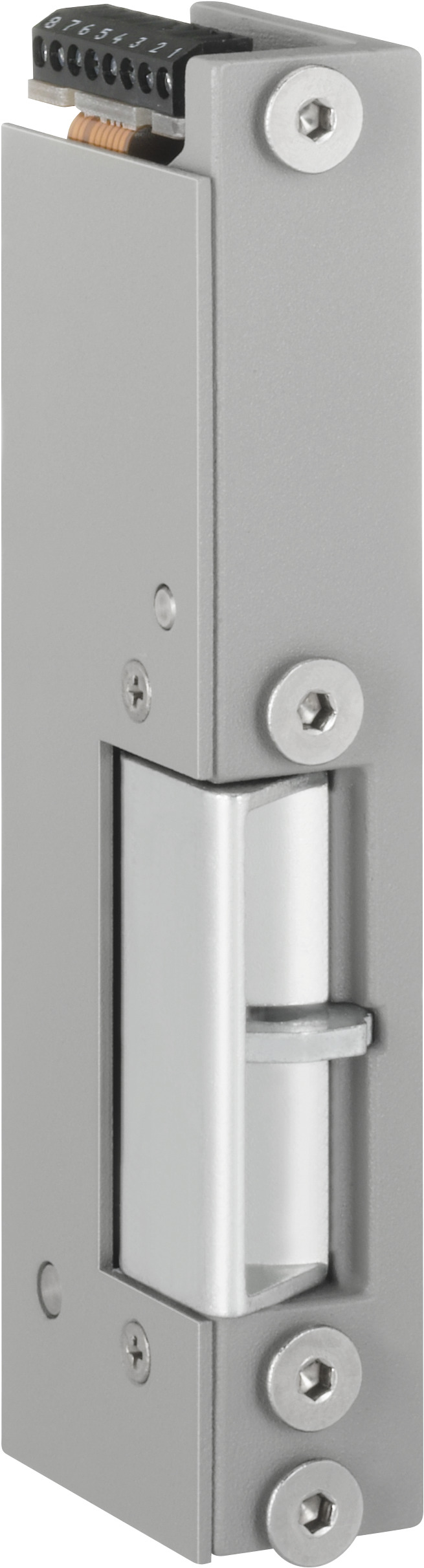

Image shows DIN left.
Overview of Advantages
- Small symmetrical construction shape
- Unlocking under pre-load with 100% holding force
- Low current consumption 100 mA (24 V), 200 mA (12 V)
- Adjustable via Fix grooves in housing
- Monitoring contact integrated in the housing
- Approved for installation as secondary locking system on fire doors
Monitoring contact (RR) | Yes |
Diode (05) | Yes |
Fail-locked | Yes |
Armature contact (AK/RR) | Yes |
Certified in compliance with | EN 14846:2008 |
Break-in resistance | 15000 N |
Height | 134 mm |
Width | 23.1 mm |
Depth | 39 mm |
Operating temperature range | -15 °C to +40 °C |
Installation position | Vertical and horizontal |
Material housing | Steel precision-casting |
Latch material | Steel |
Order number | Description |
---|---|
131.81------E35 | Without striking plate, 12 V DC electric unlocking |
131.81------F35 | Without striking plate, 24 V DC electric unlocking |
