Screw-on mounting plates

M4-thread; 2 pieces

  • ArtNo: SET-LA-M4----00
  • EAN: 4042203190085

Product description

For flush mounting of striking plates especially in steel frames

Scope of delivery

  • 2 pieces
Technical data
VersionCan be selected*
Threaded holeM4
Downloads for Product

General

Product sheet Screw-on mounting plates (PDF)

Medias

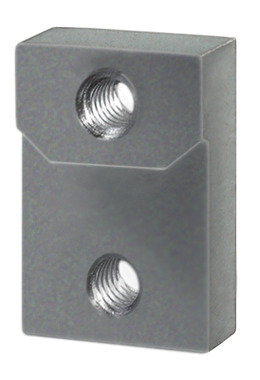

Product image (JPG, 38 KB)
Product image (TIF, 2.14 MB)

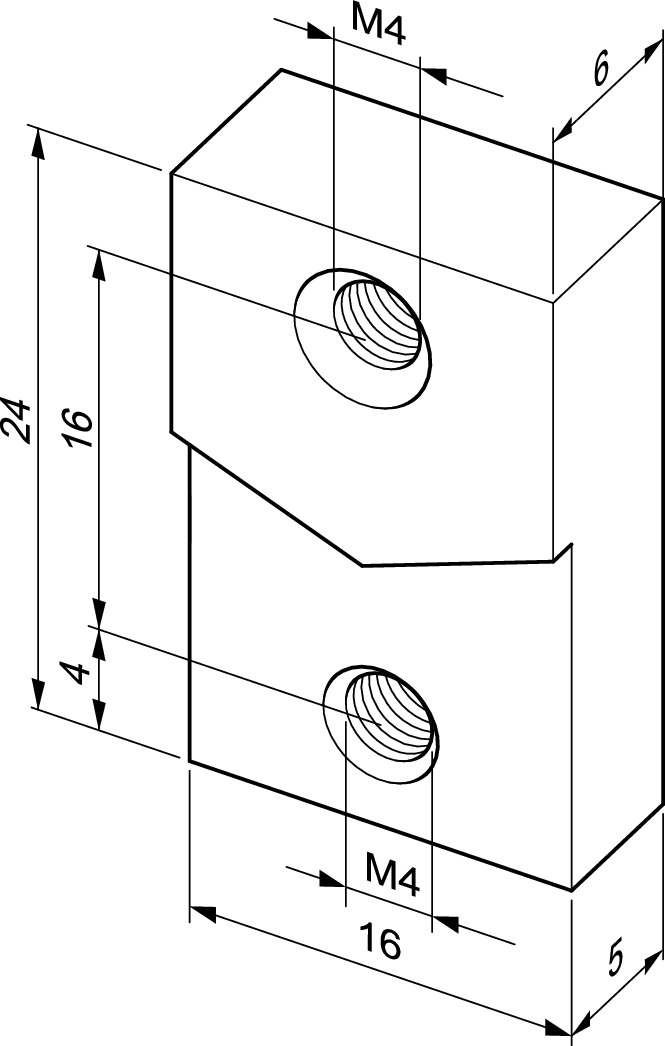

Technical drawing (JPG, 85 KB)
Technical drawing (EPS, 2.16 MB)
