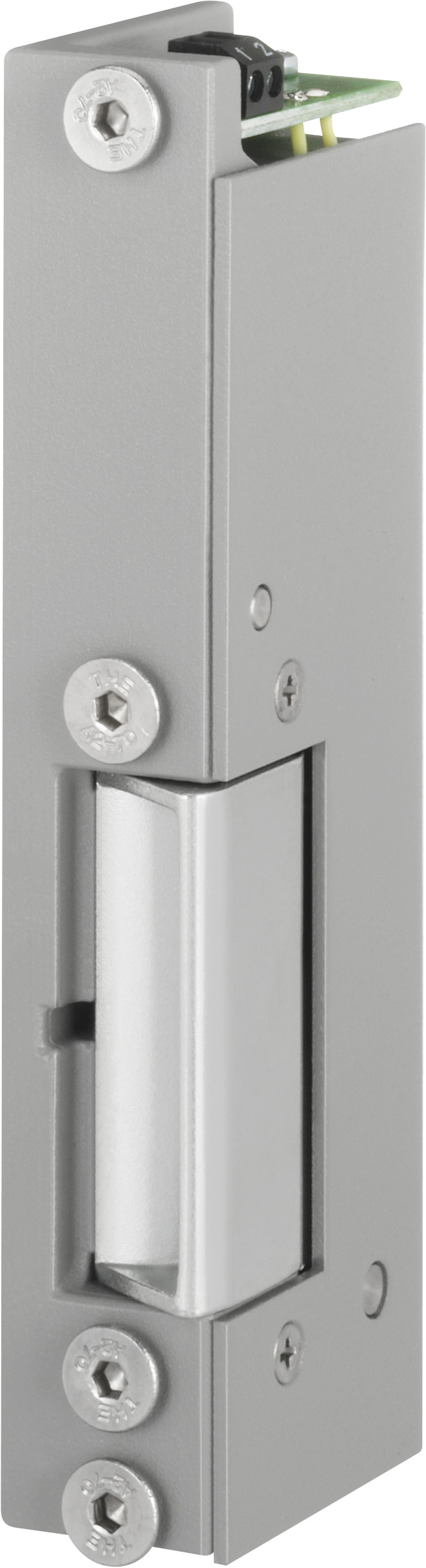

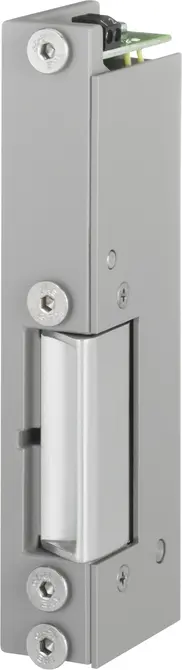

Electric strike 331U
Product description
Model with basic equipment.
The 331U Model Series is guaranteed to work reliably in interlock systems, on soundproofed doors and on doors where pressure on the keeper is expected due to the structural design.
Overview of Advantages
- Sturdy design for demanding requirements
- Recovery diode
- Reliable unlocking under preload
Note
- Can only be used as a supplementary locking device on fire doors
Diode (05) | Yes |
Fail-unlocked | Yes |
Break-in resistance | 7500 N |

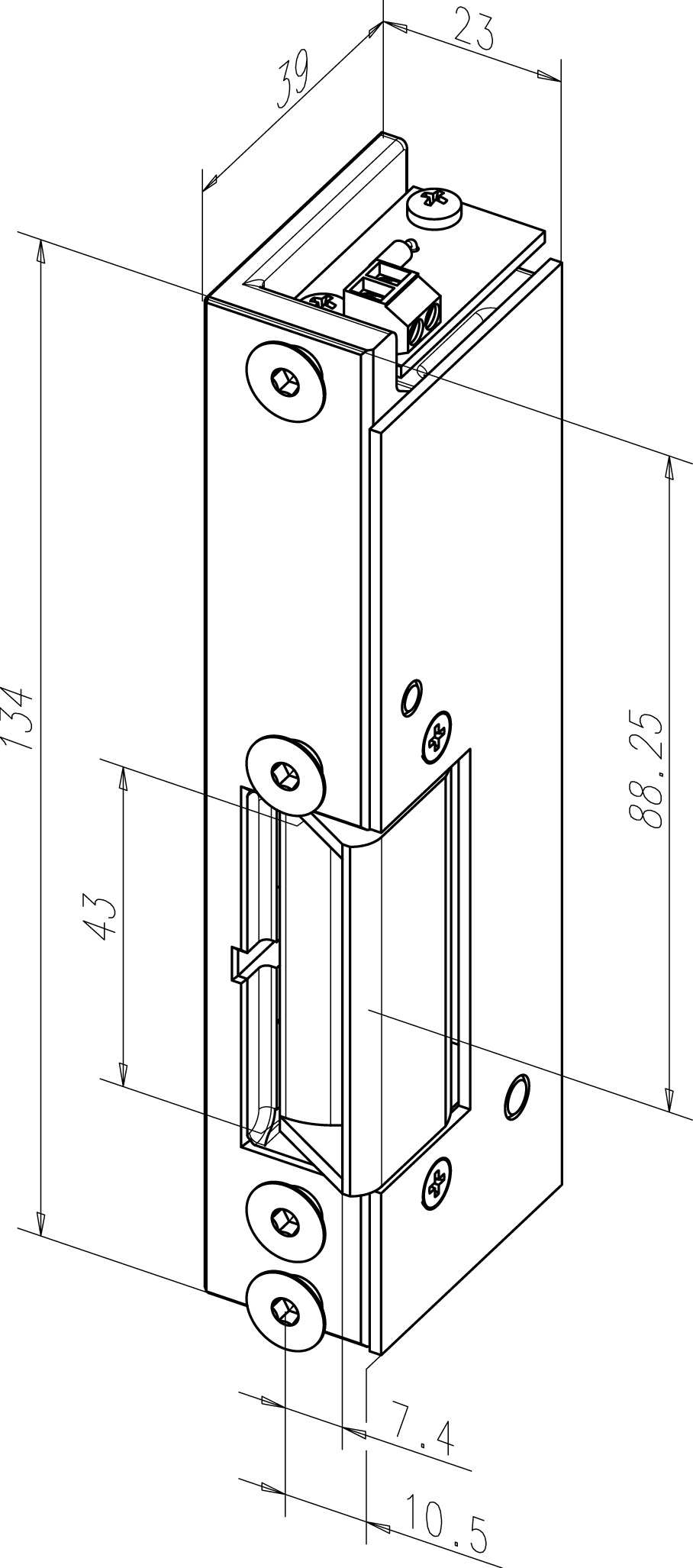

Height | 134 mm |
Width | 23 mm |
Depth | 39 mm |
Operating temperature range | -15 °C to +40 °C |
Installation position | Vertical and horizontal |
Order number | Description |
---|---|
331U--------E94 | Without strike plate, 12 V DC, DIN left |
331U--------E95 | Without strike plate, 12 V DC, DIN right |
331U--------F94 | Without strike plate, 24 V DC, DIN left |
331U--------F95 | Without strike plate, 24 V DC, DIN right |
