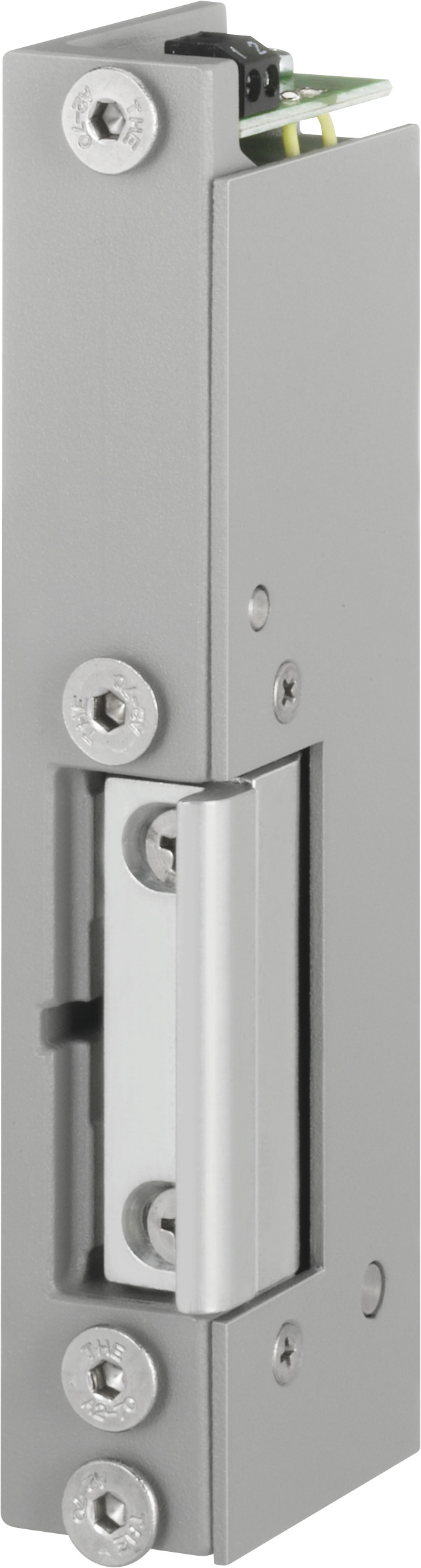

Electric strike 331UF

Product description

Model with adjustable FaFix® latch which features keeper alignment.

The 331UF series is guaranteed to work reliably in interlock systems, on soundproofed doors and on doors where pressure on the keeper is expected due to the structural design.

Overview of Advantages

  • Sturdy design for demanding requirements
  • Recovery diode
  • Reliable unlocking under preload
  • FaFix® latch with 2 mm adjustment range

Note

  • Can only be used as a supplementary locking device on fire doors
Technical data
Adjustable keeper (FF, FaFix®)Yes
Diode (05)Yes
Fail-unlockedYes
Break-in resistance5000 N
Height134 mm
Width23 mm
Depth39 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Variants that can be ordered
Order number
Description
331UF-------E94Without strike plate, 12 V DC, DIN left
331UF-------E95Without strike plate, 12 V DC, DIN right
331UF-------F94Without strike plate, 24 V DC, DIN left
331UF-------F95Without strike plate, 24 V DC, DIN right
